6.4.2 Setting up Forming Shields for Roll Conditioner
On a machine equipped with a roll conditioner, the forming shields shape and control the distribution of conditioned crop.
$
%

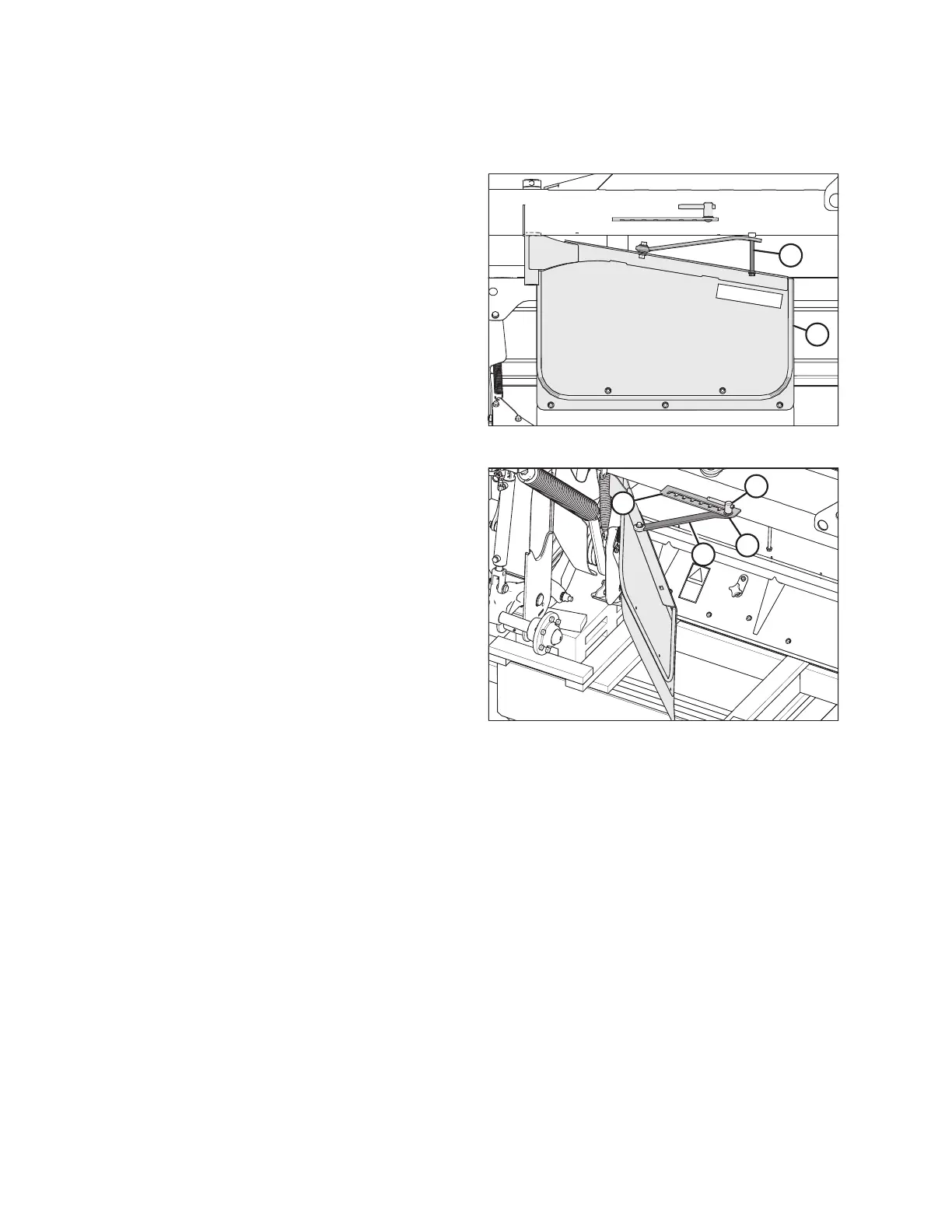

Figure 6.27: Left Forming Shield
1. Remove and discard bolt (A) securing forming shield (B)
to frame.
2. Swivel shield (B) to the open position.
$
%
&
'
Figure 6.28: Adjuster Bar
3. Rotate clamp (B) until you can remove bolt (C).
4. Swing adjuster bar (A) and align with a hole on carrier
plate (D).
5. Install bolt through adjuster bar (A) and carrier plate (D).
Install clamp (B) onto bolt. Tighten clamp until shield does
not move.
6. Repeat Steps 1, page 120 to 5, page 120 for opposite
shield.
COMPLETING ROTARY DISC PULL-TYPE ASSEMBLY
