215585 119 Revision A

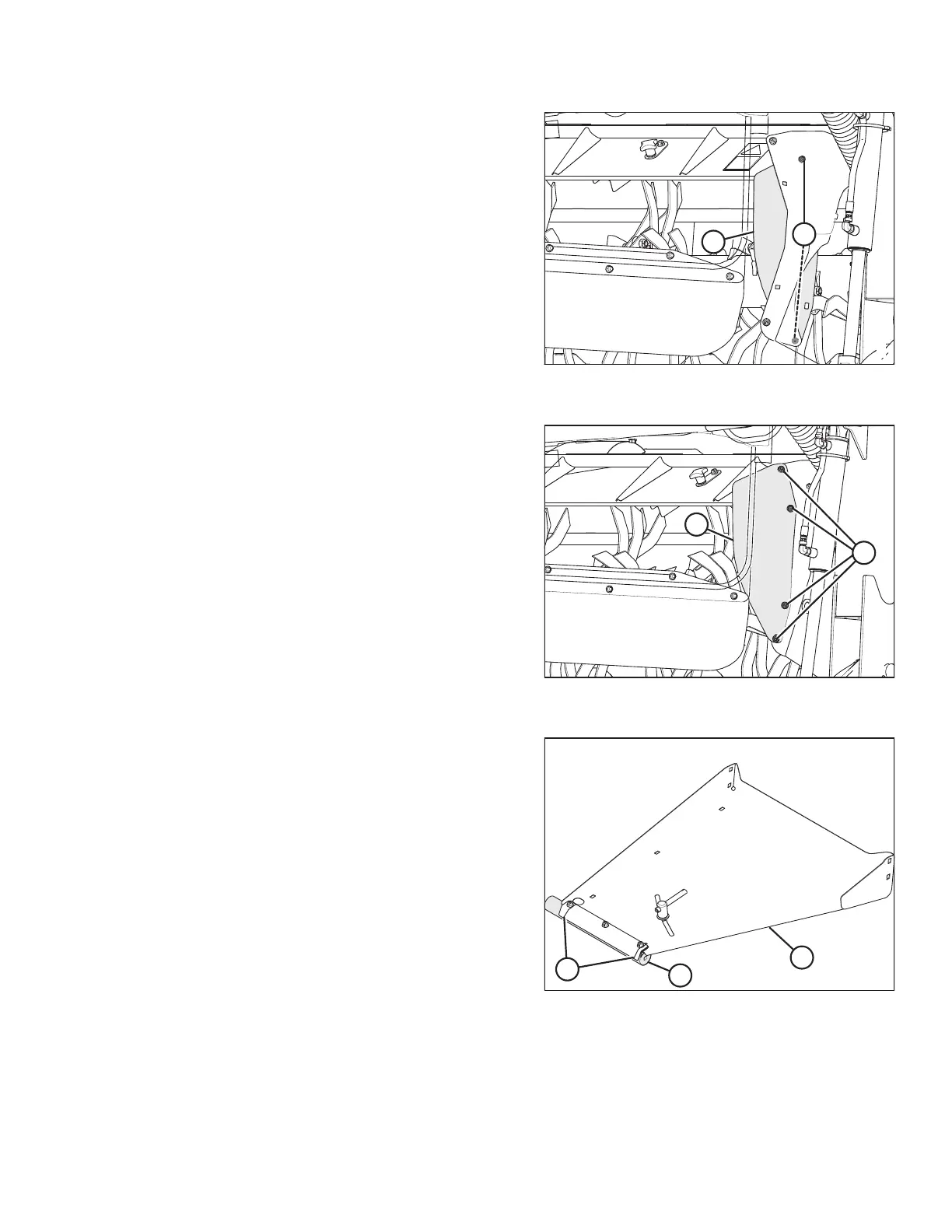

Figure 6.24: Right Deflector Shield Shown – Left
Deflector Shield Opposite
15. Remove two M10 carriage bolts (B) securing left
deflector (A) in shipping position. Repeat for opposite
deflector.
Figure 6.25: Right Deflector Shield Shown – Left
Deflector Shield Opposite
16. Reposition deflector (A) so that holes align with the fixed
shield, and secure with four M10 carriage bolts (B) and hex
head flange nuts.
Figure 6.26: Forming Shield Curtain
17. Remove shipping wires (A) securing curtains (B) to
covers (C) and allow curtains to unfold before
operating machine.
COMPLETING ROTARY DISC PULL-TYPE ASSEMBLY
