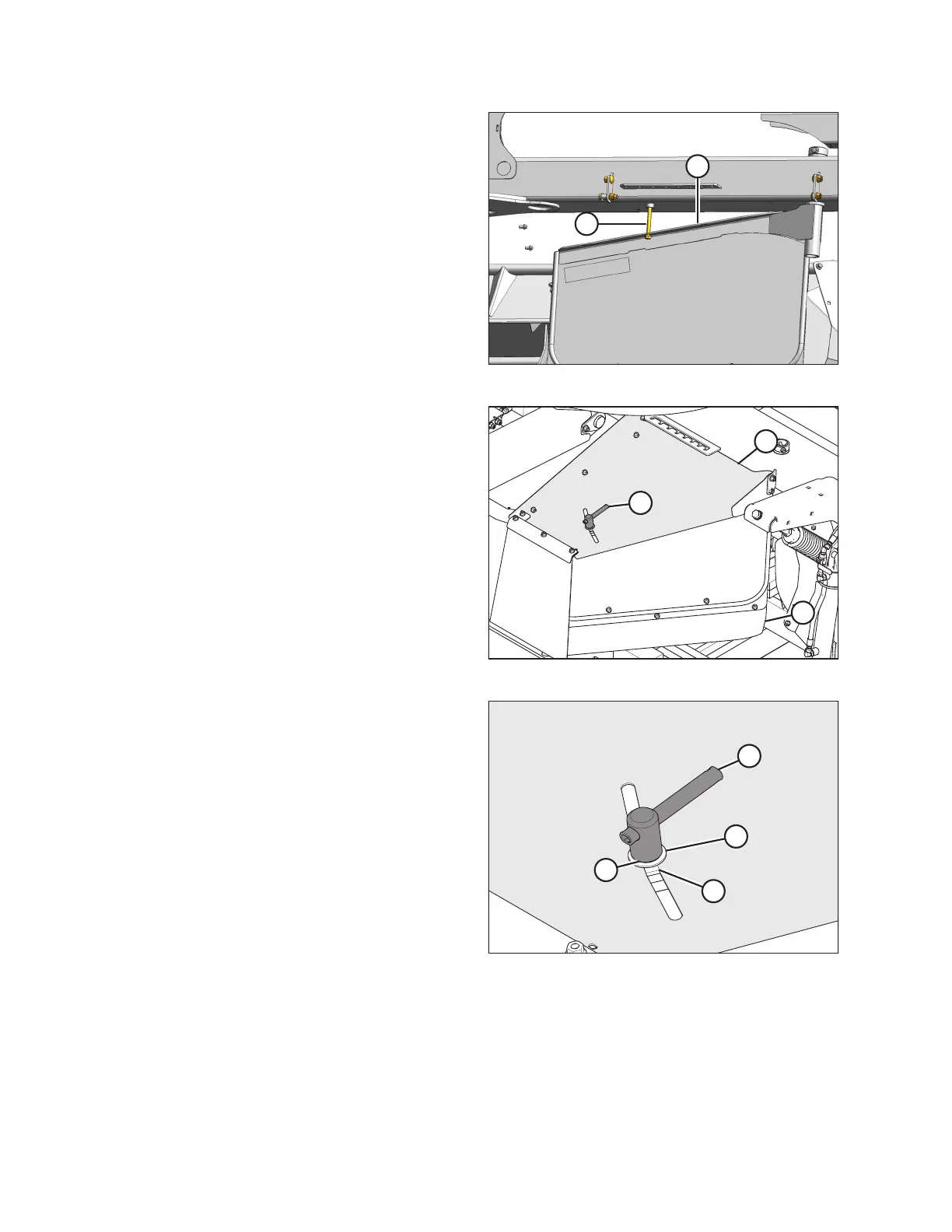

Figure 6.21: Side Deflector Assembly
10. Remove and discard bolt (A) securing deflector (B)
to frame.
$
%
&
Figure 6.22: Side Deflector Assembly
11. Remove handle (A), washers, and bolt from shield (B).
12. Swing deflector (C) under outboard shield (B) so that
handle can be installed into the deflector and shield.
$
%
&
'
Figure 6.23: Deflector Adjustment
13. Install carriage bolt (A), washer (B), spring washer (C), and
handle (D) as shown.
14. Position deflector so handle (D) is approximately centered
in slot, and tighten handle.
COMPLETING ROTARY DISC PULL-TYPE ASSEMBLY
