215585 127 Revision A
6.7 Removing Rotary Disc Pull-Type from Shipping Pallet – No Transport
Installed
A shipping pallet is strapped to the pull-type and must be removed before delivery to the customer.
NOTE:
If you have the transport system, refer to 6.8 Removing Rotary Disc Pull-Type from Shipping Pallet – Transport Installed,
page 128 for instructions.

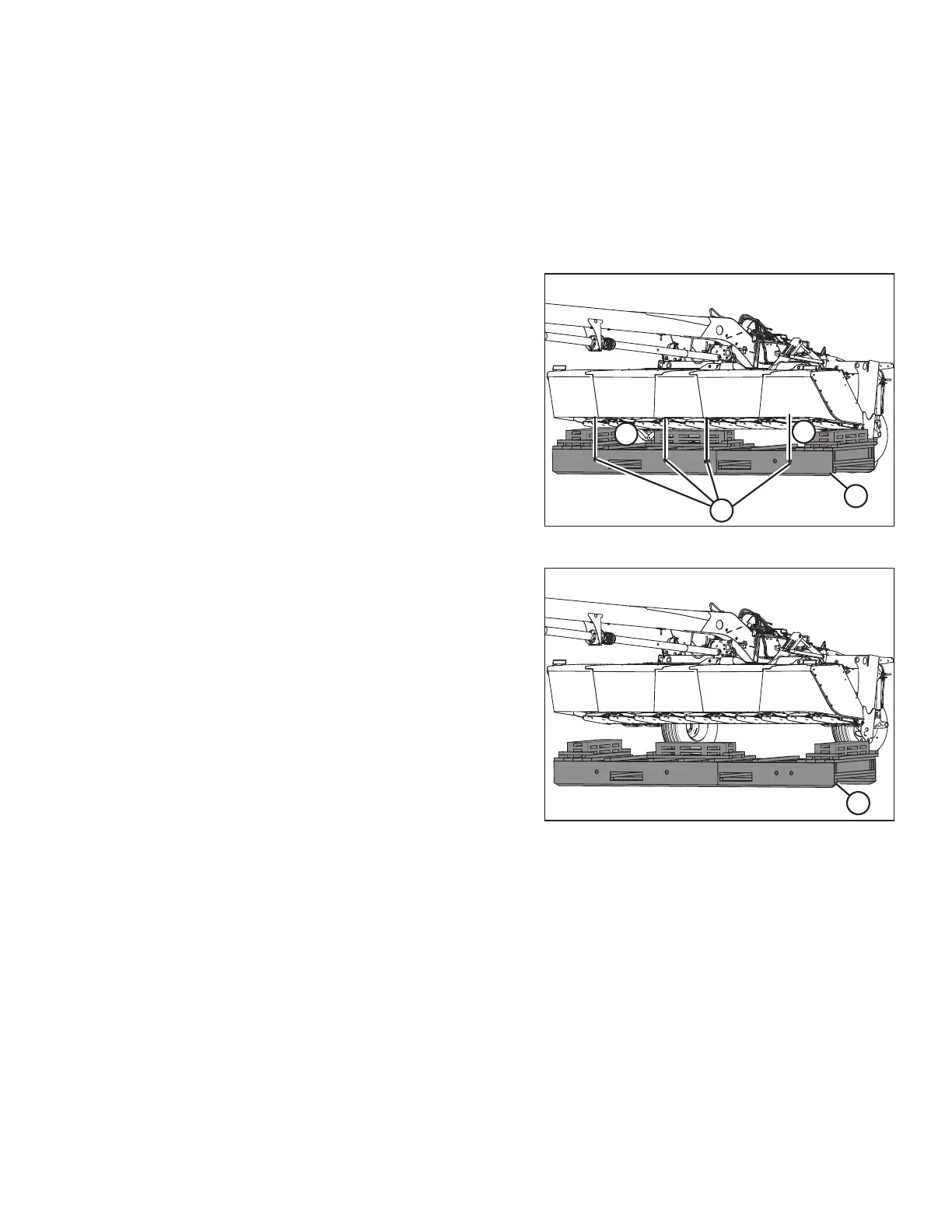

Figure 6.45: Strapping
1. Cut strapping (B) securing cutterbar to pallet (C).
2. Place forks from lifting device at openings (A). Spread them
as far apart as possible to spread the load out.
3. Lift rotary disc pull-type high enough that the pallet can be
removed.
Figure 6.46: Removing Shipping Pallet
4. Use a chain or forklift to remove shipping pallet (A) from
underneath the rotary disc pull-type.
5. Lower the rotary disc pull-type to the ground.
COMPLETING ROTARY DISC PULL-TYPE ASSEMBLY
