MacDon R113 - Preparing Slow Moving Vehicle Sign

215585 84 Revision A
4.7 Preparing Slow Moving Vehicle Sign
The slow moving vehicle sign includes decals for km/h and mph.

$

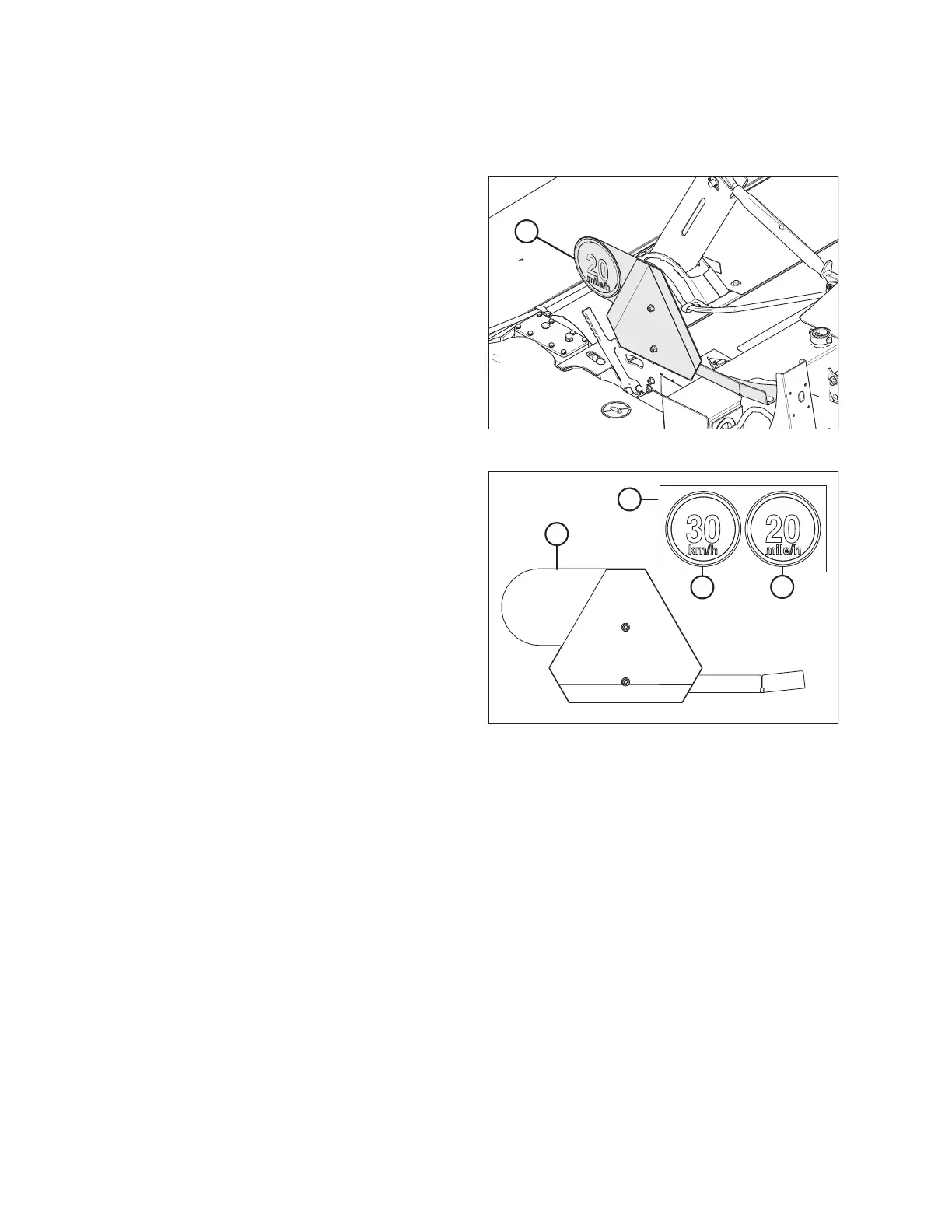

Figure 4.58: SMV Sign
1. Remove the covering from slow moving vehicle (SMV)
sign (A).

$
%
&
'
Figure 4.59: SMV Decals
2. Remove decal bag (B) taped to SMV bracket (A).
3. Choose appropriate speed decal (C) or (D) depending on
region. Orient decal as shown when installing it on the SMV
bracket.
ASSEMBLING THE ROTARY DISC PULL-TYPE – FACTORY-INSTALLED TRANSPORT
