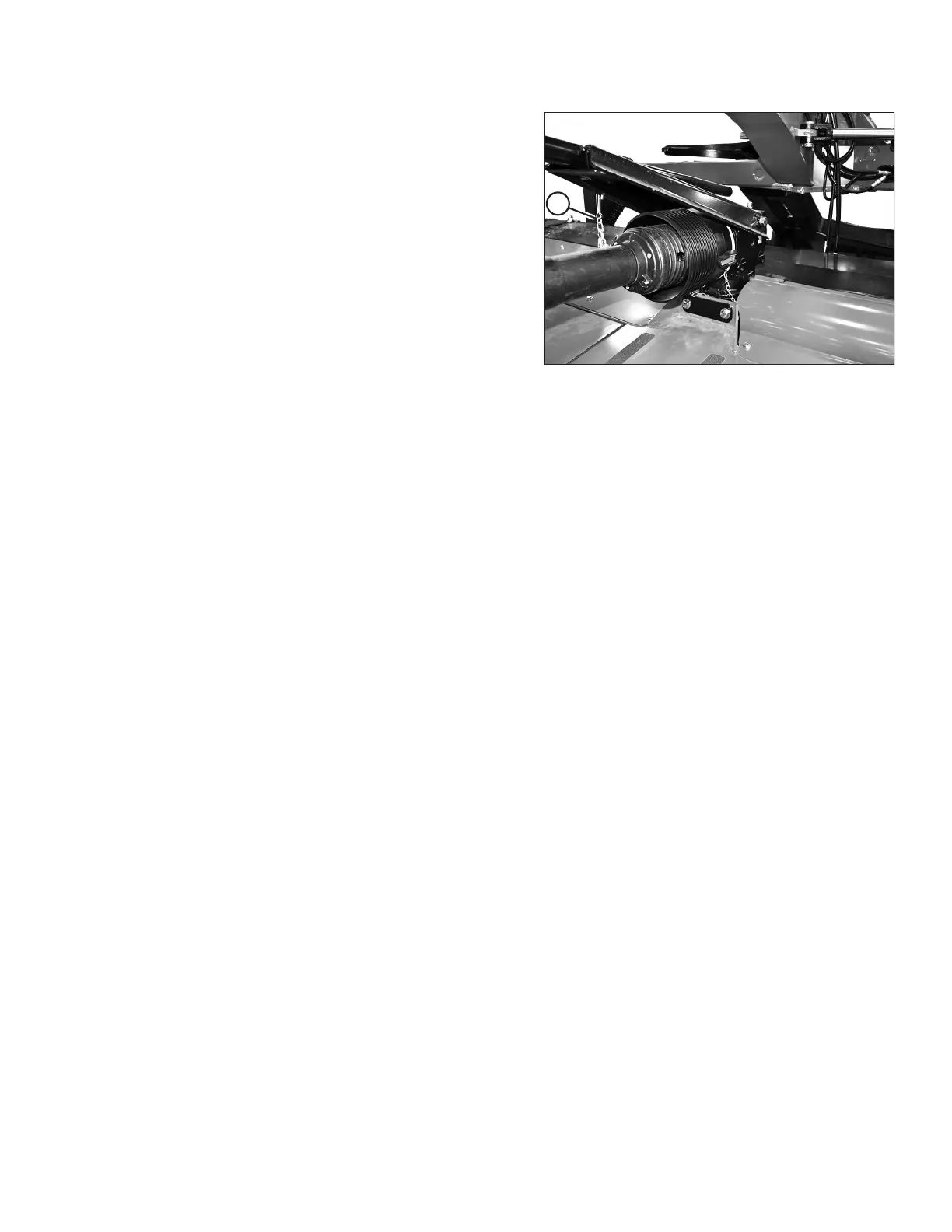

Figure 4.57: Driveline Shield
9. Attach safety chain (A) from driveline shield to slotted hole
in the steering arm.
NOTE:
Ensure chain is shortened to prevent any driveline
wrapping.
ASSEMBLING THE ROTARY DISC PULL-TYPE – FACTORY-INSTALLED TRANSPORT
