8.14 Adjusting Conditioner Baffle Position
The position of the adjustable conditioner baffle, along with the forming shields, determines the height and width of the
windrow: raising the baffle produces a fluffier, narrower windrow; lowering the baffle produces a flatter, wider windrow.

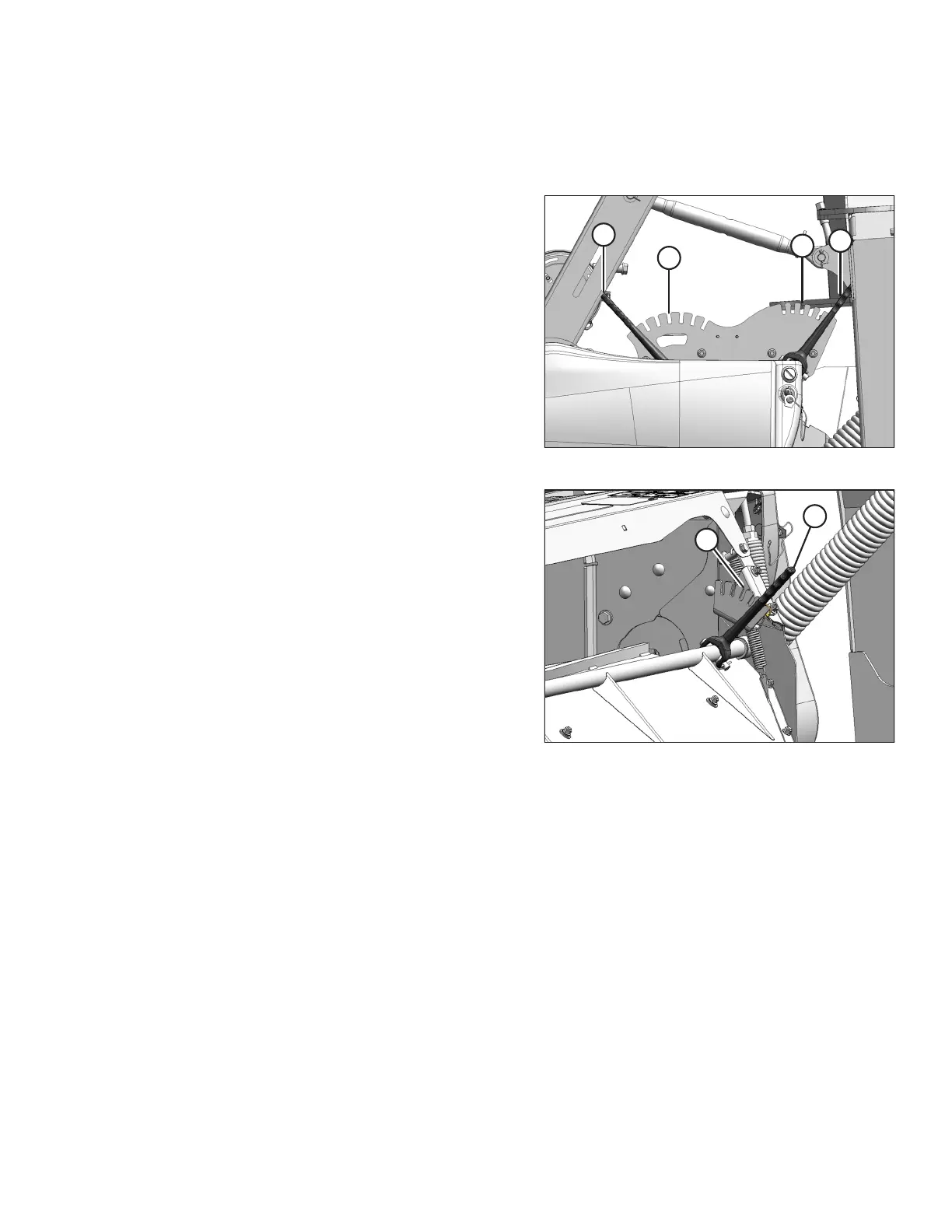

Figure 8.32: Baffle Adjusters – Finger Conditioners
1. On finger conditioners, move baffle adjustment handles (A)
and (B) to middle positions (C) and (D) on adjustment
plates.
Figure 8.33: Baffle Adjuster – Roll Conditioners
2. On roll conditioners, move baffle adjustment handle (A) to
middle position (B) on adjustment plate.
