MacDon R113 - Closing Driveshields

215585 136 Revision A
7.3 Closing Driveshields
Driveshields protect people from rotating belts and drives.
WARNING
To reduce the risk of personal injury, do NOT operate the machine without the driveshields in place and secured.
NOTE:
Images shown in this procedure are for the left driveshield—the right driveshield is similar.

$
%

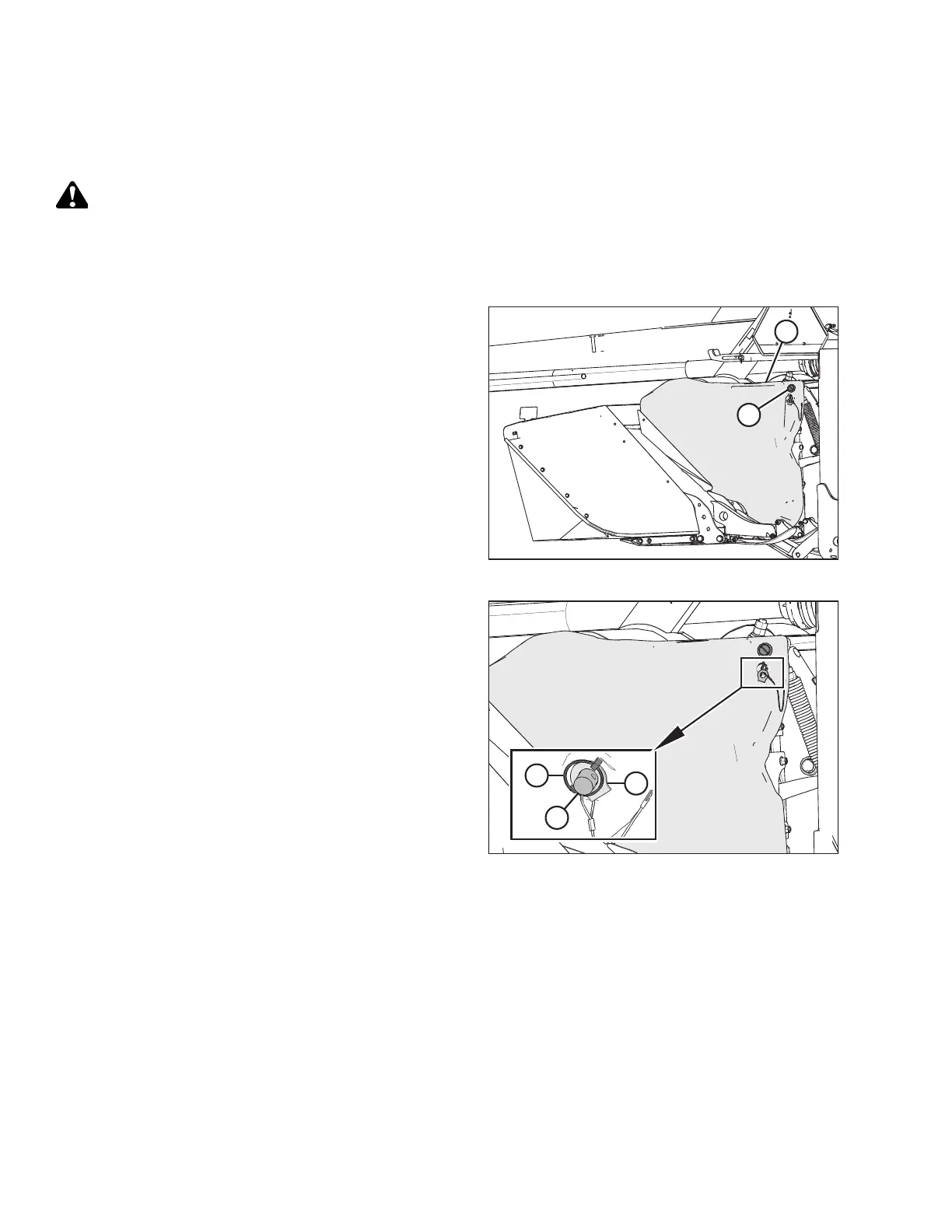

Figure 7.10: Driveshield and Latch
1. Position driveshield onto pins (if necessary).
2. Push driveshield (A) to engage latch (B).
3. Ensure the driveshield is properly secured.

$
%
&
Figure 7.11: Left Driveshield
4. Replace tool (B) and lynch pin (A) on pin (C).
