Chapter 2: Unloading Truck Shipment
To unload machines from a truck shipment safely and without damage, understand the weights and lifting requirements,
and familiarize yourself with the procedure.
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove the key
from the ignition before leaving the operator’s seat for any reason.
CAUTION
Equipment used for unloading must meet or exceed the requirements specified below. Using inadequate equipment
may result in chain breakage, vehicle tipping or machine damage.
Lifting Vehicle
Minimum capacity
3630 kg (8000 lb.)
Minimum height
4.5 m (15 ft.)
Chain
Overhead lifting quality 12.7 mm (1/2 in.)
2270 kg (5000 lb.) minimum working load
$
%
$
%

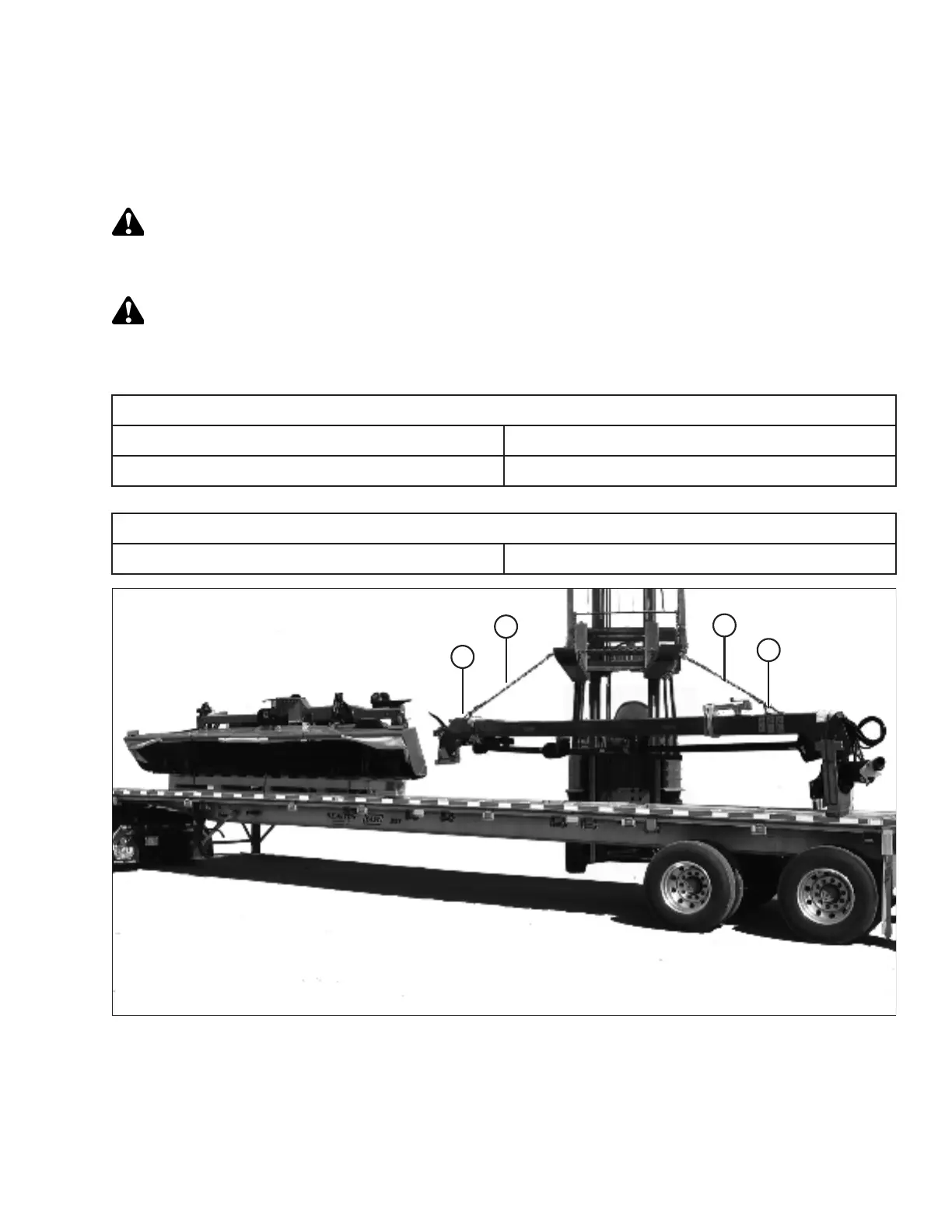

Figure 2.1: Unloading Hitch
1. Remove hauler's tie-down straps and chains.
2. Attach chain (A) to two brackets (B) on top of hitch as shown.
3. Adjust chain lengths so hitch is lifted evenly.
