MacDon R113 - Completing Transport System Installation; Removing Cover; Installing Transport Alignment Control

215585 85 Revision A
4.8 Completing Transport System Installation
This section describes the installation of the base components, the hydraulic lines and hoses, and the electrical connections
for the transport system.
4.8.1 Removing Cover

$
%

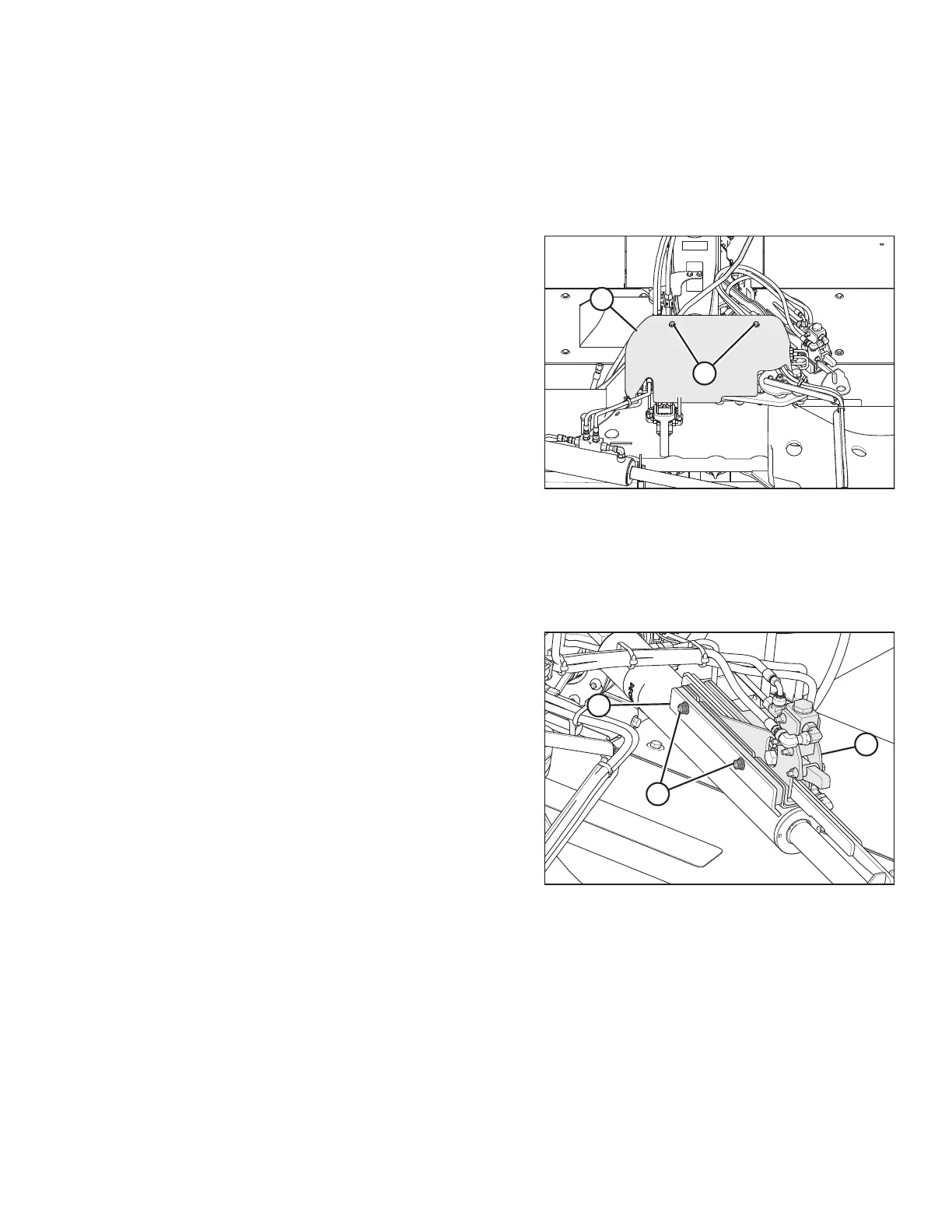

Figure 4.60: Cover – Top View
1. Remove bolts (B) from cover (A).
2. Remove cover (A).
4.8.2 Installing Transport Alignment Control
The transport alignment control ensures that the pull-type can only go into or out of transport mode from a specific
position.

$
&
%
Figure 4.61: Alignment Control – Rear Right View
1. Secure cam assembly (A) onto hitch swing cylinder plate (B)
with bolts and nuts (C). Torque nuts (C) to 58 Nm (43 lbf·ft).
NOTE:
When installing cam assembly (A), check for hose twisting.
If required, loosen hose fitting to allow hose to untwist.
Torque fitting once complete.
ASSEMBLING THE ROTARY DISC PULL-TYPE – FACTORY-INSTALLED TRANSPORT
