MacDon R113 - Attaching Clutch Driveline

215585 28 Revision A
3.5 Attaching Clutch Driveline
The clutch driveline on the carrier hitch, connects to the rotary disc pull-type drive gearbox.
IMPORTANT:
If a conditioner swap is required before delivery to the customer, swap the conditioner BEFORE attaching the clutch
driveline. For conditioner swap instructions, refer to the pull-type technical manual. After swapping the conditioner, attach
the clutch driveline then follow the remaining chapters in this manual in sequential order to complete the setup.

$
%

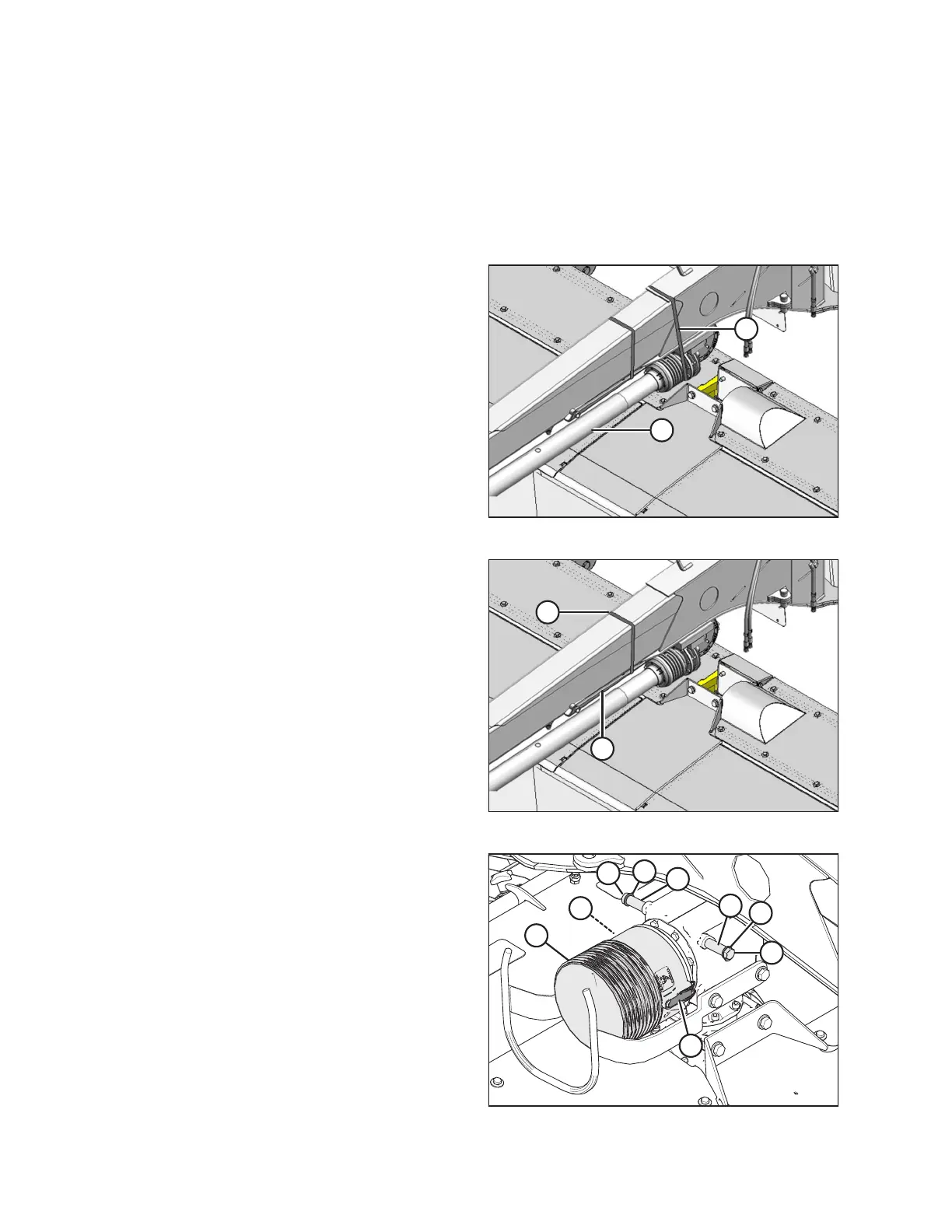

Figure 3.47: Driveline Strapping
1. Support driveline (B) and remove strapping (A) securing it
to hitch. Remove all packing material.

$
%
Figure 3.48: Steering Arm Strapping
2. Remove strapping (A) and packing material securing
steering arm (B) to hitch. Pivot steering arm to the side
for now.
NOTE:
Strapped contents may be under pressure.

$
%
&
$
%
&
'
'
(
Figure 3.49: Driveline Shield
3. At the top of the upper rear swivel gearbox, remove two
bolts (A) with washers (B) and spacers (C). Retain hardware.
4. Undo latches (D) securing driveline shield (E) to the upper
rear swivel gearbox and remove the shield. If necessary, use
a screwdriver or equivalent to undo latches (D).
5. Rotate the upper rear swivel gearbox until the input shaft is
facing towards the driveline.
ASSEMBLING THE ROTARY DISC PULL-TYPE – WITH OR WITHOUT THE DEALER-INSTALLED TRANSPORT
