215585 29 Revision A

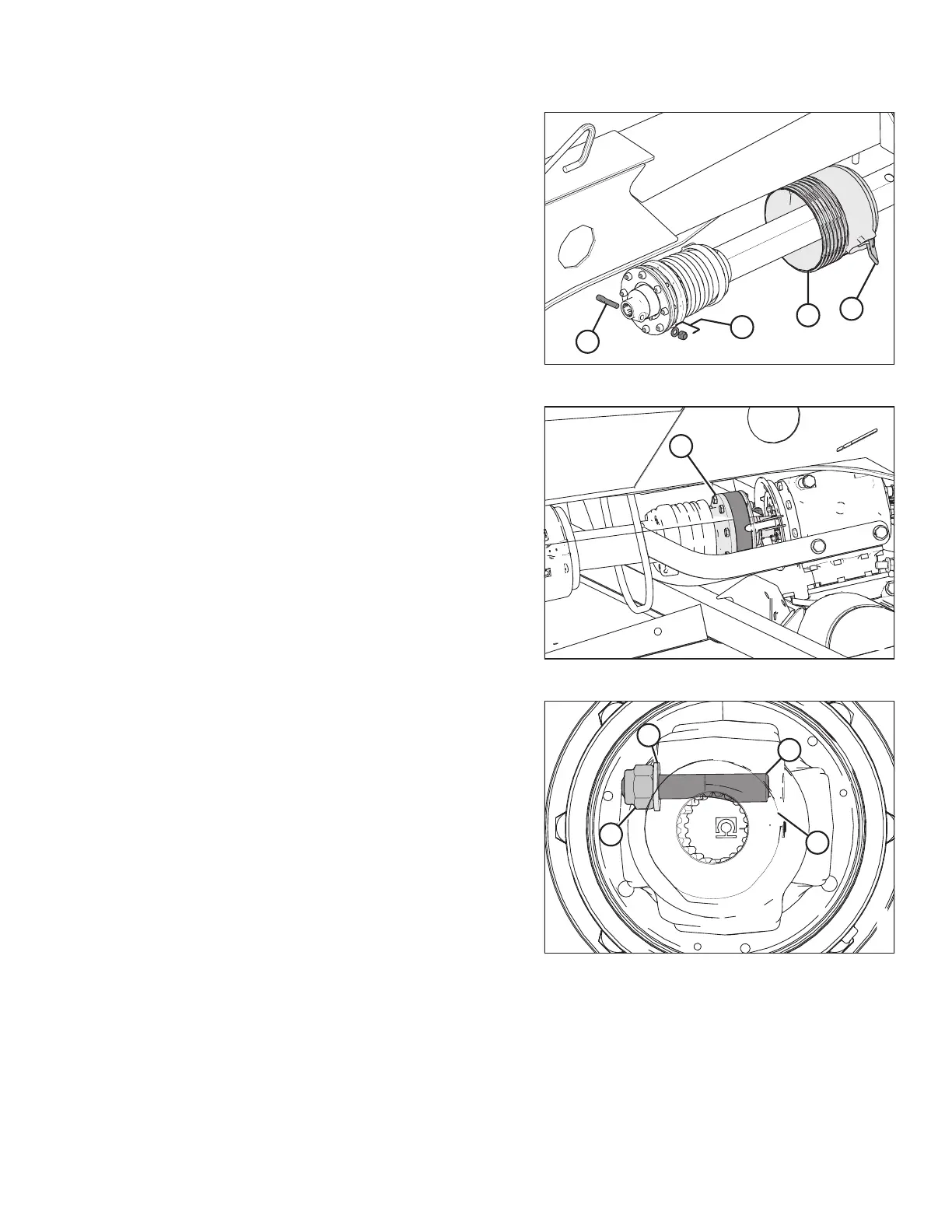

Figure 3.50: Clutch Driveline
6. Slide cone (A) onto driveline with latches (B) towards the
gearbox.
7. Remove nut and washer (C) from tapered pin (D), and tap
out pin from yoke using a hammer.
Figure 3.51: Clutch Driveline
8. Attach driveline (A) to the upper rear swivel gearbox shaft.
Figure 3.52: Clutch Driveline
9. Insert tapered pin (A) by hand. Ensure the pin lines up with
groove in the yoke and is fully inserted. The notch in the pin
should be facing toward the shaft.
10. Clean threads on pin (A) after inserting pin.
11. Install washer (B) and nut (C) on the tapered pin, and then
torque to nut 149 Nm (110 lbf·ft). The end of the pin must
be recessed 0 –2mm(0–0.08 in.) (D).
NOTE:
Do NOT use an impact wrench to install or torque the nut.
12. Install the shield onto the upper rear swivel gearbox. Use
the latches to secure it.
ASSEMBLING THE ROTARY DISC PULL-TYPE – WITH OR WITHOUT THE DEALER-INSTALLED TRANSPORT
