Chapter 7: Lubricating the Rotary Disc Pull-Type
The rotary disc pull-type has been lubricated at the factory. However, you should lubricate the rotary disc pull-type prior to
delivery to offset the effects of weather during outside storage and transport.
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove the key
from the ignition before leaving the operator’s seat for any reason.
7.1 Opening Driveshields
Driveshields protect people from rotating belts and drives.
WARNING
To reduce the risk of personal injury, do NOT operate the machine without the driveshields in place and secured.


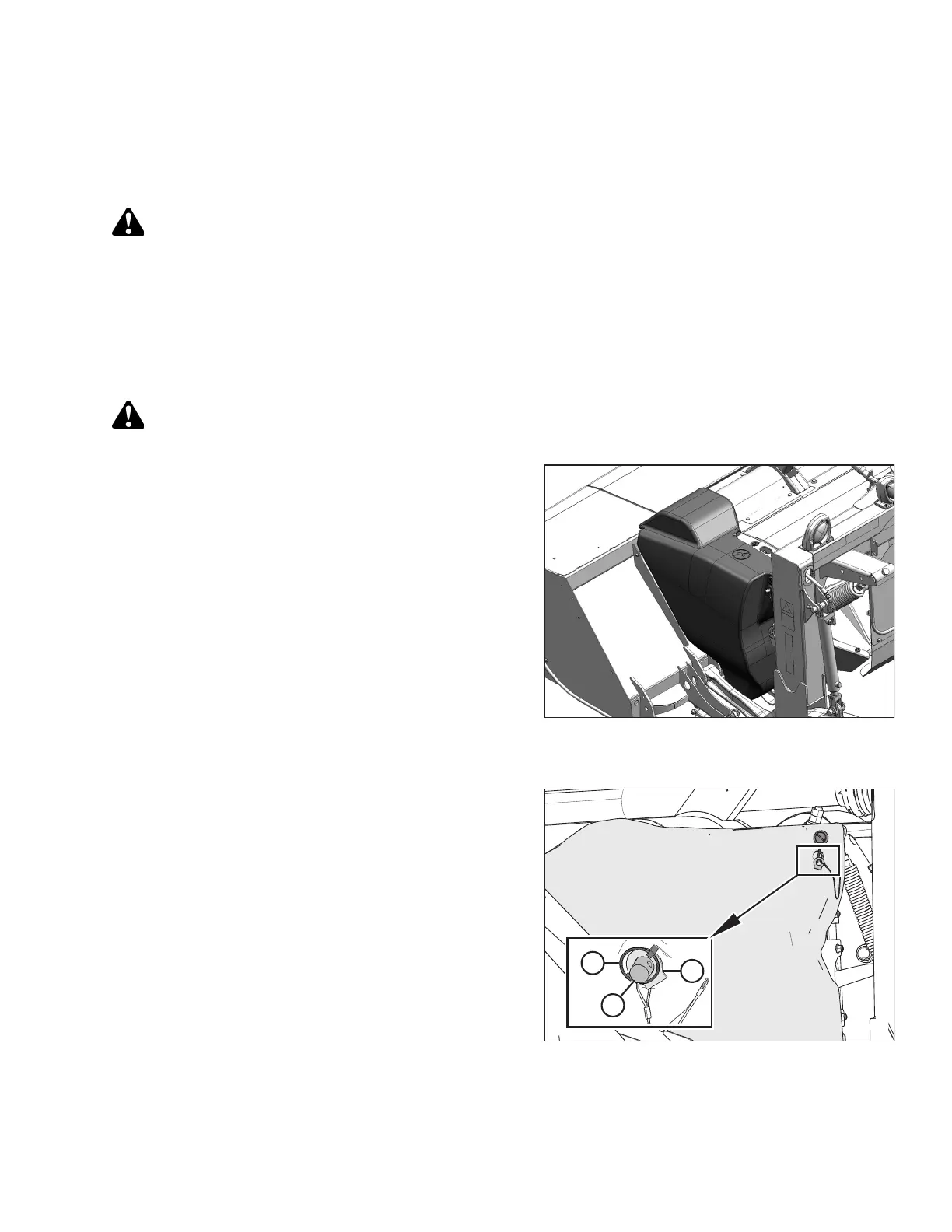

Figure 7.1: Left Driveshield
NOTE:
Images shown in this procedure are for the left driveshield—the
right driveshield is similar.
1. Shut down the engine, and remove the key from the ignition.

$
%
&
Figure 7.2: Left Driveshield
2. Remove lynch pin (A) and tool (B) from pin (C).
