215585 27 Revision A
To install cylinder on unit WITH the transport system, proceed as follows:

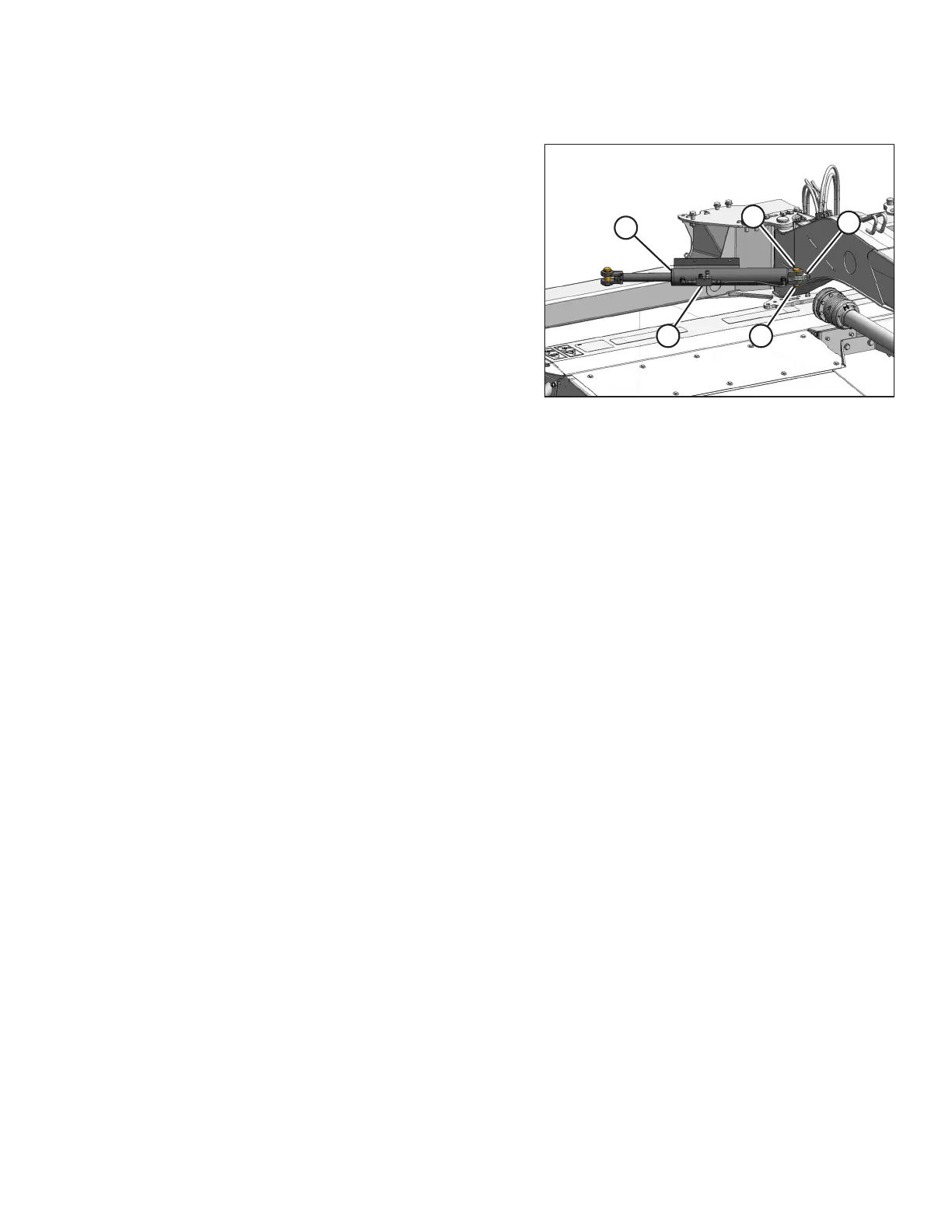

Figure 3.46: Hitch Swing Cylinder
1. Disconnect the hoses from the cylinder and cap off
openings on cylinder and hoses.
2. Reposition cylinder (A) at right side of hitch. Use pin (C) to
attach barrel end to lug (B). Secure with cotter pin (D).
NOTE:
The rod end of cylinder will be attached to the transport
system casting after the system is primed. For instructions,
refer to 6.2 Priming the Hitch Swing Cylinder, page 111.
3. Turn valve (E) on the hitch swing cylinder 180° so that
fittings are pointing up.
ASSEMBLING THE ROTARY DISC PULL-TYPE – WITH OR WITHOUT THE DEALER-INSTALLED TRANSPORT
