MacDon R113 - Page 130

215585 122 Revision A

$

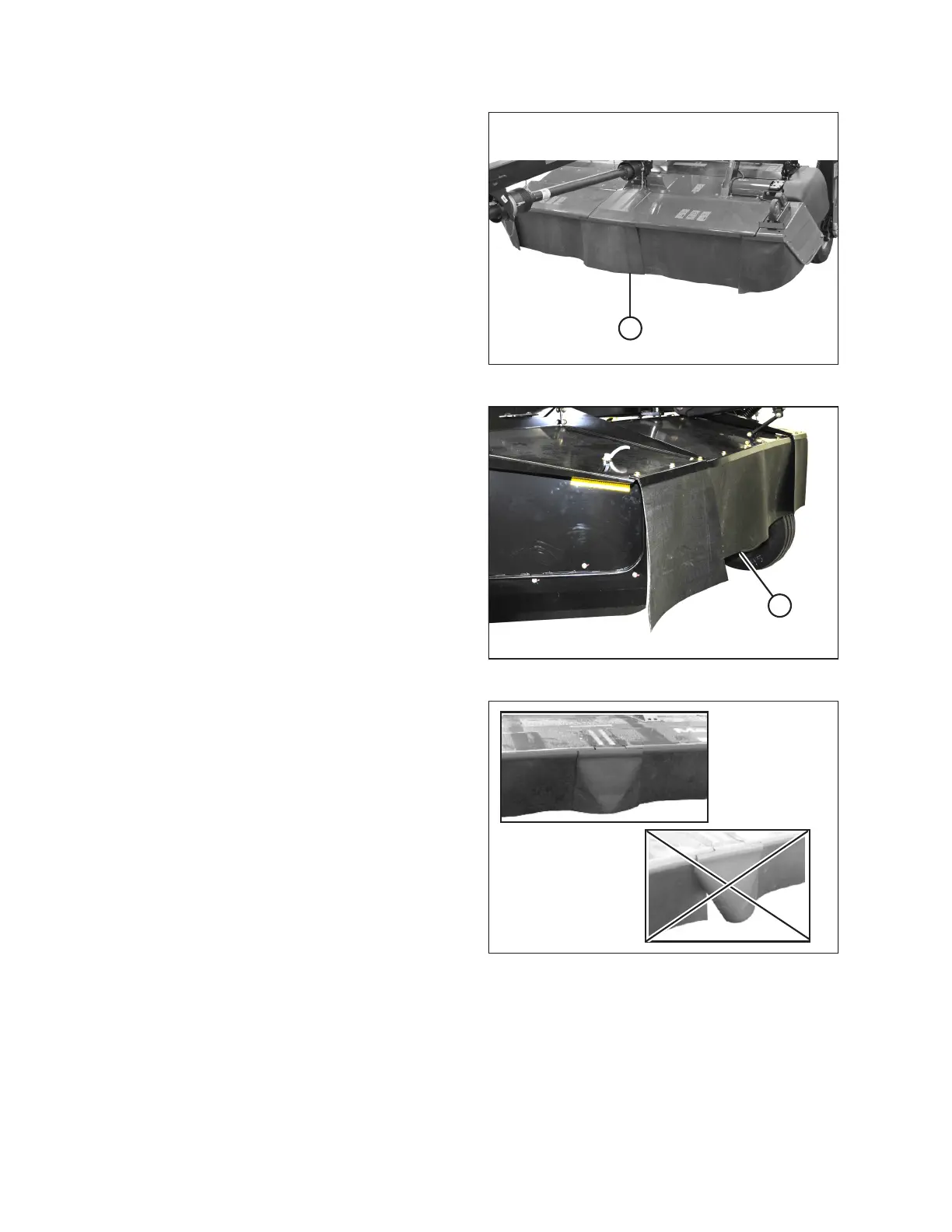

Figure 6.31: Cutterbar Door Curtains
3. Straighten cutterbar door curtains (A) and remove folds or
creases.
NOTE:
Minor creases will eventually straighten out.

$
Figure 6.32: Forming Shield Curtains
4. If forming shields are installed, straighten forming shield
curtains (A) and remove folds or creases.
NOTE:
Minor creases will eventually straighten out.

Figure 6.33: Cutterbar Door Curtains
5. Ensure cutterbar door curtains and forming shield covers
hang properly and completely enclose cutterbar area.
COMPLETING ROTARY DISC PULL-TYPE ASSEMBLY
