215585 89 Revision A

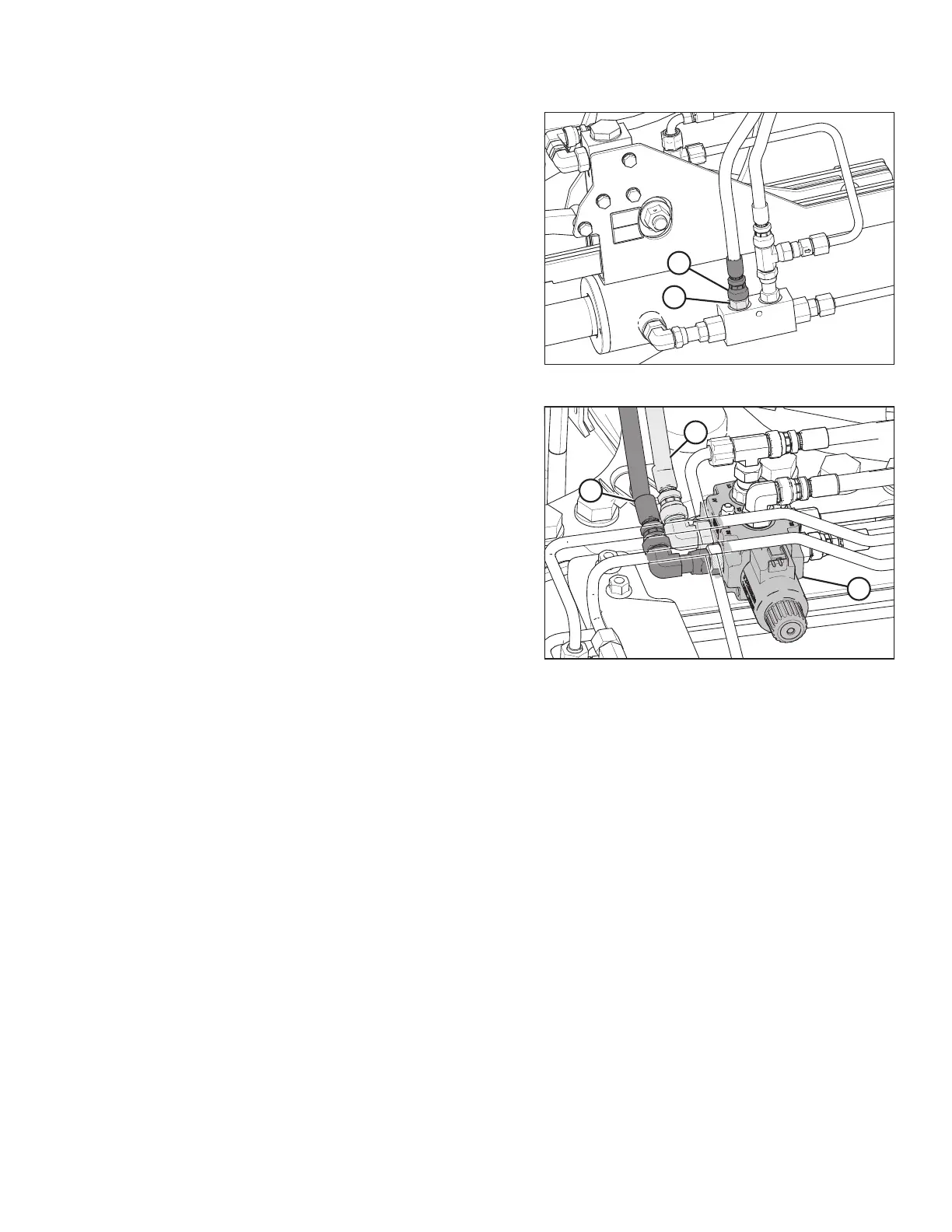

Figure 4.67: Alignment Valve Fitting
6. Remove the cap from fitting (A).
7. Remove the plug from hose (B). Install hose to fitting (A)
as shown.
Figure 4.68: Selector Valve Supply
8. Connect hose (B) (with red collar #2), from the rear of the
hitch, to the fitting in port A1 on selector valve (C).
9. Connect hose (A) (with blue collar #2), from the rear of the
hitch, to the fitting in port A2 of selector valve (C).
10. Secure hoses (A) and (B) together with a cable tie.
ASSEMBLING THE ROTARY DISC PULL-TYPE – FACTORY-INSTALLED TRANSPORT
