215585 87 Revision A

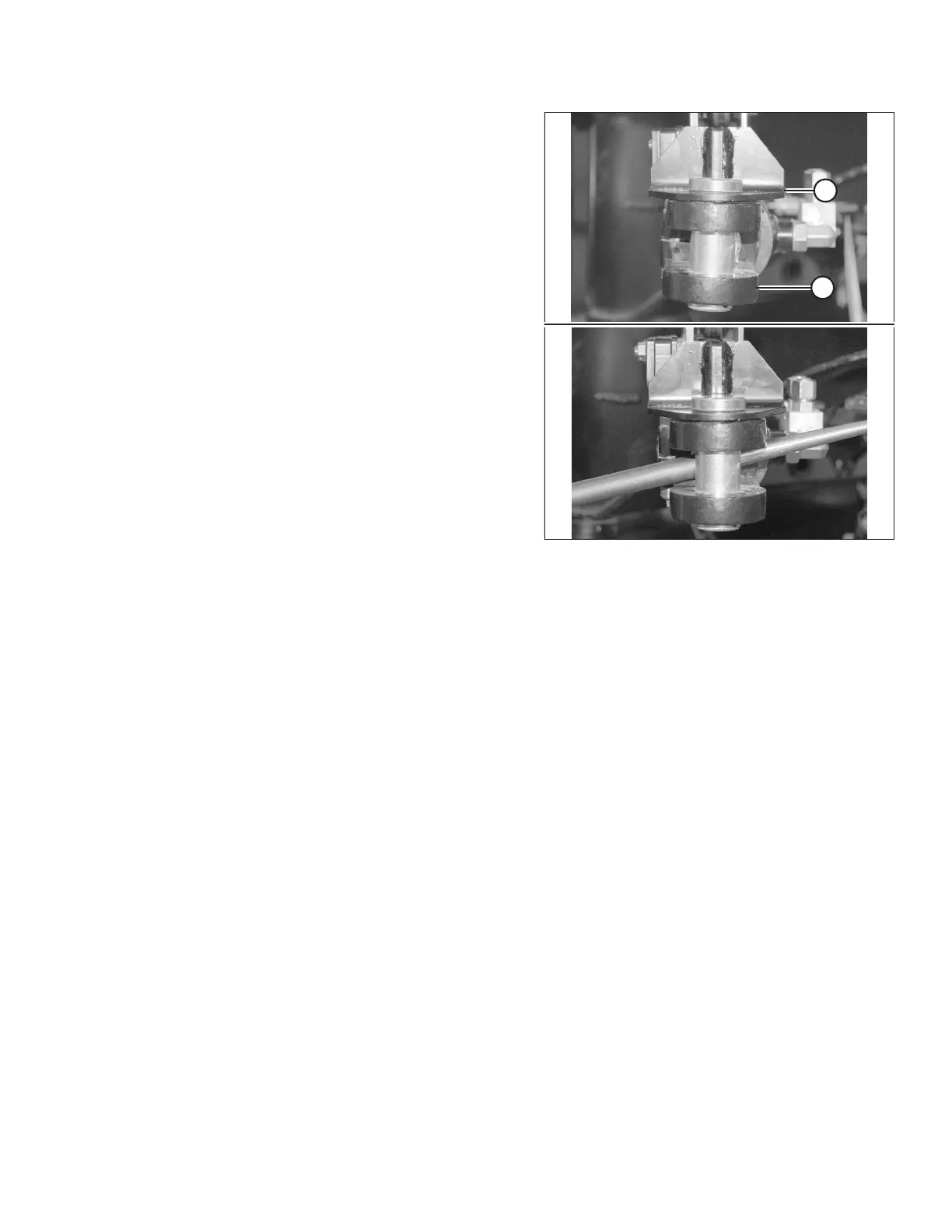

Figure 4.64: Cam Arm Alignment
4. Ensure end of cam arm (A) is parallel with clevis (B) at the
rod end of the cylinder. If adjustment is required, use a bar
and turn the clevis until the clevis is parallel with cam
arm (A).
NOTE:
The rod end of cylinder will be attached to the transport
system casting after the system is primed. For instructions,
refer to 6.2 Priming the Hitch Swing Cylinder, page 111.
ASSEMBLING THE ROTARY DISC PULL-TYPE – FACTORY-INSTALLED TRANSPORT
