215585 104 Revision A
$
%
&

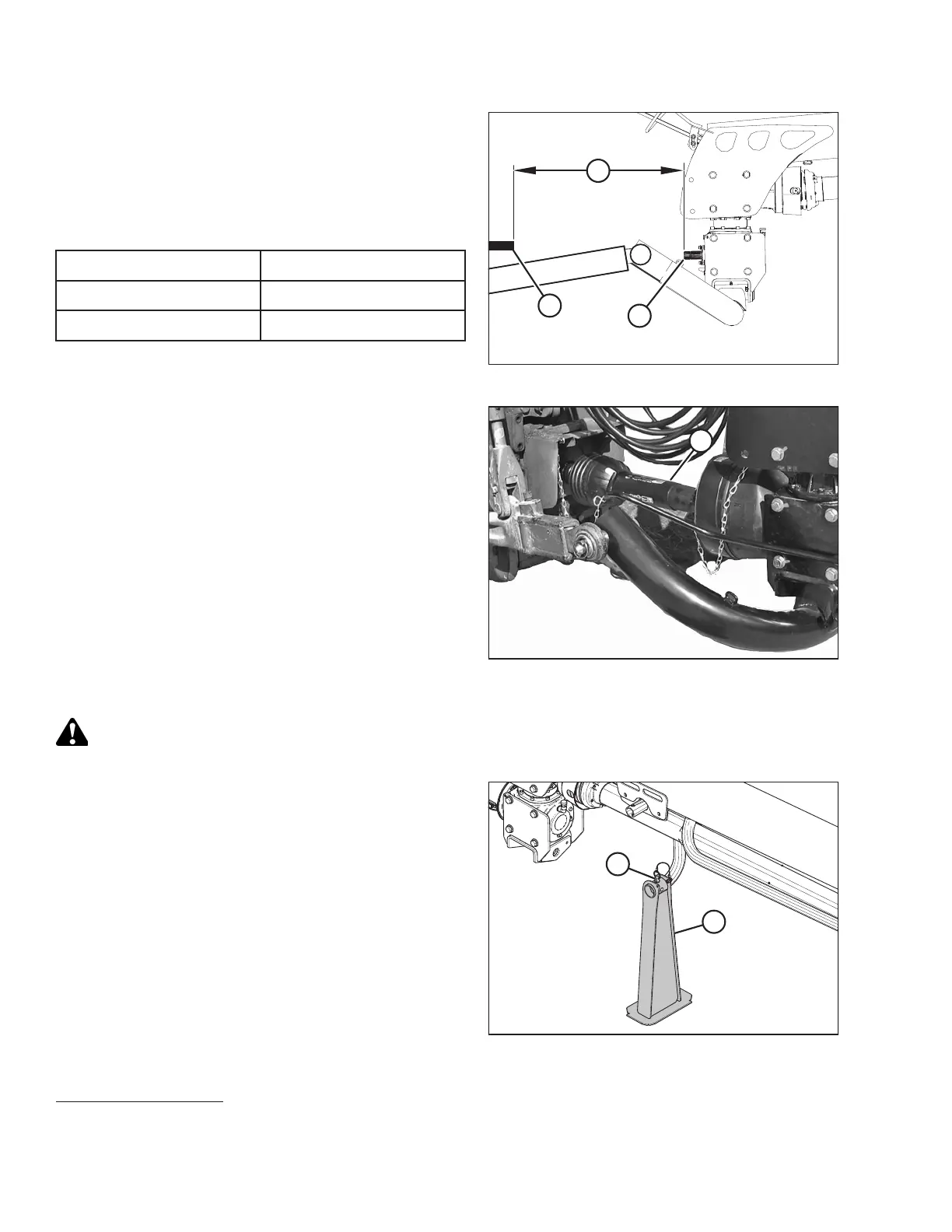

Figure 5.10: Allowable Driveline Length
6. Check distance (C) between tractor primary power take-off
(PTO) shaft (A) and rotary disc pull-type hitch gearbox
shaft (B) without the front half of the driveline attached.
7. Ensure that distance (C) does NOT exceed the dimensions
listed in Table 5.2, page 104.
Table 5.2 Distance between Hitch Gearbox and Tractor PTO
Driveline Shaft Size
Distance (C)
1
34 mm (1 3/8 in.) 650 mm (25 9/16 in.)
43 mm (1 3/4 in.) 750 mm (29 1/2 in.)
$
Figure 5.11: Driveline Attached to Tractor PTO
8. Position primary driveline (A) onto the tractor’s PTO shaft,
making sure that the driveline is approximately level.
9. Pull back the collar on driveline (A) and push the driveline
until it locks. Release the collar.
CAUTION
Check to be sure all bystanders have cleared the area.
$
%
Figure 5.12: Hitch Stand in Working Position
10. Clear bystanders from the area and start the tractor. Do
NOT operate the rotary disc pull-type.
11. Raise the hitch so that stand (A) is off the ground.
12. Shut down the engine, and remove the key from
the ignition.
13. Remove inner hairpin (B) to release stand (A).
CONNECTING THE TRACTOR TO THE ROTARY DISC PULL-TYPE
1. If distance (C) is greater than the values shown, a longer driveline is required. Refer to the rotary disc pull-type
operator’s manual, options and attachments section for ordering information.
