215585 114 Revision A
$
%

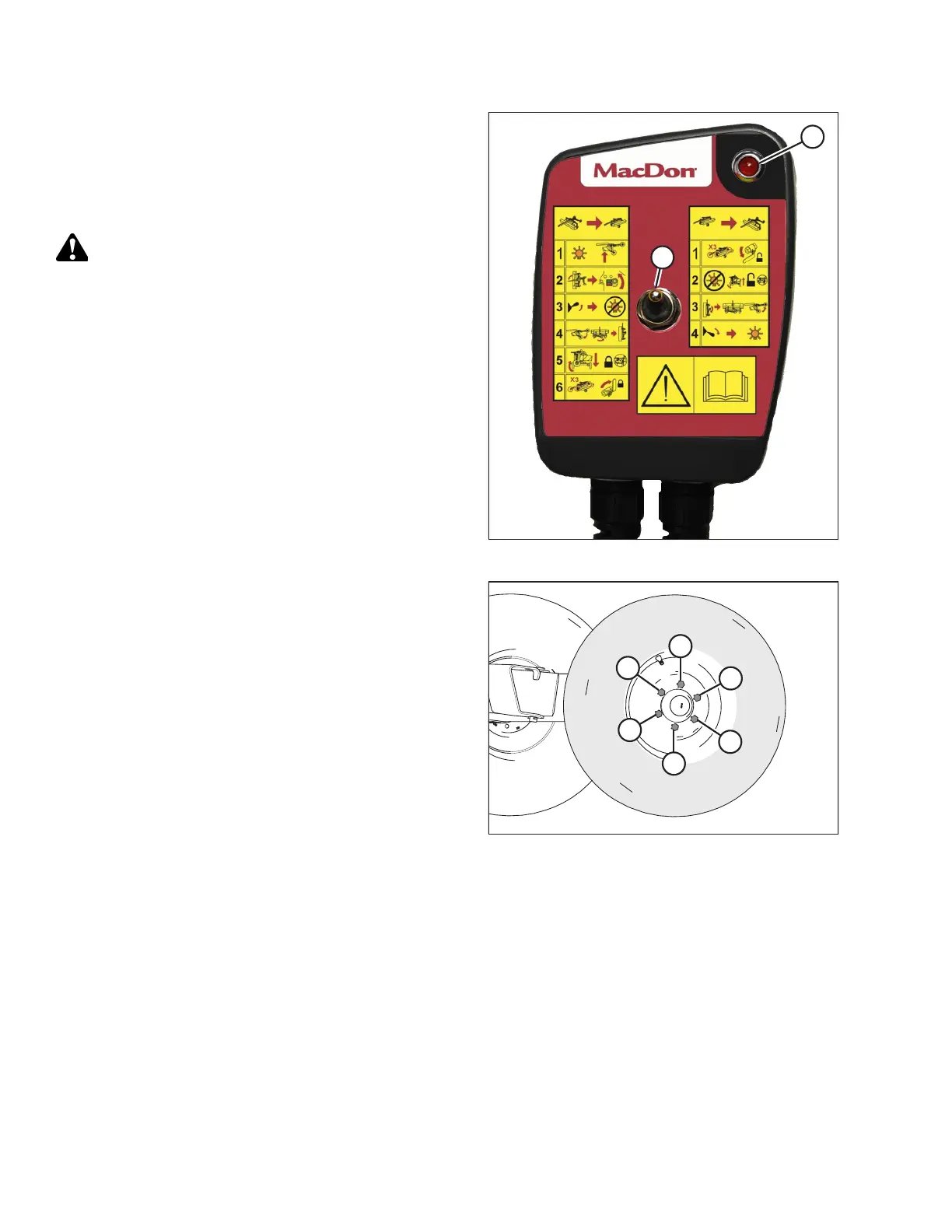

Figure 6.11: Transport Remote Control
7. In the cab, move transport switch to upper position (B) and
ensure that light (A) is NOT illuminated. The hitch swing
circuit is now deactivated and the transport circuit is active.
8. Using tractor’s hydraulics, raise the transport assembly high
enough to install the wheels.
CAUTION
When installing wheel, be sure to match countersunk holes
with bolt head profiles. Holes that are not countersunk do NOT
correctly seat the bolts.
Figure 6.12: Tightening Sequence
9. Retrieve transport wheels and install wheels with wheel
bolts. Ensure valve stem faces outboard. Do NOT fully
tighten bolts.
10. Lower wheels to the ground.
11. Torque wheel bolts to 160 Nm (120 lbf·ft) following the
tightening sequence shown.
IMPORTANT:
Whenever a wheel is installed, check torque after 1 hour of
operation.
12. Check tire pressure and adjust as required. For instructions,
refer to 8.2 Checking Tire Pressure, page 138.
COMPLETING ROTARY DISC PULL-TYPE ASSEMBLY
