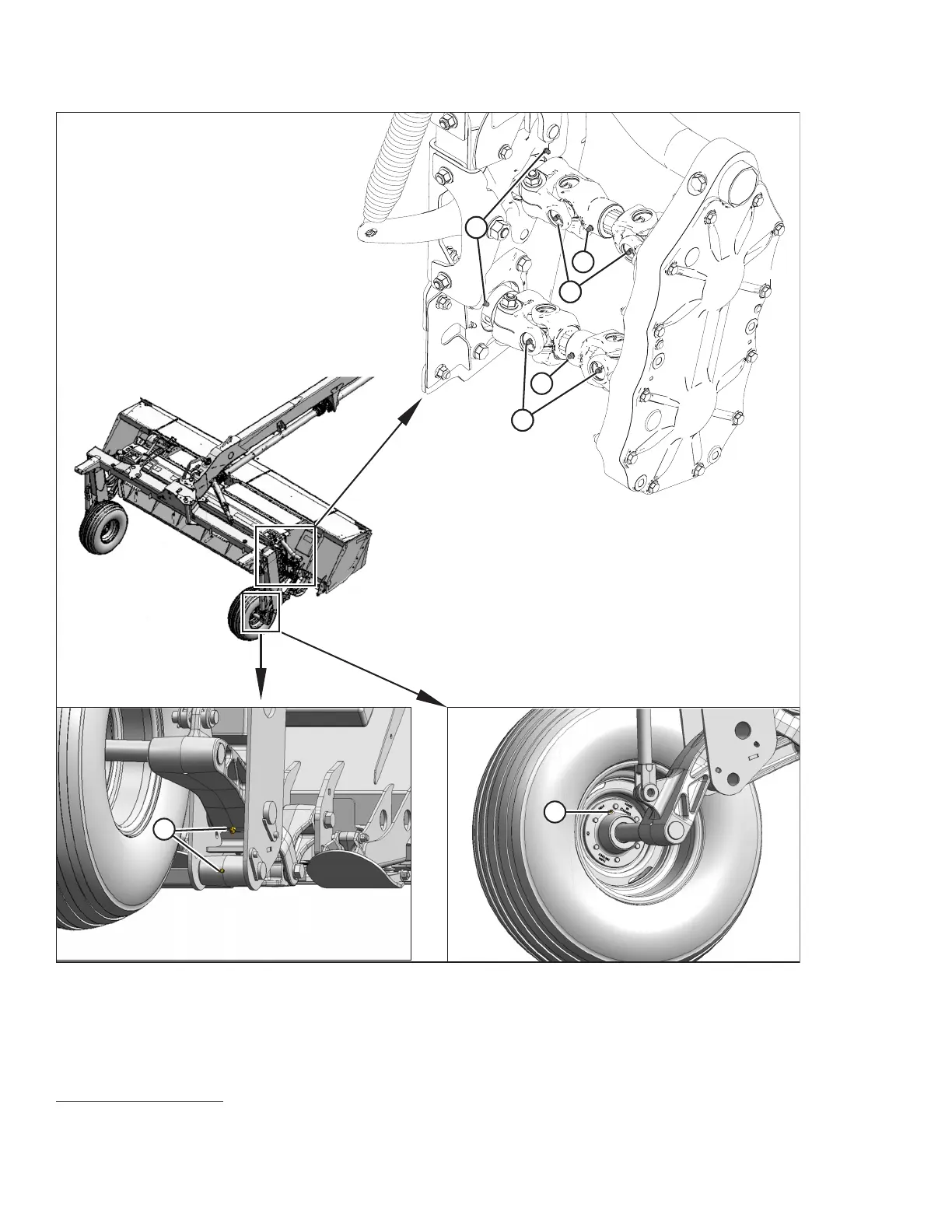

Figure 7.6: Lubrication Points
A - Bearings, Roller Conditioner B - U-Joint, Lower Driveline (Two Places) C - Slip Joints, Conditioner Drivelines
3
D - U-Joint, Upper Driveline (Two Places) E - Lift Linkage (Both Sides) F - Bearing, Field Wheel (Two Places)
LUBRICATING THE ROTARY DISC PULL-TYPE
3. Use high-temperature, extreme-pressure (EP2) performance grease with 10% max molybdenum disulphide
(NLGI grade 2) lithium base.
