215585 148 Revision A
$

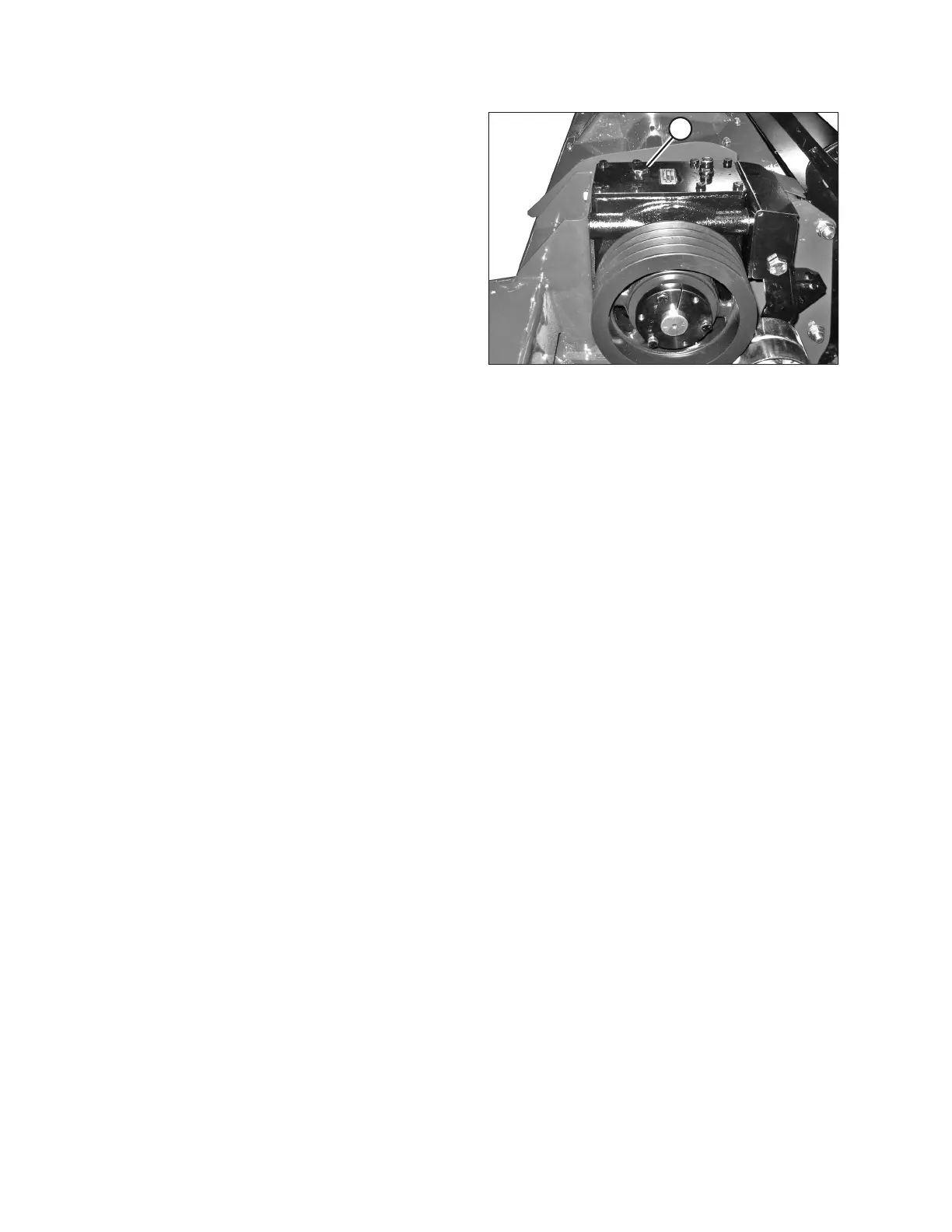

Figure 8.21: Left Side of Rotary Disc Pull-Type
8. Clean area around dipstick (A).
9. Remove dipstick (A) using a 22 mm socket.
10. Ensure lubricant level is to the line on dipstick.
11. If necessary, add gear lubricant to gearbox through dipstick
hole (A). For recommended lubricants and quantities, refer
to 10.3 Recommended Lubricants, page 183.
12. Reinstall dipstick and tighten.
13. Close left driveshield. For instructions, refer to 7.3 Closing
Driveshields, page 136 .
PERFORMING PREDELIVERY CHECKS
