MacDon R113 - Page 54

215585 46 Revision A

$
%

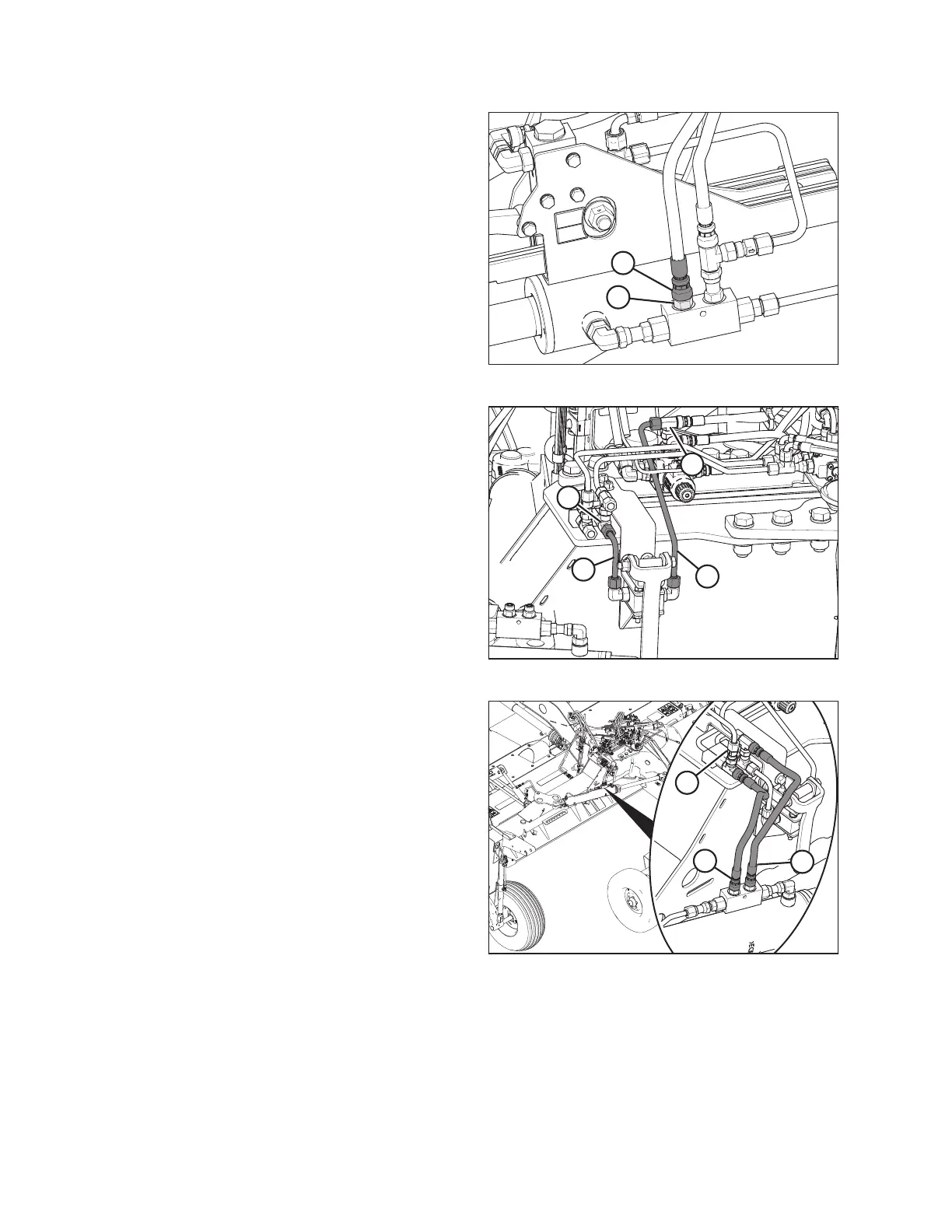

Figure 3.92: Alignment Valve Fitting
6. Remove the cap from fitting (A).
7. Remove the plug from hose (B). Install hose to fitting (A)
as shown.

$
%
&
'
Figure 3.93: Completion Assembly Plumbing
8. Install steel line (A) from port A on the completion
assembly to tee fitting (D).
9. Install steel line (B) from port B on the completion assembly
to tee fitting (C).

$
%
&
Figure 3.94: Transport Swing Cylinder
10. Attach hose (A) to steel line connecting to port D of
transport swing control.
11. Attach hose (B) to steel line connecting to port C of
transport swing control.
12. Secure hoses (A) and (B) together with a cable tie.
NOTE:
Ensure that direction arrow on check valve (C) points
toward tee fitting.
ASSEMBLING THE ROTARY DISC PULL-TYPE – WITH OR WITHOUT THE DEALER-INSTALLED TRANSPORT
