215585 91 Revision A

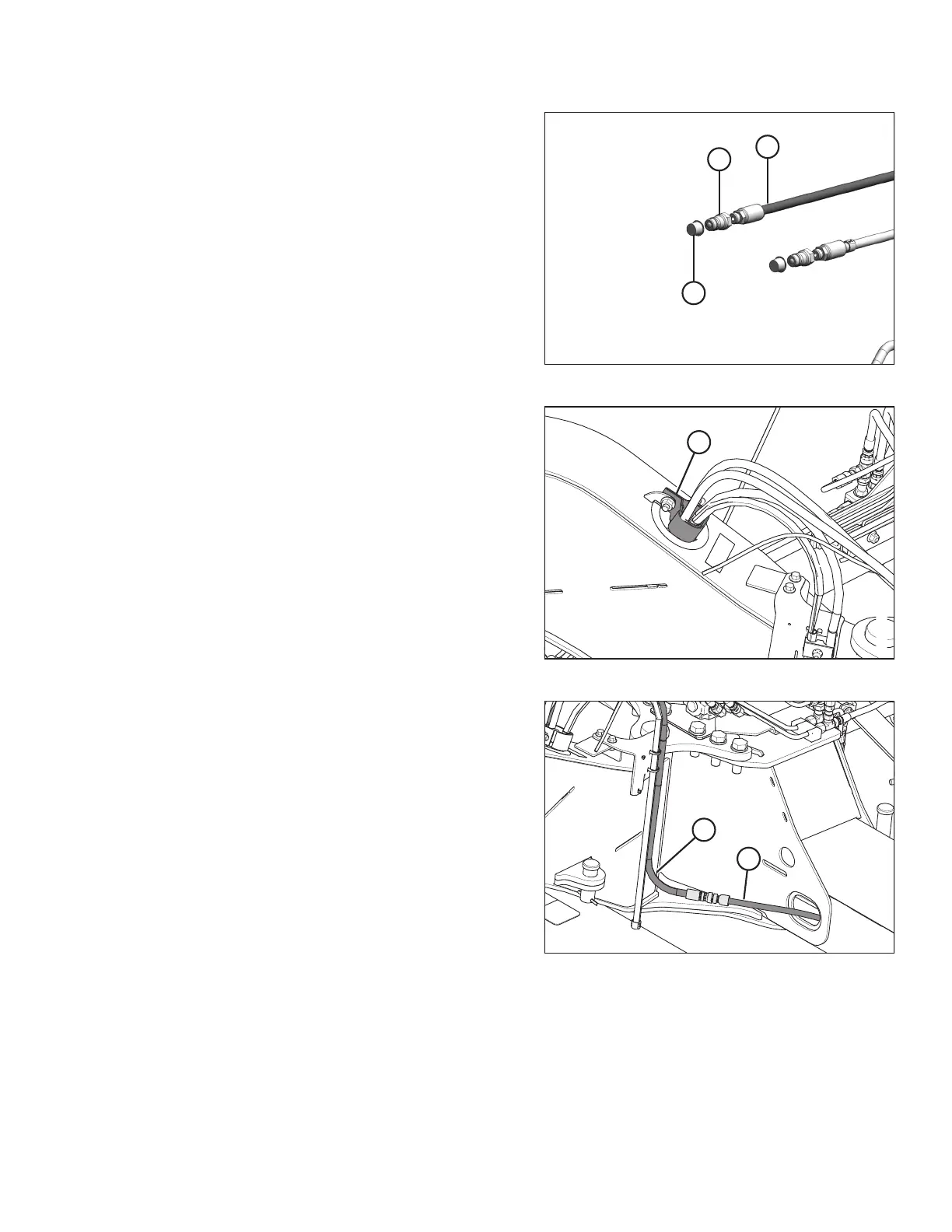

Figure 4.71: Lift Hose Fittings
18. Retrieve ORB-8 coupler (A) and plastic cap (B) from the
hardware bag.
19. At the forward end of the hitch, install coupling (A) and
plastic cap (B) onto secondary lift hose (C). Do NOT attach
the hoses to the tractor at this time.
Figure 4.72: Lift Hoses
20. At the rear of the hitch, secure the hoses with adjustable
strap (A).
Figure 4.73: Lift Hoses
21. Connect hose (A) from left lift cylinder and hose (B)
(MD #224160 or MD #224162) at the hitch pivot.
ASSEMBLING THE ROTARY DISC PULL-TYPE – FACTORY-INSTALLED TRANSPORT
