Maeda MC815C - Inclination Sensor

2-129
8.5.2 INCLINATION SENSOR

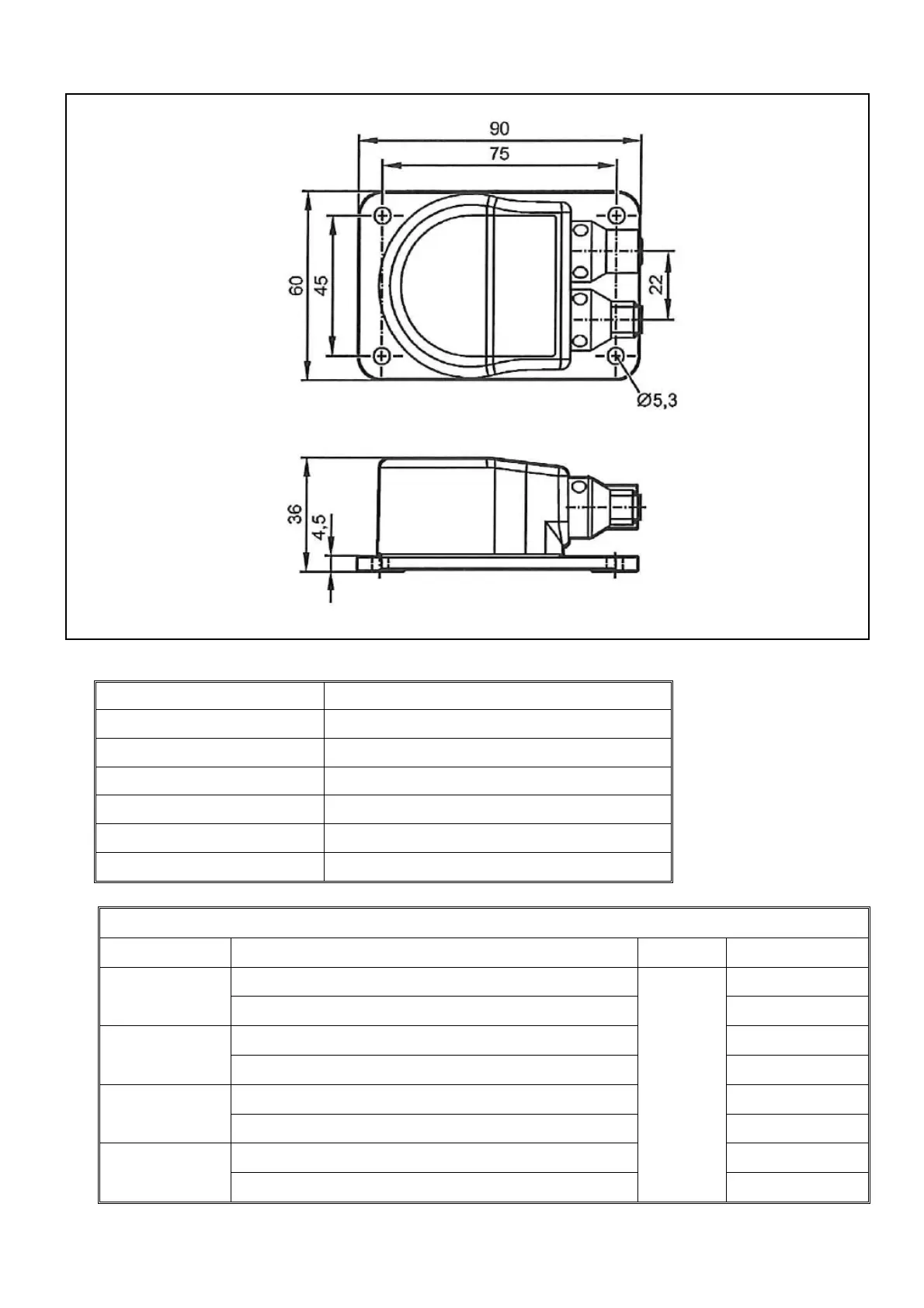

Specifications
Power supply voltage 12 VDC
Working voltage range 9.2 to 30.0 VDC
Interface CANopen
Tilt angle range ±45°
Operating temperature range -45 to 85 °C
Storage temperature range -45 to 85 °C
Protection structure IP67
Inclinatio n se nsor
Mode Vehicle body inclination direction Unit Inclination angle
Outrigger
Parallel to the direction of vehicle travel
degree
3±0.5
Perpendicular to the direction of vehicle travel 3±0.5
Crane
Parallel to the direction of vehicle travel 3±0.5
Perpendicular to the direction of vehicle travel 3±0.5
Travelling
Parallel to the direction of vehicle travel 15±1
Perpendicular to the direction of vehicle travel 15±1
Pick and carry
Parallel to the direction of vehicle travel 3±0.5
Perpendicular to the direction of vehicle travel 3±0.5
