Maeda MC815C - Or Select Valve

2-63

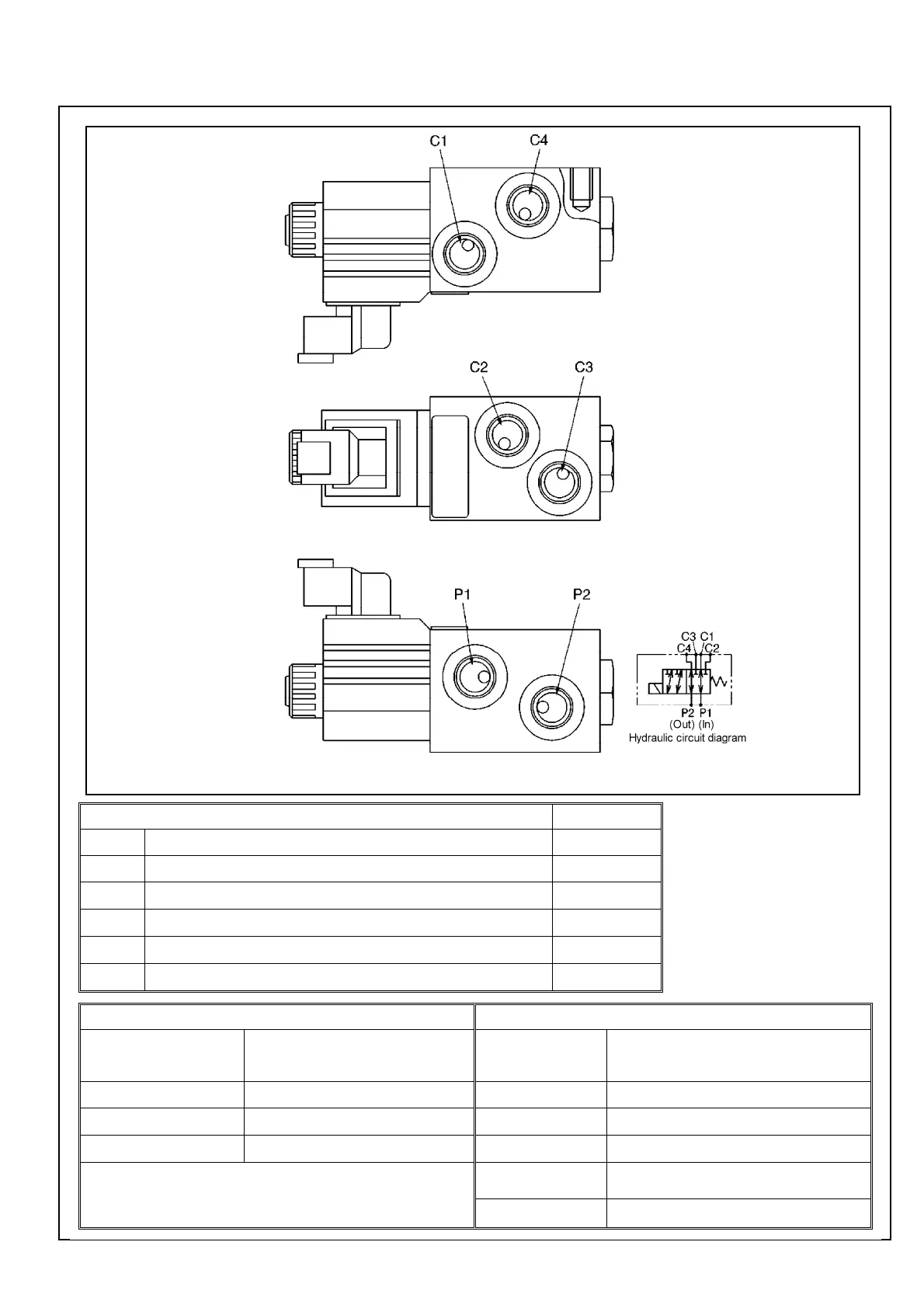

4.17 OR SELECT VALVE
103S92100000
Port destination Port size
P1 Outrigger control valve for each A port PF1/4
P2 Outrigger control valve for each B port PF1/4
C1 Outrigger slide cylinder bottom Extension Out PF1/4
C2 Outrigger cylinder bottom Ground contact Out PF1/4
C3 Outrigger cylinder head Ground contact In PF1/4
C4 Outrigger slide cylinder head Extension In PF1/4
Specifications Specifications
Maximum service
pressure
25 MPa (250 kgf/cm
2
) Voltage 12 VDC
Max. flow rate 25 L/min Current 2.26 A
Coil DT04-2P Mass 0.210 kg
Solenoid voltage 12 VDC (2.26 A) Insulation grade H
★ When not excited, it is connected to the outrigger
slide cylinder circuit.
Operation
conditions
ED100% when room temperature is
40 ºC or less
Connector Deutsch connector (DT04-2P)
