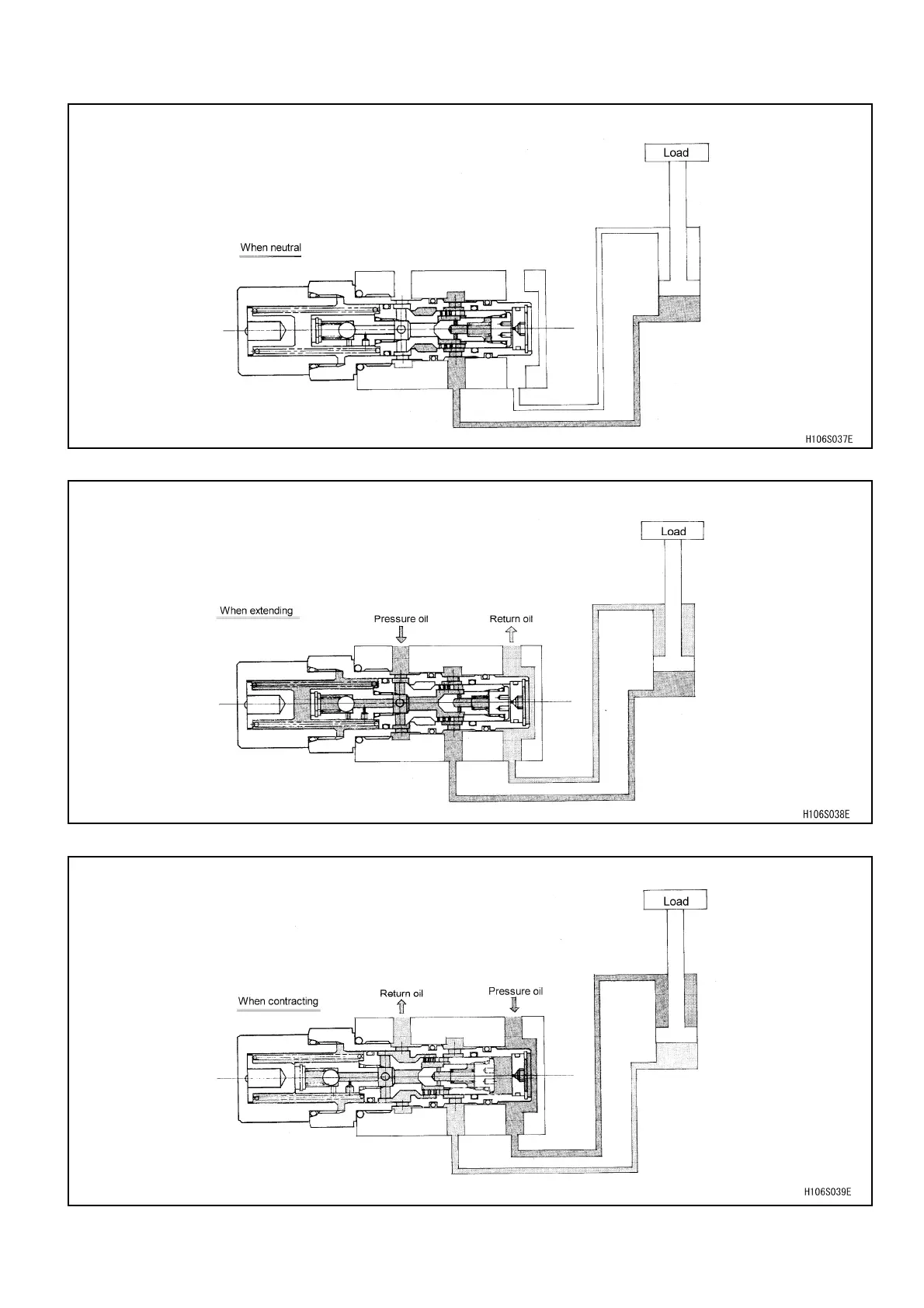

4.13.5 COUNTER-BALANCE VALVE OPERATING DIAGRAM
1. When neutral
2. When extending
3. When contracting
