Maeda MC815C - Moment Limiter - Names for Monitor Indicators (Crane Mode)

2-134

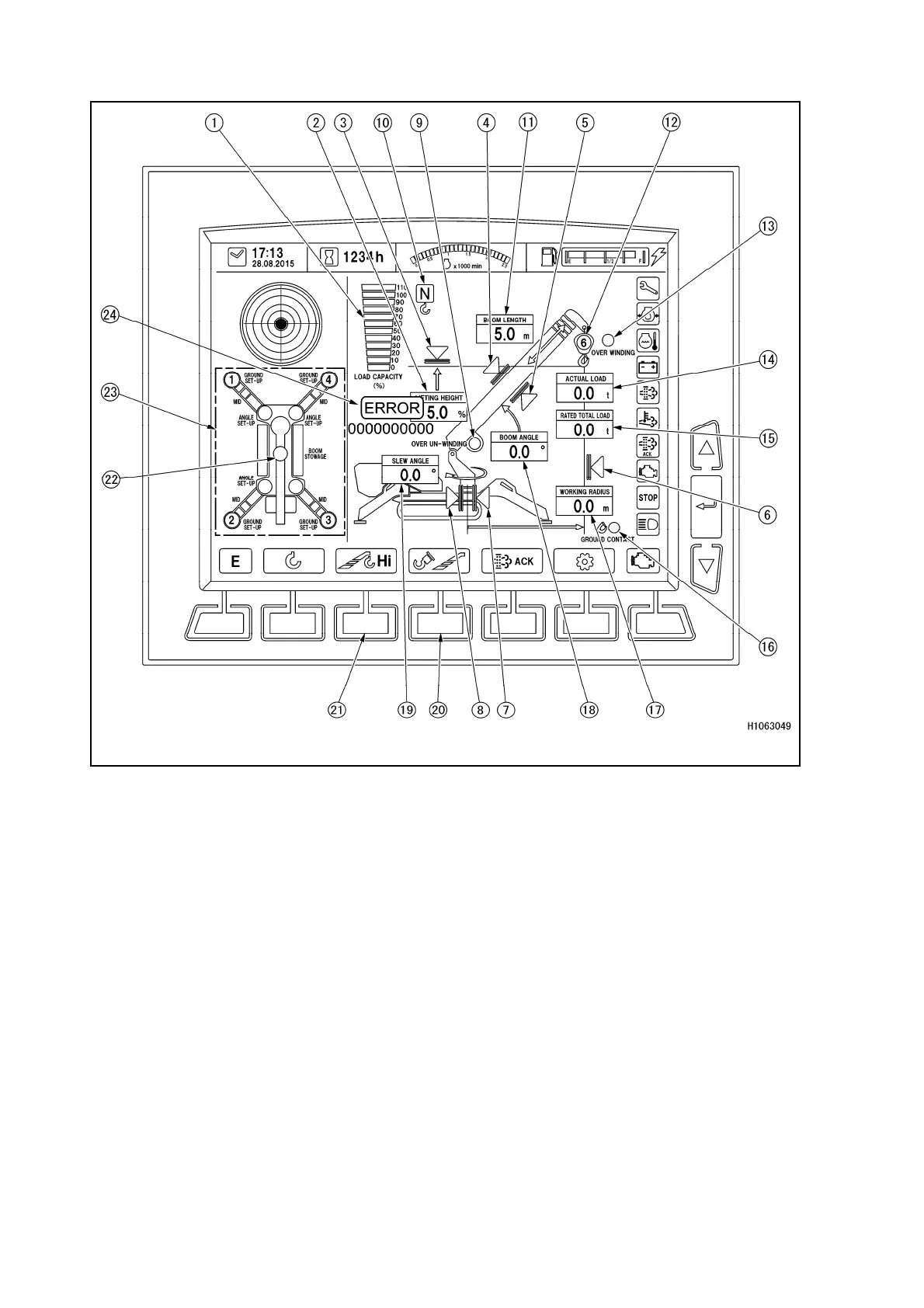

9.2 MOMENT LIMITER - NAMES FOR MONITOR INDICATORS (CRANE MODE)
(1) Load factor display
(2) Lifting height indication
(LIFTING HEIGHT)
(3) Lifting height limiter switch
(4) Boom angle upper limit switch
(5) Boom angle lower limit switch
(6) Working radius limiter switch
(7) Clockwise slew angle limiter
switch
(8) Counterclockwise slew angle
limiter switch
(9) Over un-winding indication
(OVER UN-WINDING)
(10) Hoist mode indication
(N-mode, P-mode, M-mode)
(11) Boom length indication
(BOOM LENGTH)
(12) Number of wire falls
indication
(13) Over-winding indication
(OVER WINDING)
(14) Actual load indication
(ACTUAL LOAD)
(15) Rated total load indication
(RATED TOTAL LOAD)
(16) Hook grounding indication
(GROUND CONTACT)
(17) Working radius indication
(WORKING RADIUS)
(18) Boom angle indication
(BOOM ANGLE)
(19) Slew angle indication
(20) Mode selector switch (3)
(Hook stowage / Fully
automatic stowage)
(21) Mode selector switch (2)
(Crane Hi / Low)
(22) Crane stowage position
indication
(23) Outrigger related indication
(24) Error codes
