2-42
4.11 WINCH MOTOR

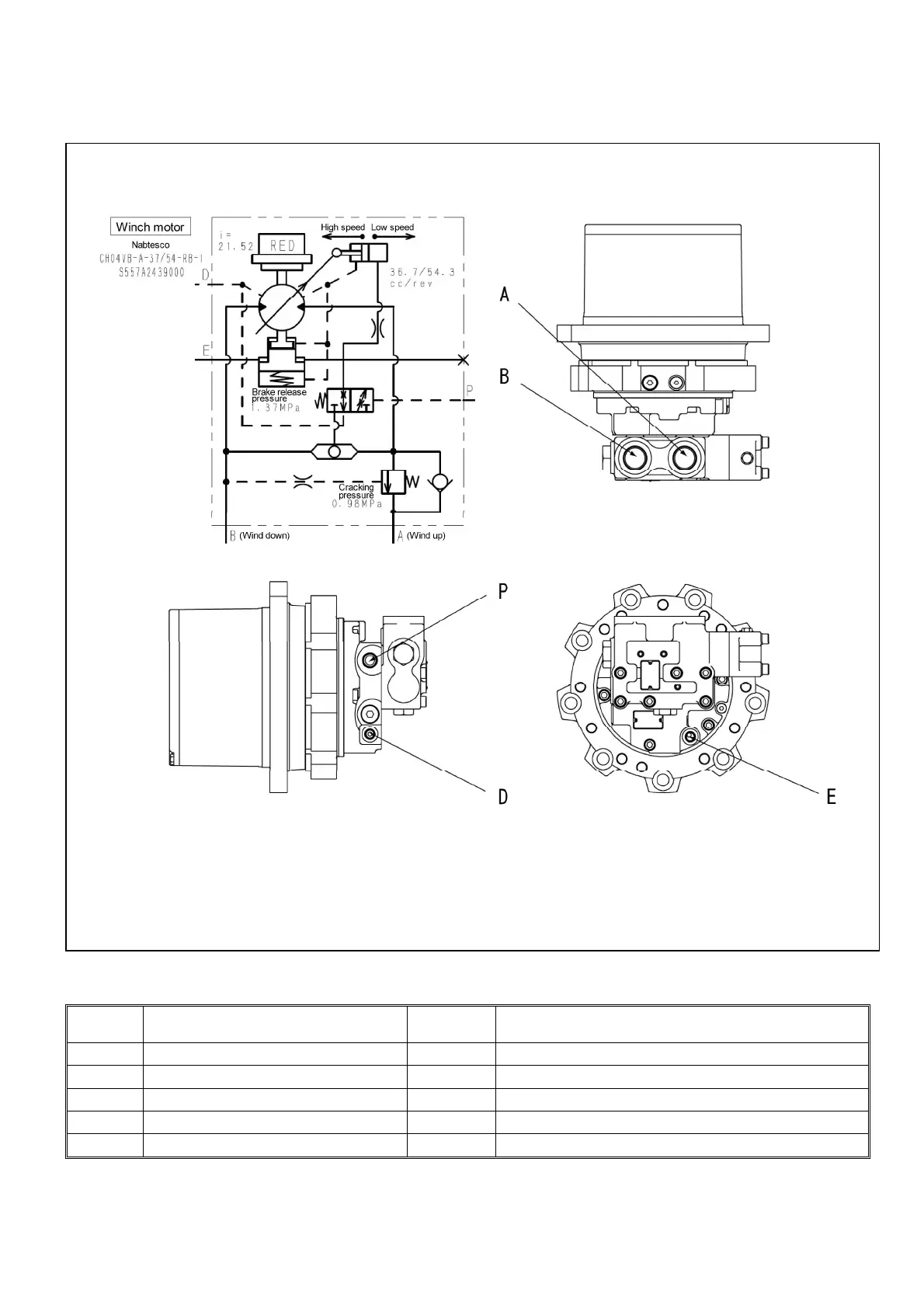

4.11.1 WINCH MOTOR EXTERNAL VIEW
4.11.2 WINCH MOTOR CONNECTION DESTINATIONS
Port
name
Port destination Port size Note
A Winch confluence valve B1 port PF1 Lifting
B Winch confluence valve A1 port PF1 Lowering
D Hydraulic oil tank PF1/2
E Winch brake release valve C port PF1/4
P Winch confluence valve C port PF1/4
S584A2234000
