Maeda MC815C - Slewing Motor Internal Structure Diagram

2-39

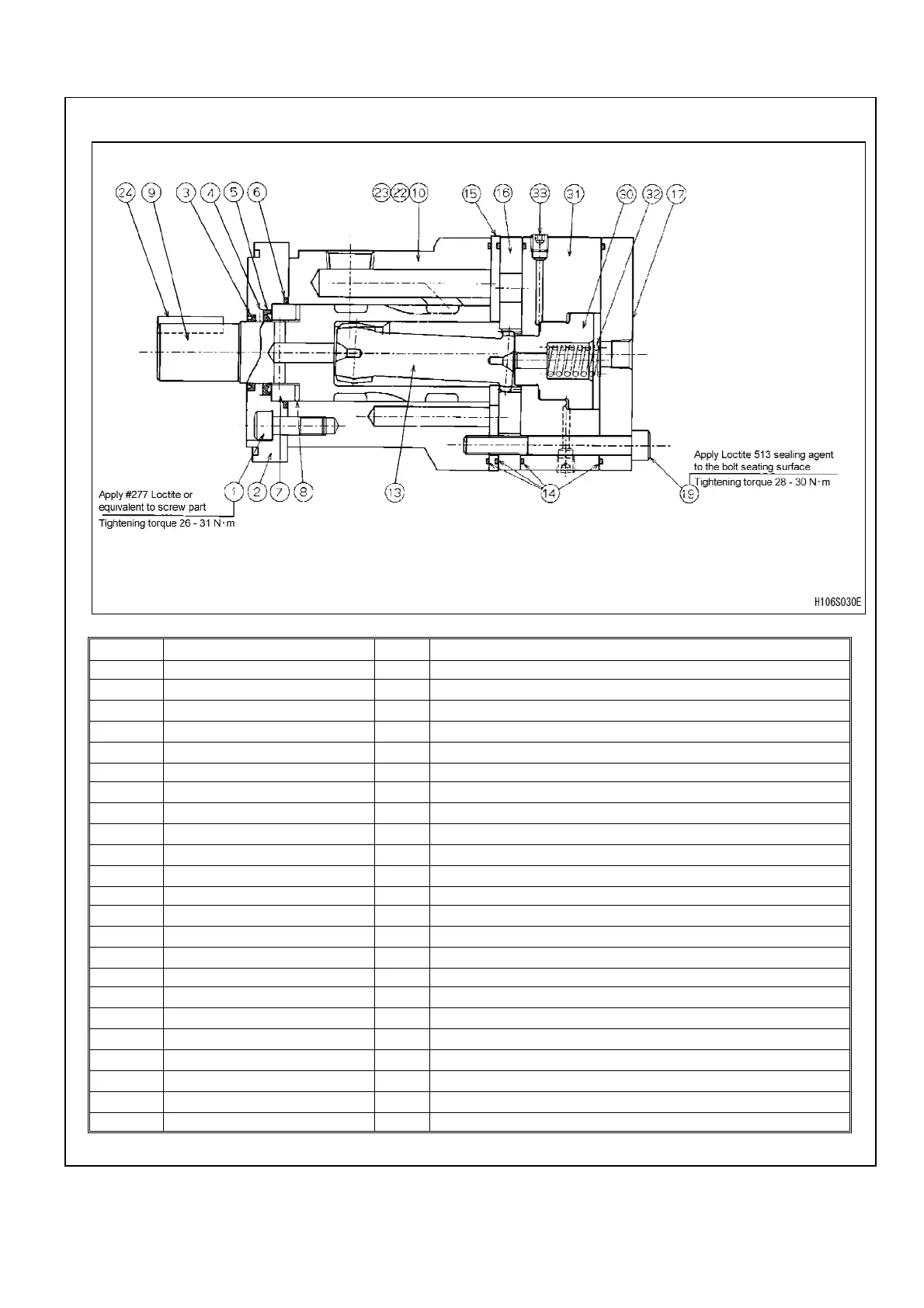

4.8.4 SLEWING MOTOR INTERNAL STRUCTURE DIAGRAM
No. Name Qty. Note
1 Screw 4 5/16 UNF×22
2
Flange
1
3
Dust seal 1
4
Backup ring 1
5
Oil seal 1
6 O-ring 1 Dimension: 44.1×2.6
7
Thrust bearing race 1
8
Thrust bearing needle 1
9
Output shaft 1
10
Housing 1
13
Drive 1
14 O-ring 4 Dimension: 92×2.5
15
Spacer plate 1
16
Gerotor 1
17
End cap 1
19 Screw 7 5/16 UNF×73
22
Name plate 1
23
Rivet 2
24
Key 1
30
Brake pin 1
31
Brake housing 1
32
Spring 1
33 Plug 2 NPTF1/16
