Maeda MC815C - Double Pilot Check Valve

2-60

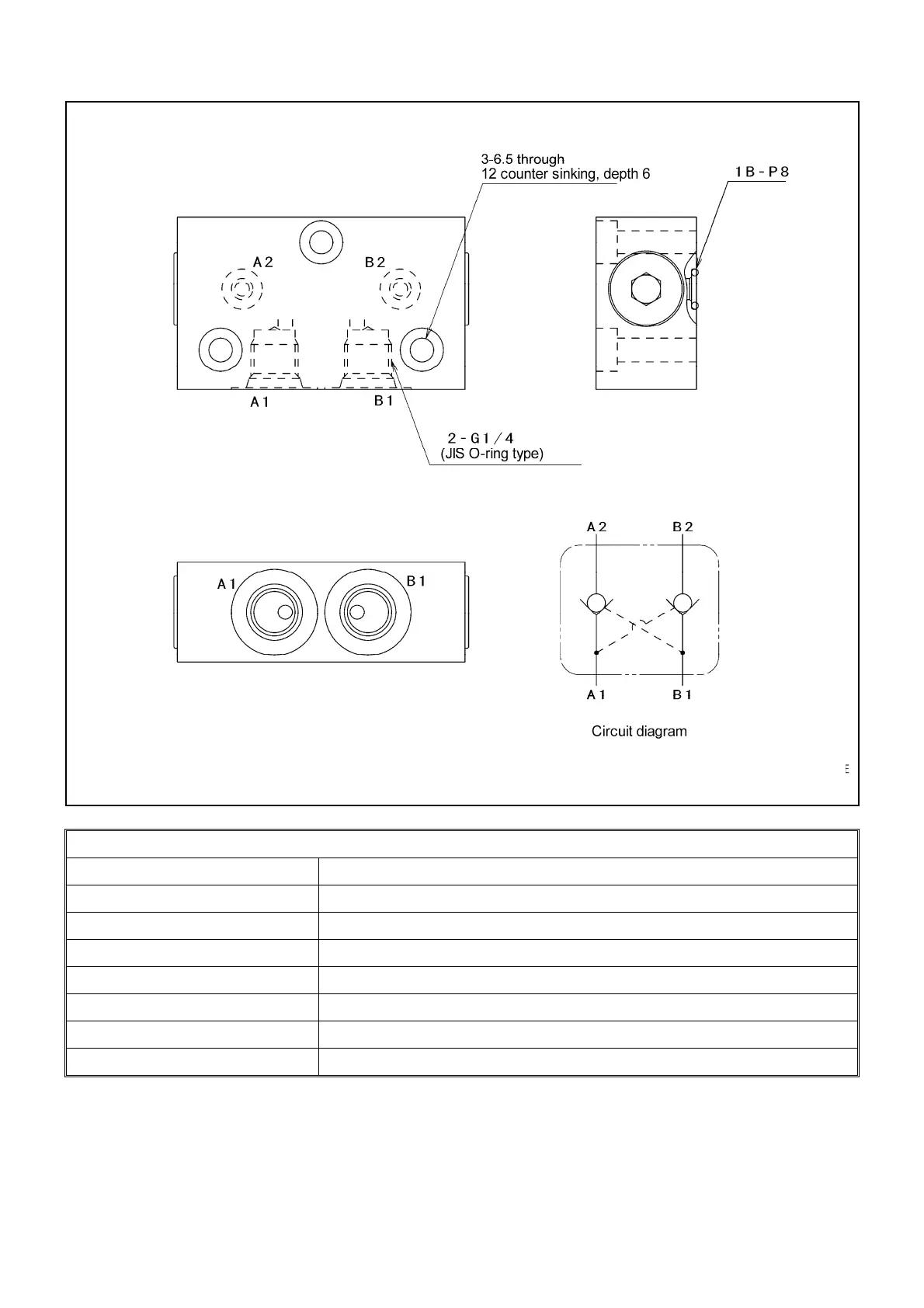

4.15.4 DOUBLE PILOT CHECK VALVE
Specifications
Rated pressure 20.6 MPa (210 kgf/ cm
2
)
Test pressure 41.2 MPa (420 kgf/ cm
2
)
Max. flow rate 10 L/min
Allowable leak amount 0.05 cc/min (pressurizing 17.2 MPa [175 kgf/ cm
2
] from A2 and B2 ports)
Check cracking pressure 0.49 MPa (5 kgf/ cm
2
)
Pilot area ratio 6.2:1
Test oil temperature range 50±5ºC
Operating temperature range -10 - +80ºC
103S92800000
(
65000-06400
)
