6-4
3. CHANGING SEARCHER HOOK ANGLE
・Never put your fingers into the pin hole. If you remove, it may cause a serious bodily accident.
・When changing the angle, the searcher hook boom might fall suddenly after pin is pulled out, so
be sure to support the boom before changing pins.
・After changing the angle of the searcher hook, change “OFFSET POSITION” on the monitor
according to the actual angle. If you use the machine without changing the mode, damage to or
overturn of the machine might occur causing a serious accident.

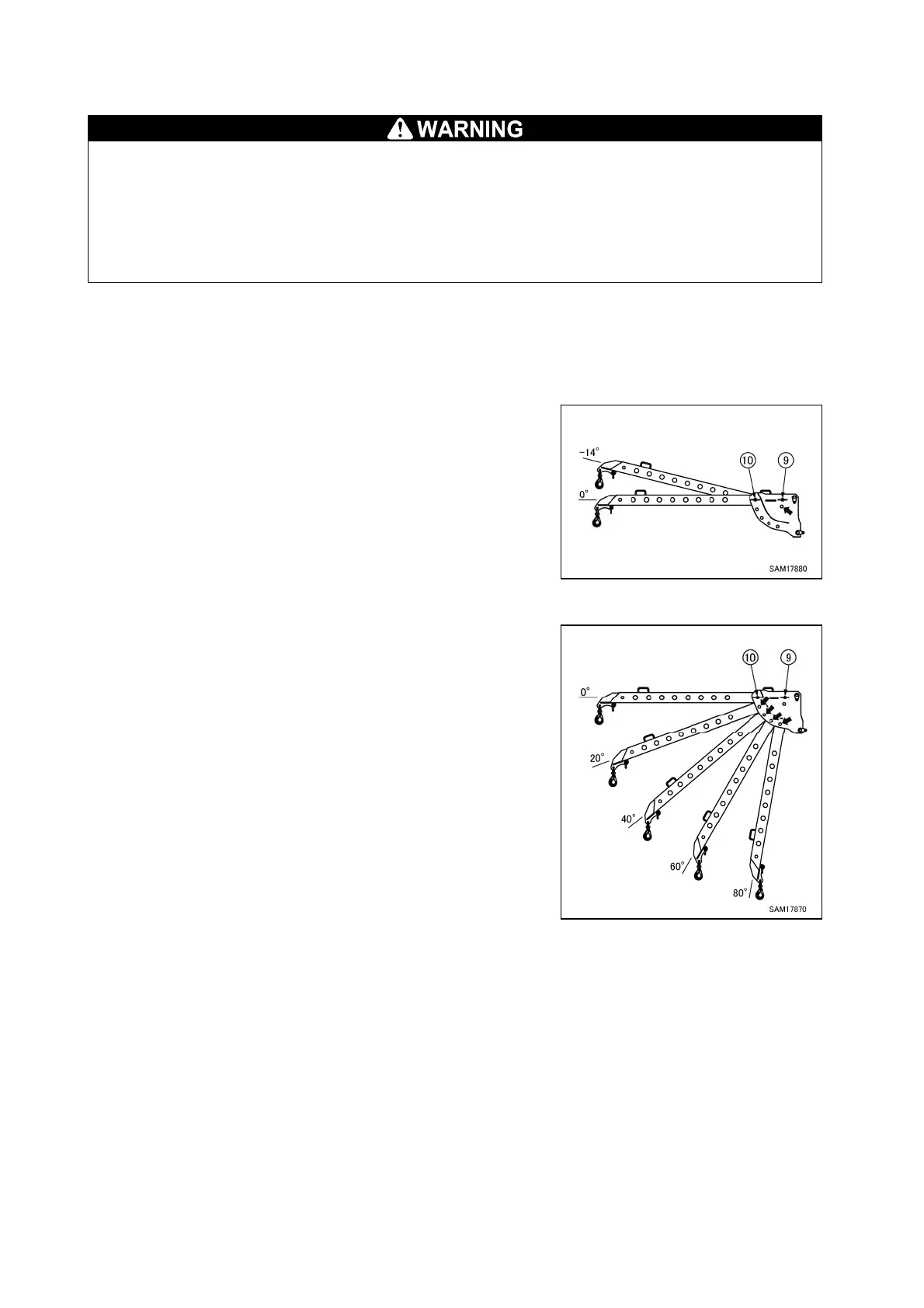

To change the searcher hook angle, follow the procedure below. The following procedure assumes the starting
point is “Offset Position 0 degree”.
[When Offset Position is -14°]
1. Keep the pin B (10) in the Offset Position 0° status, and move
the pin A (9) to the hole on one level down.
[When Offset Position is 20°, 40°, 60°, 80°]
1. Keep the pin A (9) in the Offset Position 0° status, and move
the pin B (10) to the hole for the desired angle.
Note:
Methods for mounting the searcher hook are described in the instruction manual, so follow its
contents for installation.
