Maeda MC815C - Components of the Transmitter; Names and Description of Remote Control Parts; Transmitter and Receiver

3-2
1. COMPONENTS OF THE TRANSMITTER
1.1 NAMES AND DESCRIPTION OF REMOTE CONTROL PARTS

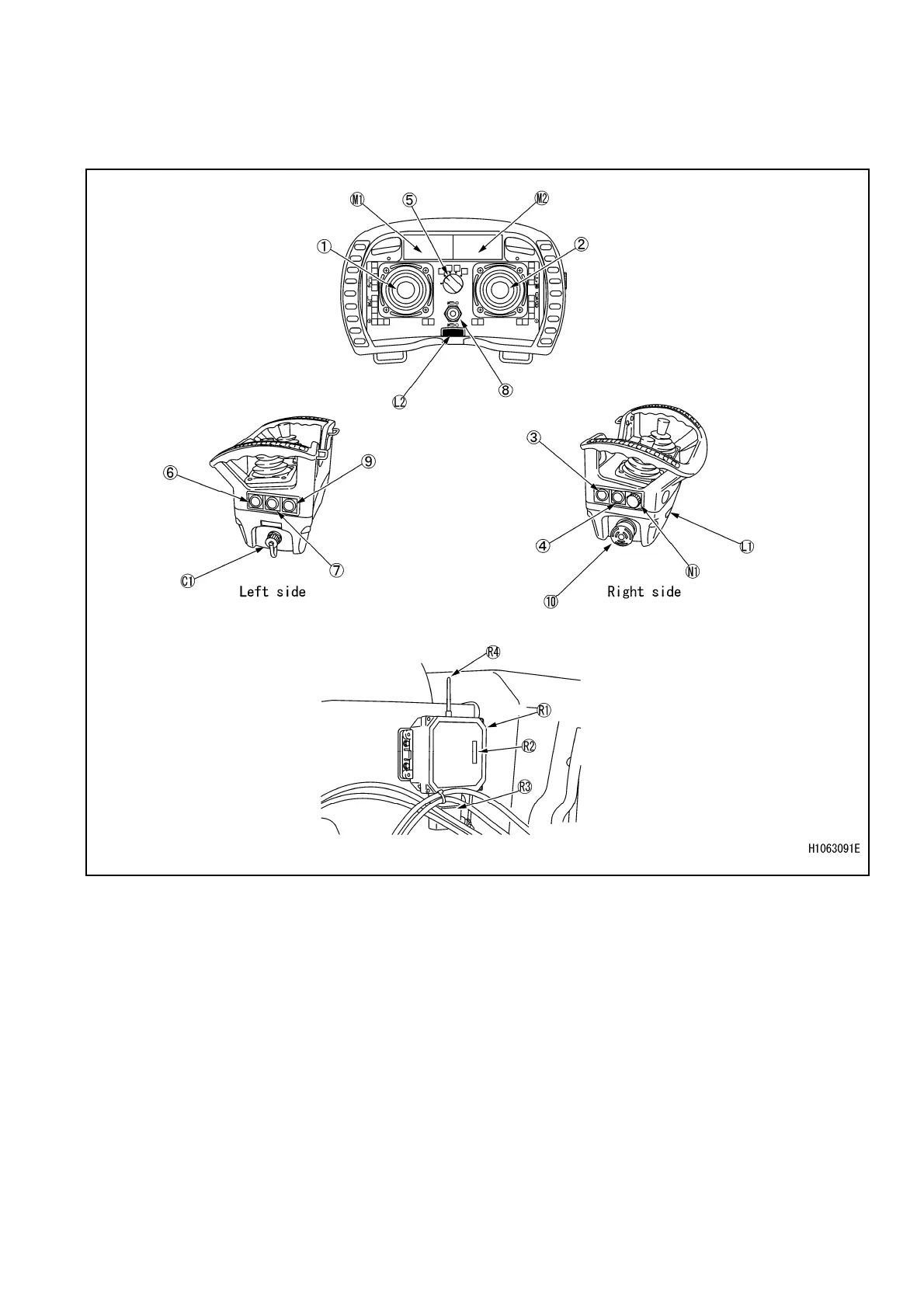

1.1.1 TRANSMITTER AND RECEIVER
(1) Left control lever
(2) Right control lever
(3) Remote controller power ON/OFF switch
(4) Engine Start/Stop Switch
(5) Operation mode selector switch
(6) Speed selector/outrigger select switch
(7) Load carrying/Fly jib change switch
(8) Accelerator control switch
(9) Horn switch
(10) Emergency stop/Remote controller power
OFF switch
(C1) Cable connection port
(L1) LED light (front)
(L2) LED light (control panel)
(M1) Left display
(M2) Right display
(N1) Display operation switch
(R1) Control box
(R2) Monitor LED
(R3) Connector connection port
(R4) Antenna
Transmitter
Receiver
