7-15

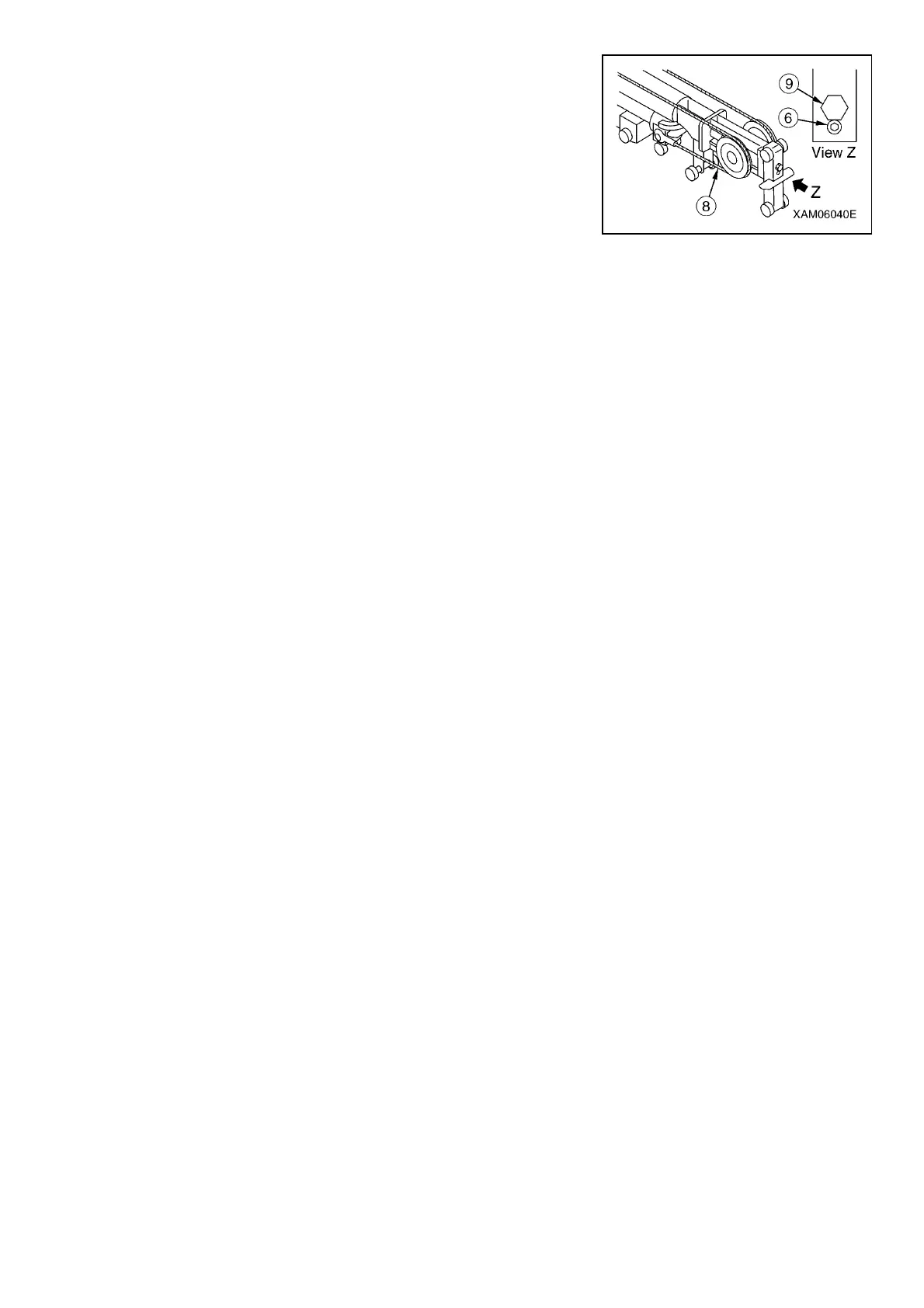

5. Adjustment of the No.5 boom extending wire rope (8)
(1) Remove lock bolt (6), and tighten adjusting bolt (9) in a direction
where the No.5 boom extending wire rope (8) becomes tight
(clockwise), until just before the No.5 boom begins to extend.
(2) Further tighten both the right and left adjusting nuts (4) for the
No.5 boom retracting wire rope (5) by two turns.
(3) Fix the adjustment nuts (4) of the No.5 boom retracting wire rope
(5) with the lock nut (3).
(4) Retighten the adjustment bolts (9) for the No.5 boom extending
wire rope (8) by two turns, and fix with the lock bolt (6).
6. Install the cover (2) on the boom tip with the mounting bolts (1) (3 bolts)
after adjustment.
