Press AUX, 6, and ENTER
(or press AUX once and
the RIGHT ARROW six
ti
mes). Default is "off."

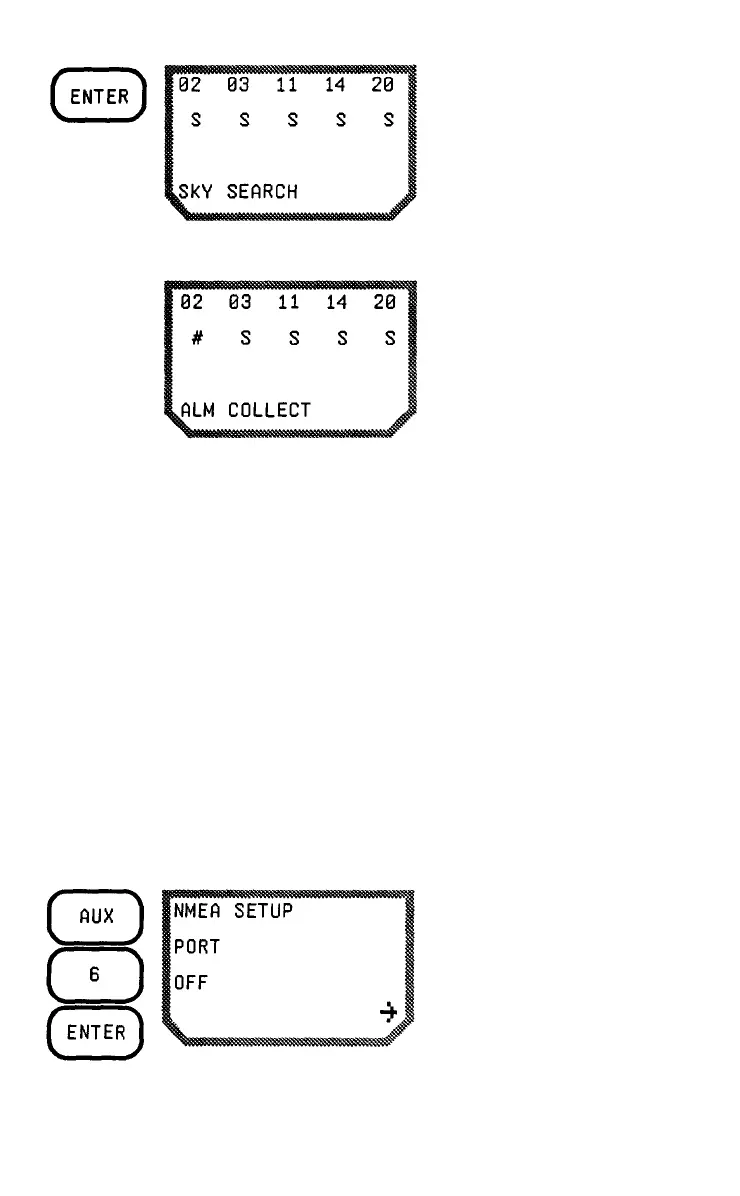

Press ENTER to initiate
Sky Search. The receiver
status screen appears on
the screen, and "SKY
SEARCH" is displayed on
the fourth line. The unit
searches for satellites until
one is located.
The ALM COLLECT
message appears on the
display when a satellite
has been located and
acquired, and the unit is
collecting an Almanac. DO
NOT turn the unit off when
this message is displayed.
5-9
AUX 6 - NMEA SETUP
If you will be supporting an NMEA device with the NAV 5000, the unit
must be set to an output message format that can be received by the
device.
Consult your autopilot, plotter, or radar manual for instructions on how
to connect to the NAV 5000 correctly, and to see what message format
is appropriate.
The NAV 5000 supports the following NMEA messages:
0180
0183A — BWC, APA, GLL, VTG
0183B — RMC, RMB
0183C — BWC, XTE, GLL, VTG
