OPENING THE BATTERY COVER
6.
Remove any dirt, sand, or other foreign matter from the battery
compartment seal.
7.
Replace the battery cover. Position the cover over the battery
clip and push up firmly until the door settles into place. Be sure
the door is secure.
2-2
4.

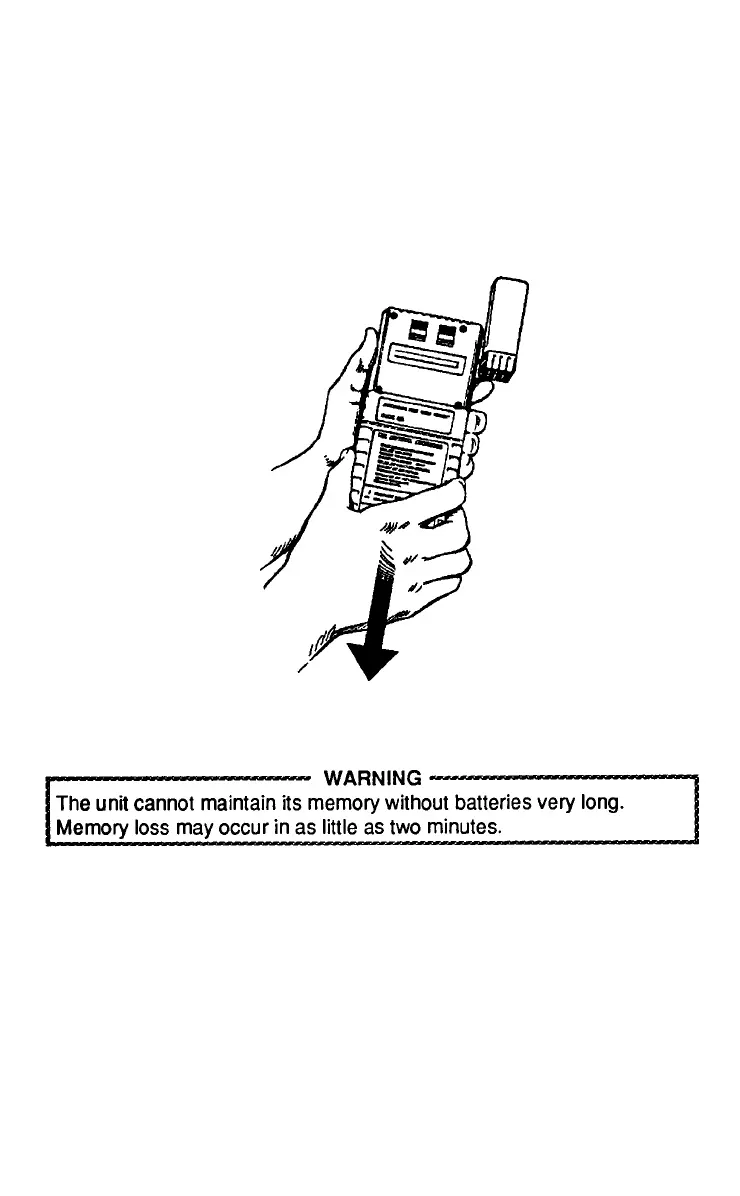

Holding the unit as shown in the illustration below, pull the
battery cover firmly towards the bottom of the unit until it
stops, then lift the door off. To create a seal against moisture,
the cover fits snugly, and will not move easily.
5.
Remove the old battery clip. Insert the new clip in the battery
compartment; it will fit only with the open side facing you and
the clip's external contacts on the right.
