A speed profile with fixed time and speed run can be driven on the dyno using the button
Driving
cycle
. The required curve plot is displayed on the screen for the test driver.
The various standard cycles are found in the directory
Cycles.
Load the cycles from here using the
button <F8 LOAD>.

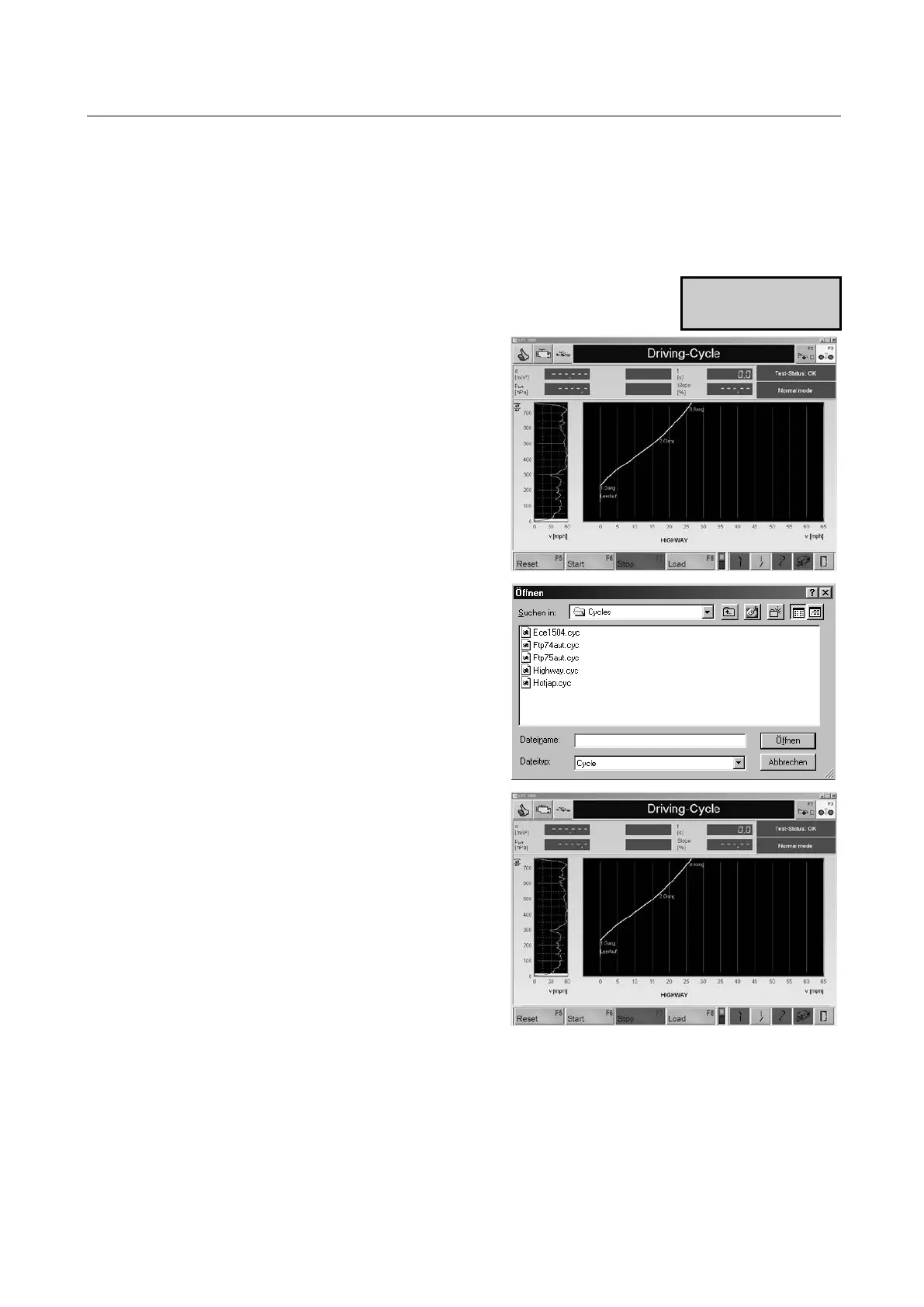

1 Use the button <F7 DRIVING CYCLE>
The following screen appears:
2 Use the button <F8 LOAD>
The selection screen appears.
3 Select the desired driving cycle with the cur-
sor key or the mouse and load this with
<OPEN>.
4 Start the driving cycle with the button <F6
START>.
5 The vehicle must now follow the curve plot of
the selected speed profile.
In the enlarged cut out of the total dia-
gram (right) a green point represents the cur-
rent actual value of the vehicle. The actual
value should move along the display blue
line. In the total diagram (left) a line is shown
which represents the part of the diagram
which is currently being shown.
6 The driving cycle can be terminated with the button <F7 STOP>.
7 The driving cycle is reset to the beginning with the button <F5 RESET>.
