Mahr GmbH • Millimar C1202
1.3 Using the measuring module
!
Measuring module N 1700 is not included with delivery of the C 1202.
A measuring module is required to operate the C 1202.

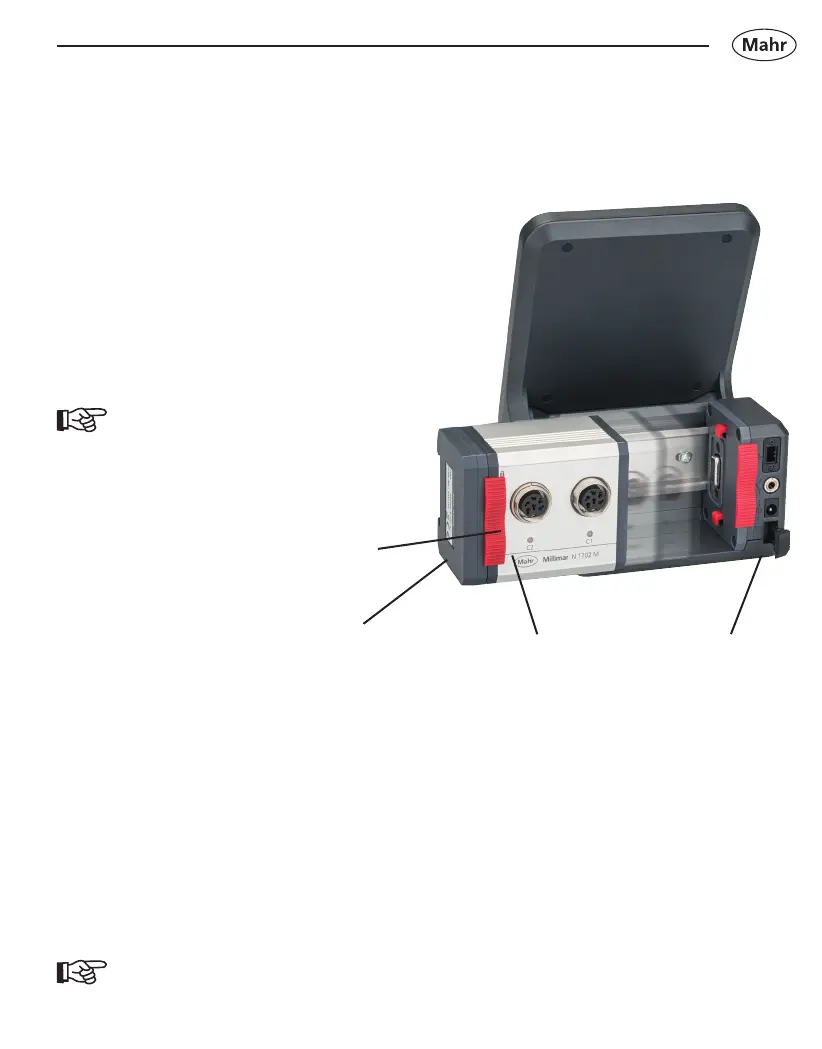

– Slide measuring module N 1700 with
bus termination module onto the rail
as far as the stop.
– Push the two red slide catches down
so that the measuring module and
the bus termination module cannot
come out accidentally.
Measuring module N1700 is
removed in the reverse order.
Compatible N 1700 measuring modules:
5331120 Millimar N 1702 M Module for 2 inductive probes
5331121 Millimar N 1702 T Module for 2 inductive probes
5331122 Millimar N 1702 U Module for 2 inductive probes
5331125 Millimar N 1702 M-HR Module for 2 inductive probes
5331161 Millimar N 1702 Vss * Module for 2 incremental probes
5331150 Millimar N 1701 PM-2500 Module for 1 pneumatic measuring instrument
5331151 Millimar N 1701 PM-5000 Module for 1 pneumatic measuring instrument
5331152 Millimar N 1701 PM-10000 Module for 1 pneum. measuring instrument
5331155 Millimar N 1701 PF-2500/5000 Module for 1 pneum. measuring instrument
5331156 Millimar N 1701 PF-PF25./50. 4-J Module for 1 pneum. measuring instrument
5331157 Millimar N 1701 PF-10000 Module for 1 pneum. measuring instrument
Up to two N 1701 PM and N 1701 PF measuring modules can be used at the same time.
* from rmware C 1202 version 1.1.0.0
Bus termination module
N 1700 module C 1202
Slide catch
