Mahr GmbH • Millimar C1202
6 System

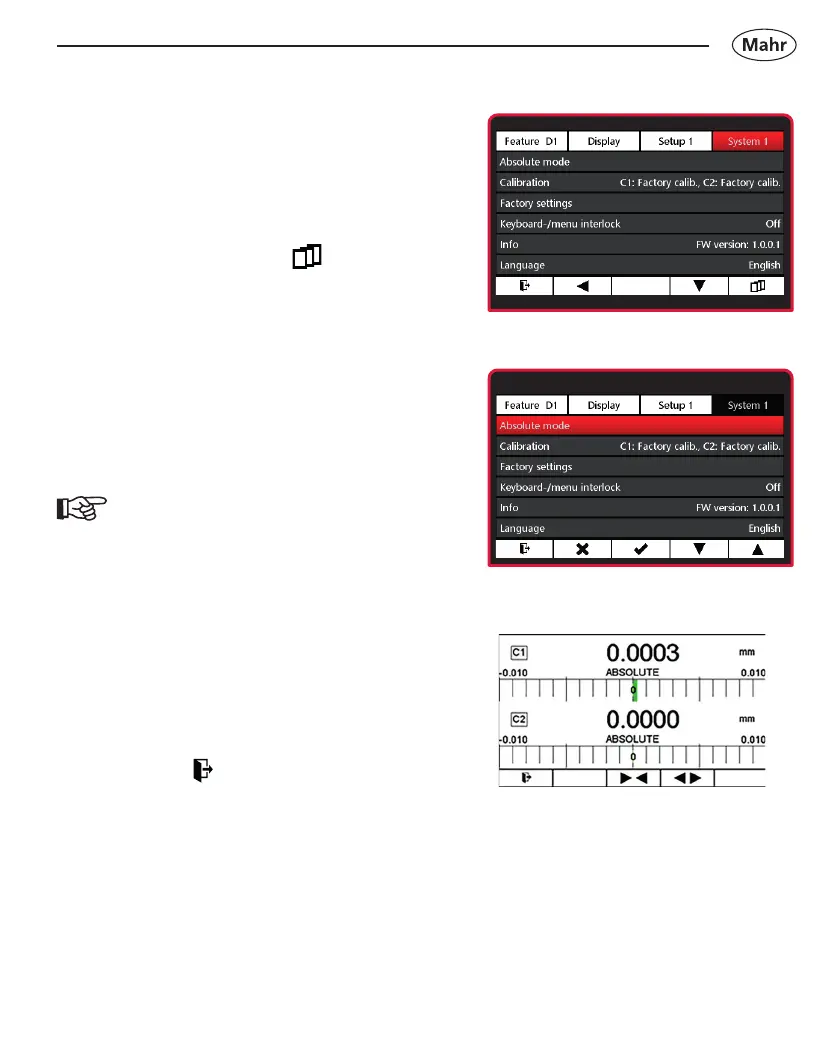

6.1 System 1
– Press the ON/OFF key
=> Menu appears.
– Press Ó,
▼
or
▼
and to select
System 1.
6.1.1 Setting up the transducer
– Select the Absolute mode using the
▼ or ▲ key.
– Select using 4 key or exit submenu
using the Ó key.
One or two measuring channels will
appear, depending on the N 1700
module used. The value displayed is
the direct value from the measuring
sensor.
– Adjust measuring probe
mechanically close to "0".
– The scaling can be adjusted with the
▼
▼
or
▼
▼ key.
– Press the
key to leave the settings
menu.
