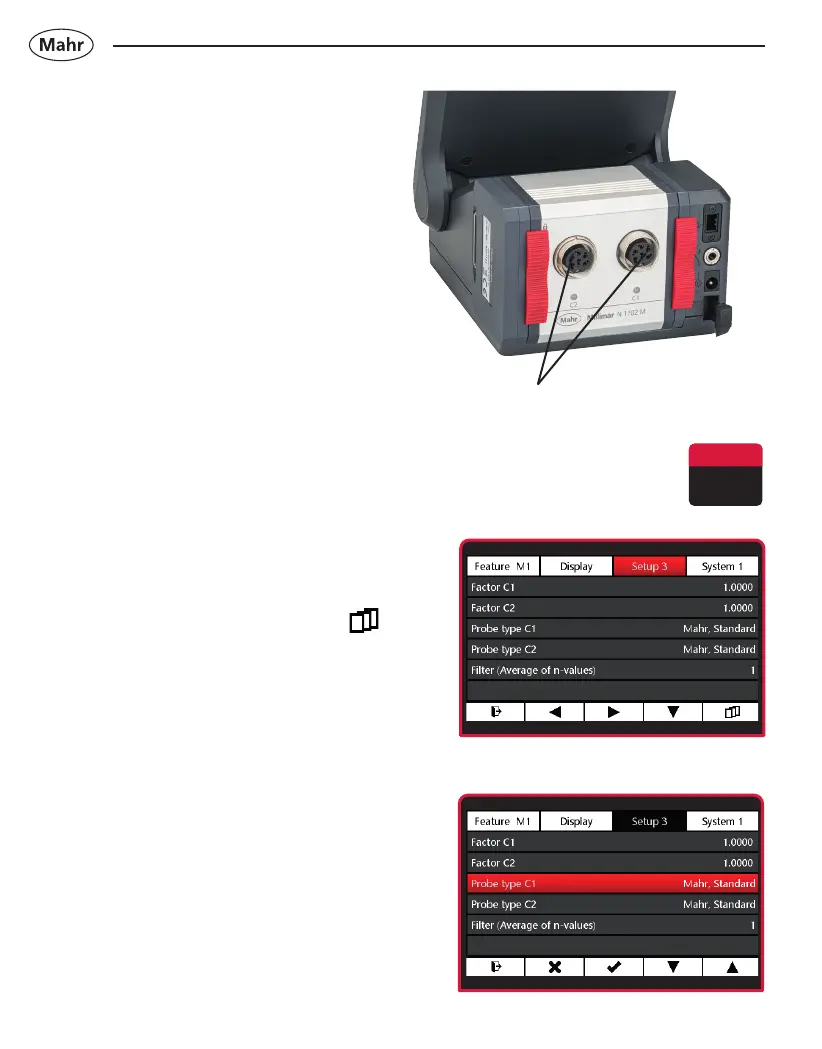

Mahr GmbH • Millimar C1202
2.4
Connecting the measuring probe
–
Connect the measuring probe to
probe input C1
2.5
Selecting the probe type
Press the ON/OFF key
=>
Menu appears
– Select
Setup 3
with
▼
or
▼
and
–
Select submenu
Probe type C1
with
▼
or
▲
–
Select using
4
key or exit submenu
using
Ó
key
Probe input C1 and C2
17
19
Table of Contents
Table of Contents
5
Delivery and Connection
8
Unpacking
8
Scope of Delivery
10
Using the Measuring Module
11
Symbols
12
Operating Elements and Interfaces
14
Display and Operating Keys
14
Keys with Dual Function
15
Mode Display for Master Measurement
16
Ports
16
Initial Operation
17
Switching on
17
Selecting the Display Language
17
Setting the Measurement Unit
17
Connecting the Measuring Probe
18
Selecting the Probe Type
18
Setting up the Probe
20
Measuring Screen
21
Switching off
21
Configuring the Feature Menu
22
Select Feature
22
Configuring the Feature
22
Formula
22
Factor
23
Function
24
Connection
26
Divisor
27
Master
29
One-Point Master Measurement
29
Two-Point Master Measurement
30
Nominal Value
34
Tolerance
35
Warning Limits
38
Resolution
41
Length Resolution
41
Resolution Angle
42
Name
42
Display Style
43
Display Center at
45
Display Menu
46
Brightness
46
Screensaver
46
Setup
47
Setup 1
47
Feature Selection
47
Unit Length
48
Unit Angle
48
Master Measurement Mode
49
Number of Masters
50
Master Reset
50
Setup 2
51
Foot Switch (Switching Input)
51
Sending Data
53
Work Mode
54
Measuring Time
56
Break Time
57
Start Delay
58
Setup 3
60
Factor C1
60
Factor C2
60
Probe Type C1
61
Probe Type C2
61
Filters (Average of N-Values)
62
System
63
System 1
63
Setting up the Transducer
63
Calibration
64
Calibration C1
64
Customer Calibration Activation
64
Performing Customer Calibration
65
Activating a Factory Calibration
68
Correction C2
68
Symmetry C1 to C2
69
Factory Settings
72
Menu Interlock
73
Info
75
Selecting the Language
75
System 2
76
Updating Module N 1700
76
Managing Parameters
77
Miscellaneous
79
Service
80
Description of the Interfaces
81
Compatible Data Cables
81
Data Transmission Parameters
82
Technical Data
84
Compact Length Measuring Instrument Millimar C 1202
84
Compatible Probes for the Millimar C 1202
86
Accessories
88
Compatible N 1700 Measuring Modules
88
Other Accessories
88
