3.2.1.3 Connection

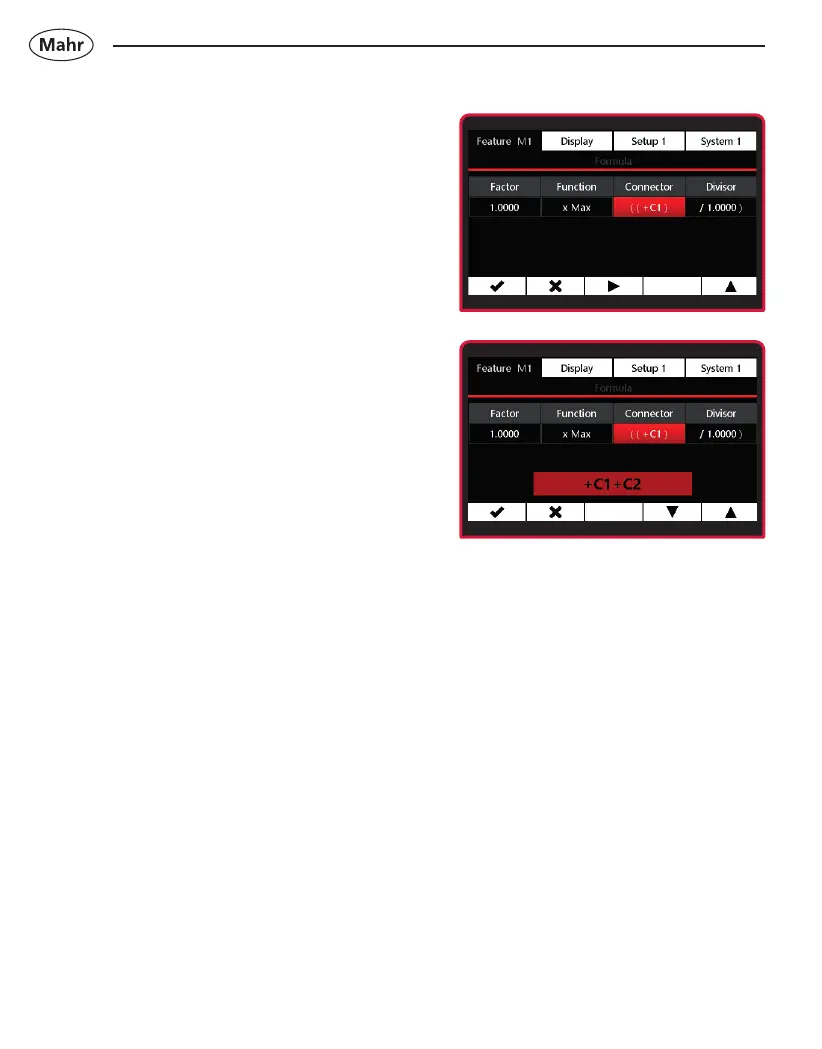

– Use the 4 key to select the
Connector submenu.
– Use the ▲ or ▼ key to select the
relevant function.
– Use the 4 key to conrm the function
or Ó to exit the submenu.
The options are:
+C1 Raw value of transducer at measuring channel C1
-C1 inverted raw value of transducer at measuring channel C1
+C2 Raw value of transducer at measuring channel C2
-C2 inverted raw value of transducer at measuring channel C2
+C1 + C2 Sum of transducer raw values at measuring channels C1 and C2
+C1 - C2 Difference of the raw values. If C2<C1, the difference is positive;
if C2 > C1, it is negative
+C2 – C1 Difference of the raw values. If C2>C1, the difference is positive;
if C2 < C1, it is negative
-C1-C2 Difference between the two inverted raw values of the transducers
at measuring channels C1 and C2
