44
Mahr GmbH • Millimar C1202

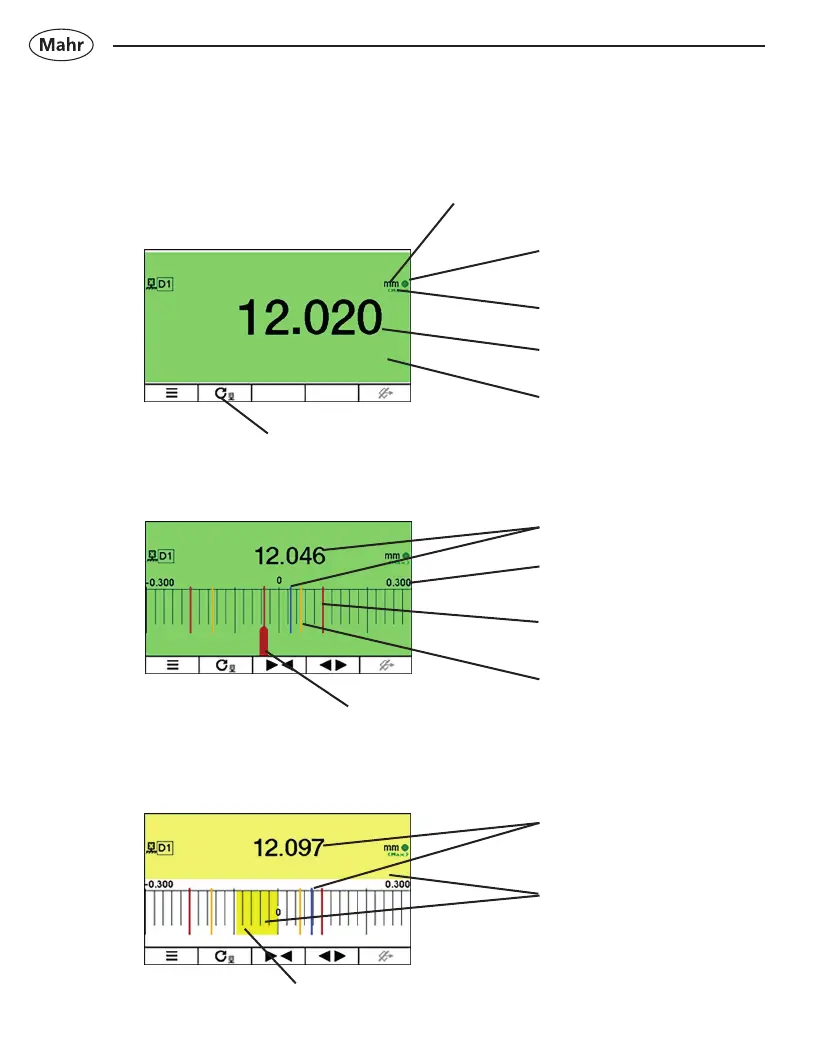

Examples for display style 1 feature with tolerances, warning limits and
max measuring function:
– "Digital" display style
– "Dial and Digital" display style
– "Bargraph and Digital" display style
Reset max value
Unit
Measurement active
Function (max)
Measured value (max)
Measured value (max)
is within the tolerance,
background is green
Warning limit
Tolerance limit
Scale end
Measured value (max)
Pointer (current measured value)
Measured value (max)
Measured value (max) is
greater than the warning
limit, background is yellow
Bar (current measured value)
