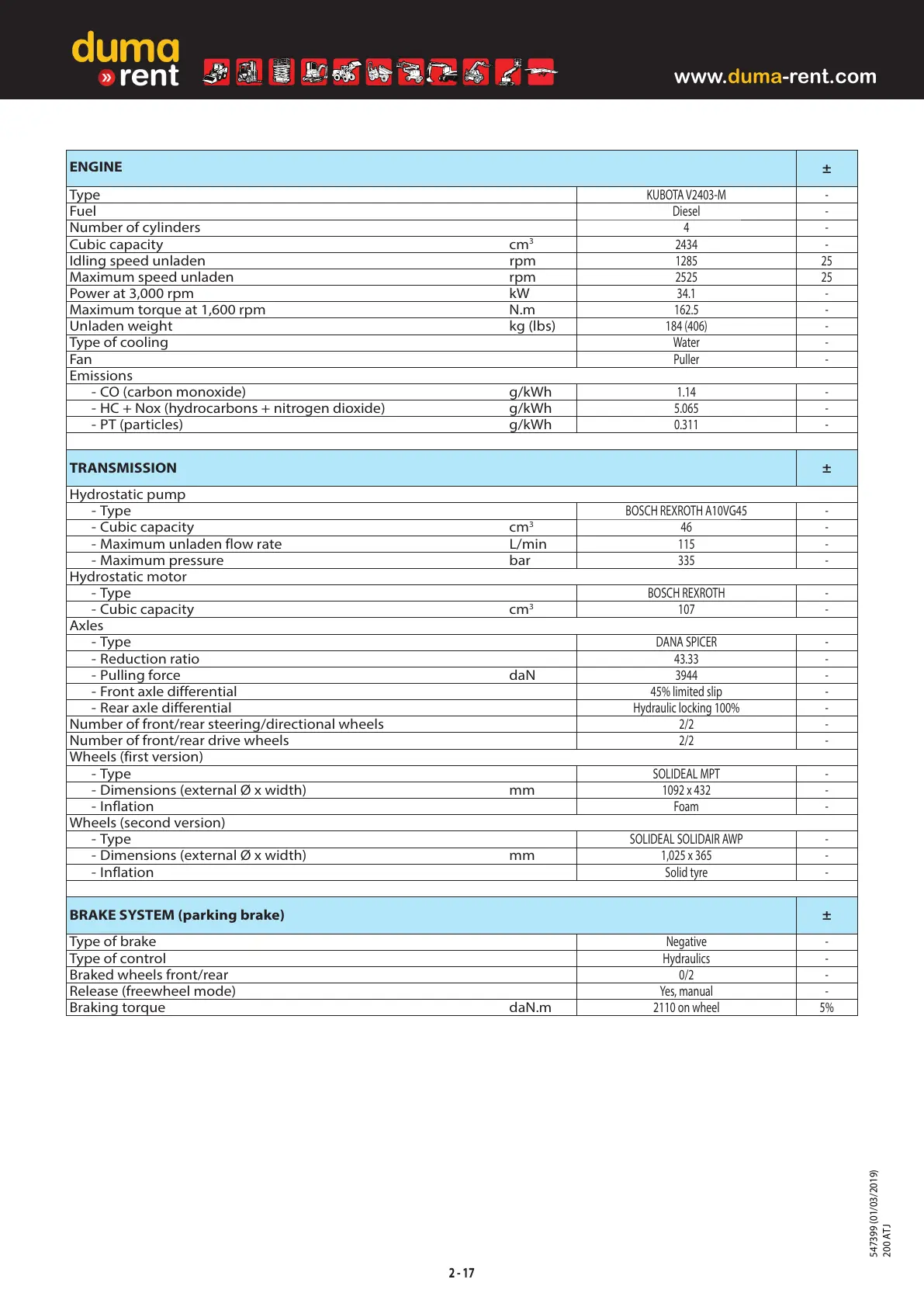

ENGINE
±
Type
KUBOTA V2403-M -
Fuel Diesel -
Number of cylinders 4-
Cubic capacity cm
3
2434 -
Idling speed unladen rpm 1285 25
Maximum speed unladen rpm 2525 25
Power at 3,000 rpm kW 34.1 -
Maximum torque at 1,600 rpm N.m 162.5 -
Unladen weight kg (lbs) 184 (406) -
Type of cooling Water -
Fan Puller -
Emissions
- CO (carbon monoxide) g/kWh
1.14 -
- HC + Nox (hydrocarbons + nitrogen dioxide) g/kWh 5.065 -
- PT (particles) g/kWh 0.311 -
TRANSMISSION ±
Hydrostatic pump
- Type
BOSCH REXROTH A10VG45 -
- Cubic capacity cm
3
46 -
- Maximum unladen flow rate L/min 115 -
- Maximum pressure bar 335 -
Hydrostatic motor
- Type
BOSCH REXROTH -
- Cubic capacity cm
3
107 -
Axles
- Type
DANA SPICER -
- Reduction ratio 43.33 -
- Pulling force daN 3944 -
- Front axle differential 45% limited slip -
- Rear axle differential Hydraulic locking 100% -
Number of front/rear steering/directional wheels 2/2 -
Number of front/rear drive wheels 2/2 -
Wheels (first version)
- Type
SOLIDEALMPT -
- Dimensions (external Ø x width) mm 1092 x 432 -
- Inflation Foam -
Wheels (second version)
- Type
SOLIDEALSOLIDAIRAWP -
- Dimensions (external Ø x width) mm 1,025 x 365 -
- Inflation Solid tyre -
BRAKE SYSTEM (parking brake) ±
Type of brake
Negative -
Type of control Hydraulics -
Braked wheels front/rear 0/2 -
Release (freewheel mode) Yes, manual -
Braking torque daN.m 2110 on wheel 5%
547399 (01/03/2019) 200 ATJ
www.duma-rent.com

Manitou 200 ATJ Specifications

General

Lift Capacity	230 kg
Drive Speed	4.5 km/h
Gradeability	40%
Outriggers	No
Horizontal Outreach	12.1 m
Maximum Outreach	12.1 m
Steering	4-wheel
