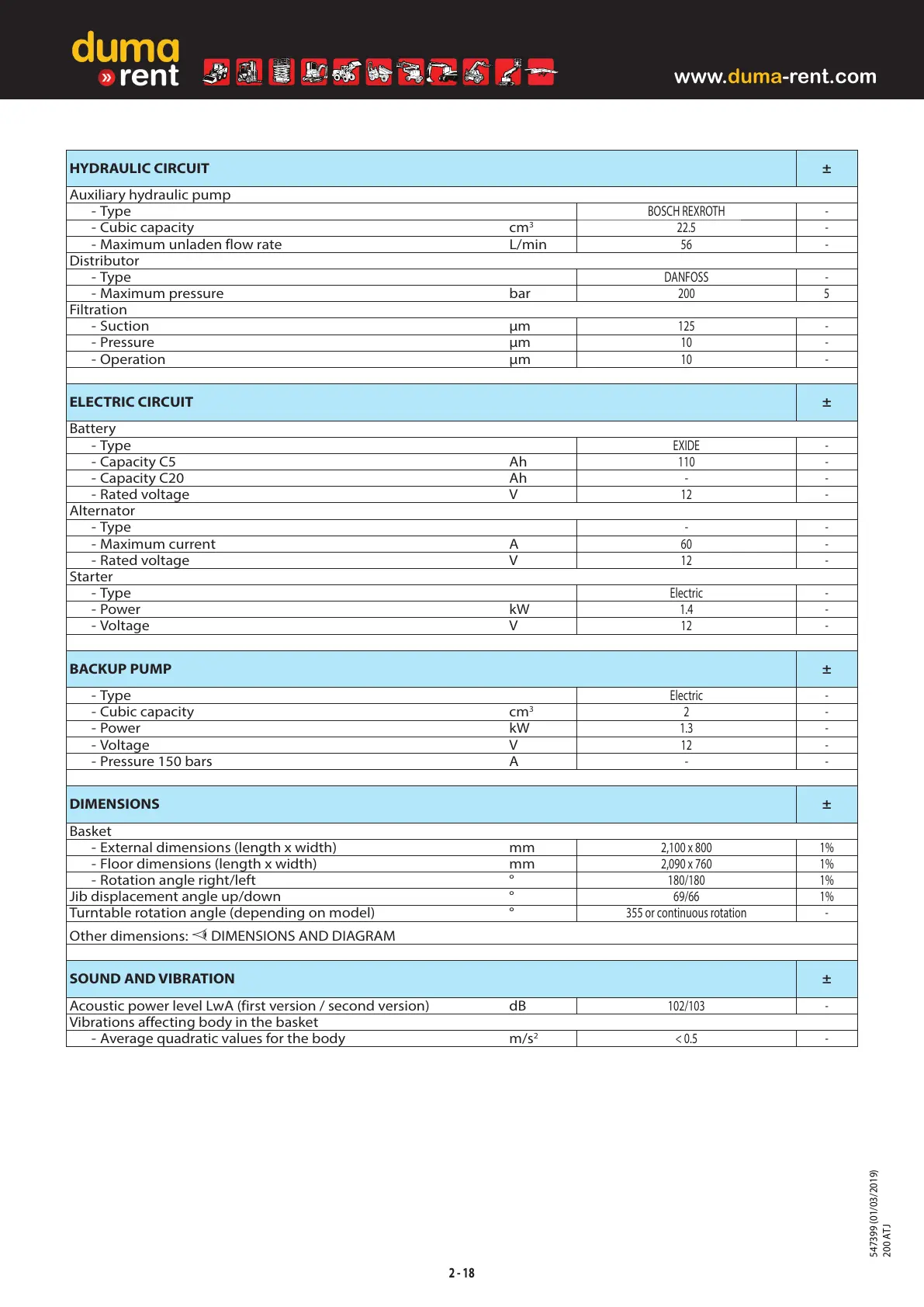

2 - 18
HYDRAULIC CIRCUIT ±
Auxiliary hydraulic pump
- Type
BOSCH REXROTH -
- Cubic capacity cm
3
22.5 -
- Maximum unladen flow rate L/min
56 -
Distributor
- Type
DANFOSS -
- Maximum pressure bar
200 5
Filtration
- Suction μm
125 -
- Pressure μm
10 -
- Operation μm
10 -
ELECTRIC CIRCUIT ±
Battery
- Type
EXIDE -
- Capacity C5 Ah
110 -
- Capacity C20 Ah
--
- Rated voltage V
12 -
Alternator
- Type
--
- Maximum current A
60 -
- Rated voltage V
12 -
Starter
- Type
Electric -
- Power kW
1.4 -
- Voltage V
12 -
BACKUP PUMP ±
- Type
Electric -
- Cubic capacity cm
3
2-
- Power kW
1.3 -
- Voltage V
12 -
- Pressure 150 bars A
--
DIMENSIONS ±
Basket
- External dimensions (length x width) mm
2,100 x 800 1%
- Floor dimensions (length x width) mm
2,090 x 760 1%
- Rotation angle right/left °
180/180 1%
Jib displacement angle up/down °
69/66 1%
Turntable rotation angle (depending on model) °
355 or continuous rotation -
Other dimensions: DIMENSIONS AND DIAGRAM
SOUND AND VIBRATION ±
Acoustic power level LwA (first version / second version) dB
102/103 -
Vibrations affecting body in the basket
- Average quadratic values for the body m/s
2
<0.5 -
547399 (01/03/2019)
200 ATJ
www.duma-rent.com
