2 - 29
4
#1
4
#2
5
#1
5
#2

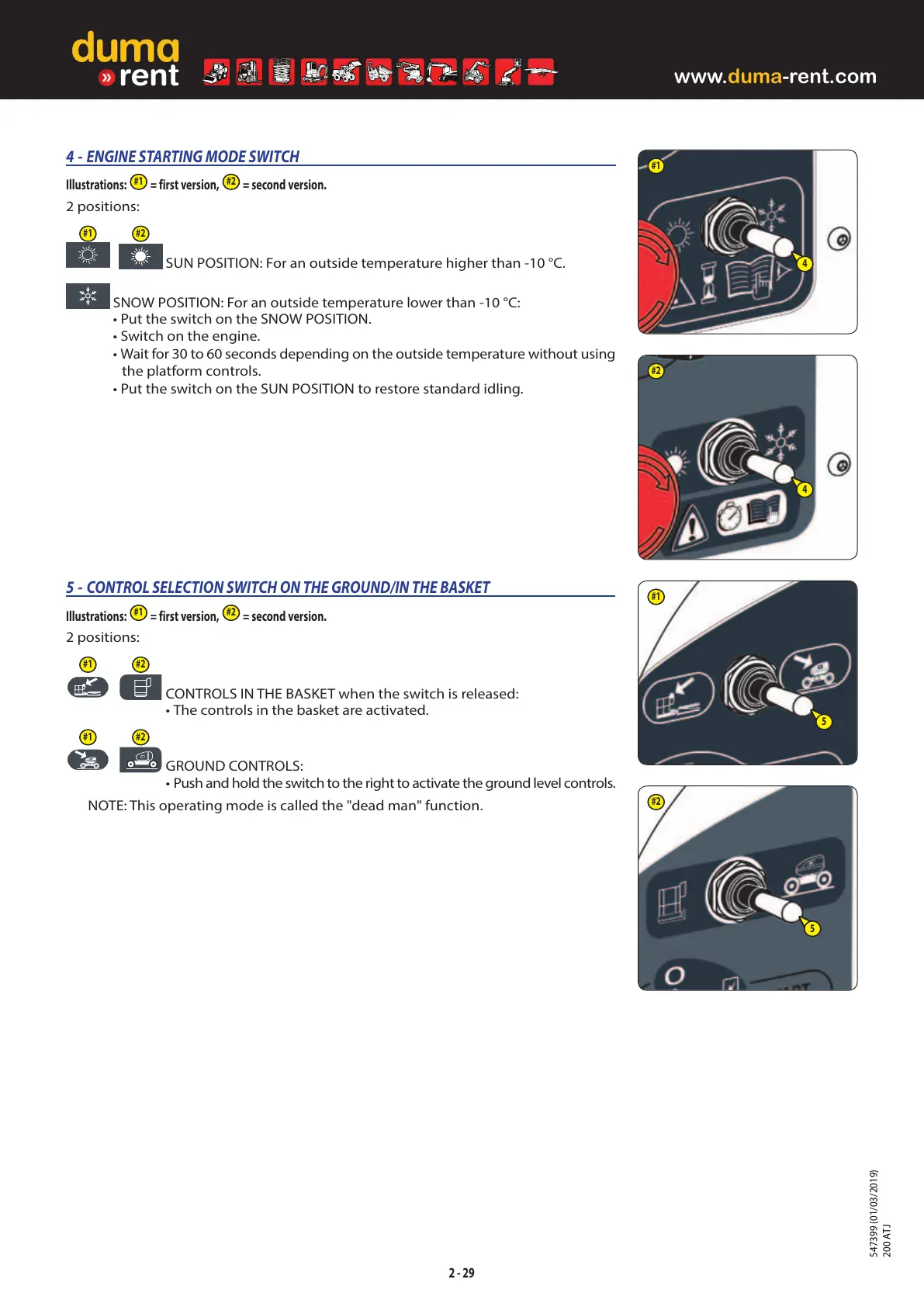

4 - ENGINE STARTING MODE SWITCH
Illustrations:
#1
= first version,
#2
= second version.
2positions:
#1 #2
SUN POSITION: For an outside temperature higher than -10°C.
SNOW POSITION: For an outside temperature lower than -10°C:
• Put the switch on the SNOW POSITION.
• Switch on the engine.
• Wait for 30 to 60 seconds depending on the outside temperature without using
the platform controls.
• Put the switch on the SUN POSITION to restore standard idling.
5 - CONTROL SELECTION SWITCH ON THE GROUND/IN THE BASKET
Illustrations:
#1
= first version,
#2
= second version.
2positions:
#1 #2
CONTROLS IN THE BASKET when the switch is released:
• The controls in the basket are activated.
#1 #2
GROUND CONTROLS:
• Push and hold the switch to the right to activate the ground level controls.
NOTE: This operating mode is called the "dead man" function.
547399 (01/03/2019) 200 ATJ
