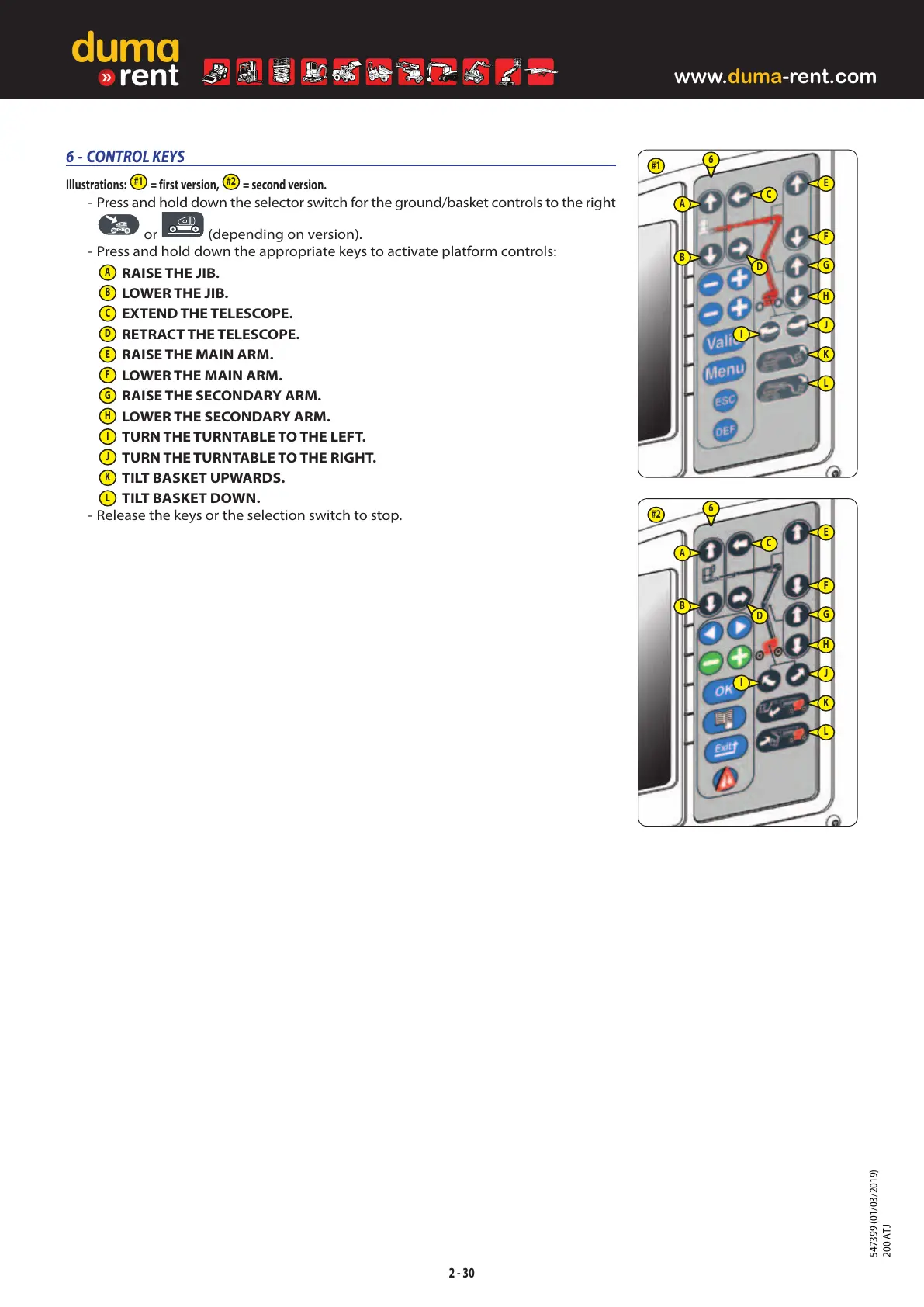

6 - CONTROL KEYS
Illustrations:
#1
= first version,
#2
= second version.
- Press and hold down the selector switch for the ground/basket controls to the right
or (depending on version).
- Press and hold down the appropriate keys to activate platform controls:
A
RAISE THE JIB.
B
LOWER THE JIB.
C
EXTEND THE TELESCOPE.
D
RETRACT THE TELESCOPE.
E
RAISE THE MAIN ARM.
F
LOWER THE MAIN ARM.
G
RAISE THE SECONDARY ARM.
H
LOWER THE SECONDARY ARM.
I
TURN THE TURNTABLE TO THE LEFT.
J
TURN THE TURNTABLE TO THE RIGHT.
K
TILT BASKET UPWARDS.
L
TILT BASKET DOWN.
- Release the keys or the selection switch to stop.
