Maintenance work on the carrier
7.3 Engine
25.11.2016
Maintenance manual 3 302 364 en 7 - 19
GMK 4100L-1
Check the level
of dirt

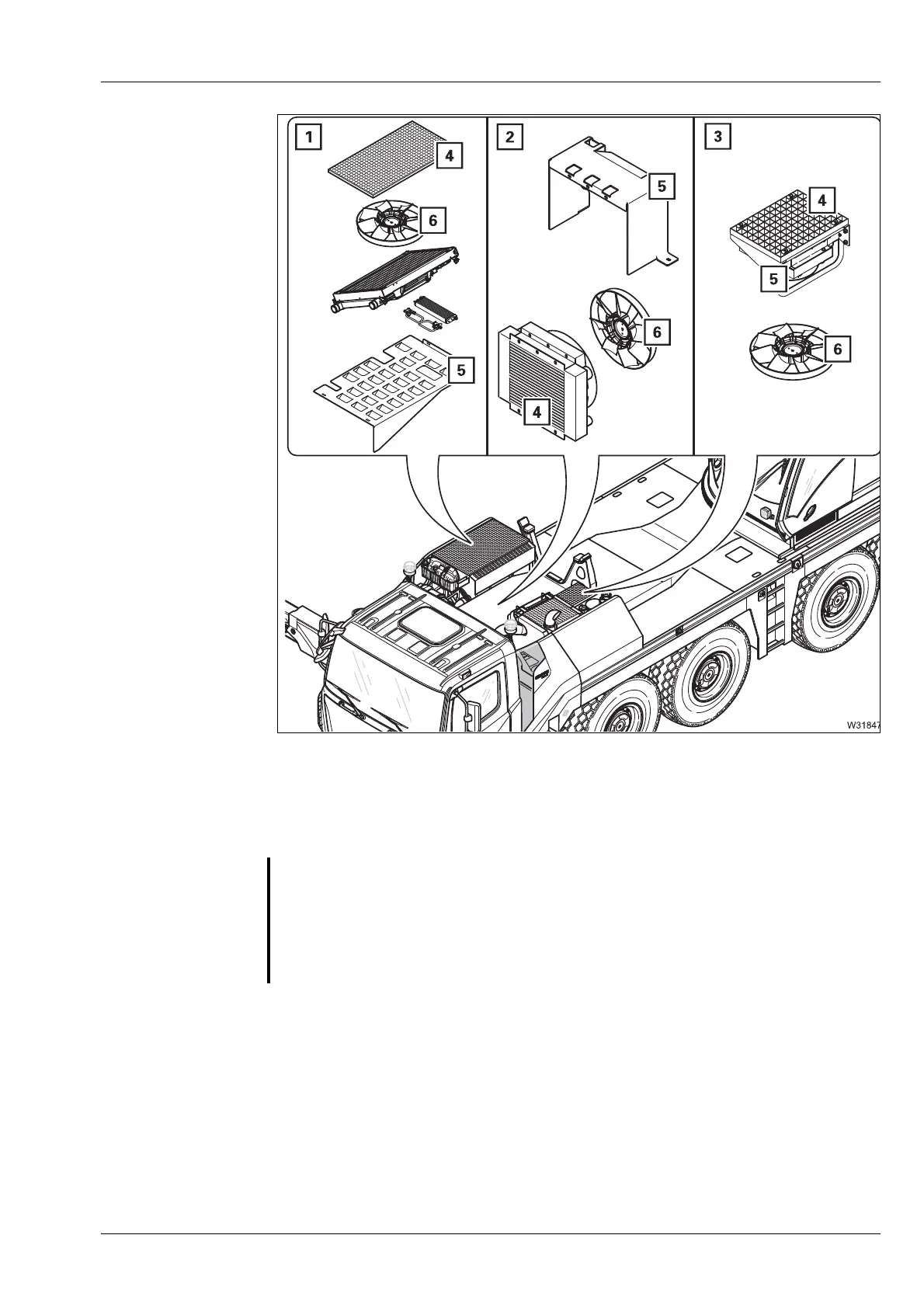

The radiator units (1), (2) and (3) are protected by
grilles (4) and plates (5).
The fan impellers (6) are located under the grilles. When the engine is
running, the fan impeller rotates under the grille!
s
G
Risk of injury at the fan impeller!
When the fan impeller is rotating it can trap the fingers of your hand and
amputate them. Neve
r reach into a fan impeller that is rotating. Do not push
any tools through the grille to clean it.
Always stop the engine before attempting to clean the fan impeller and
radiator fins.
