Maintenance work on the carrier
7.20 Other maintenance work
7 - 140 3 302 364 en Maintenance manual
GMK 4100L-1
25.11.2016
7.20.2 Lubricating the outrigger beams
• Comply also with the à Run-in regulations, p. 4 - 1.
Grease, spare
parts, tools
– Brush or roller.
• Fully extend all outrigger beams;
à Operating Instructions.

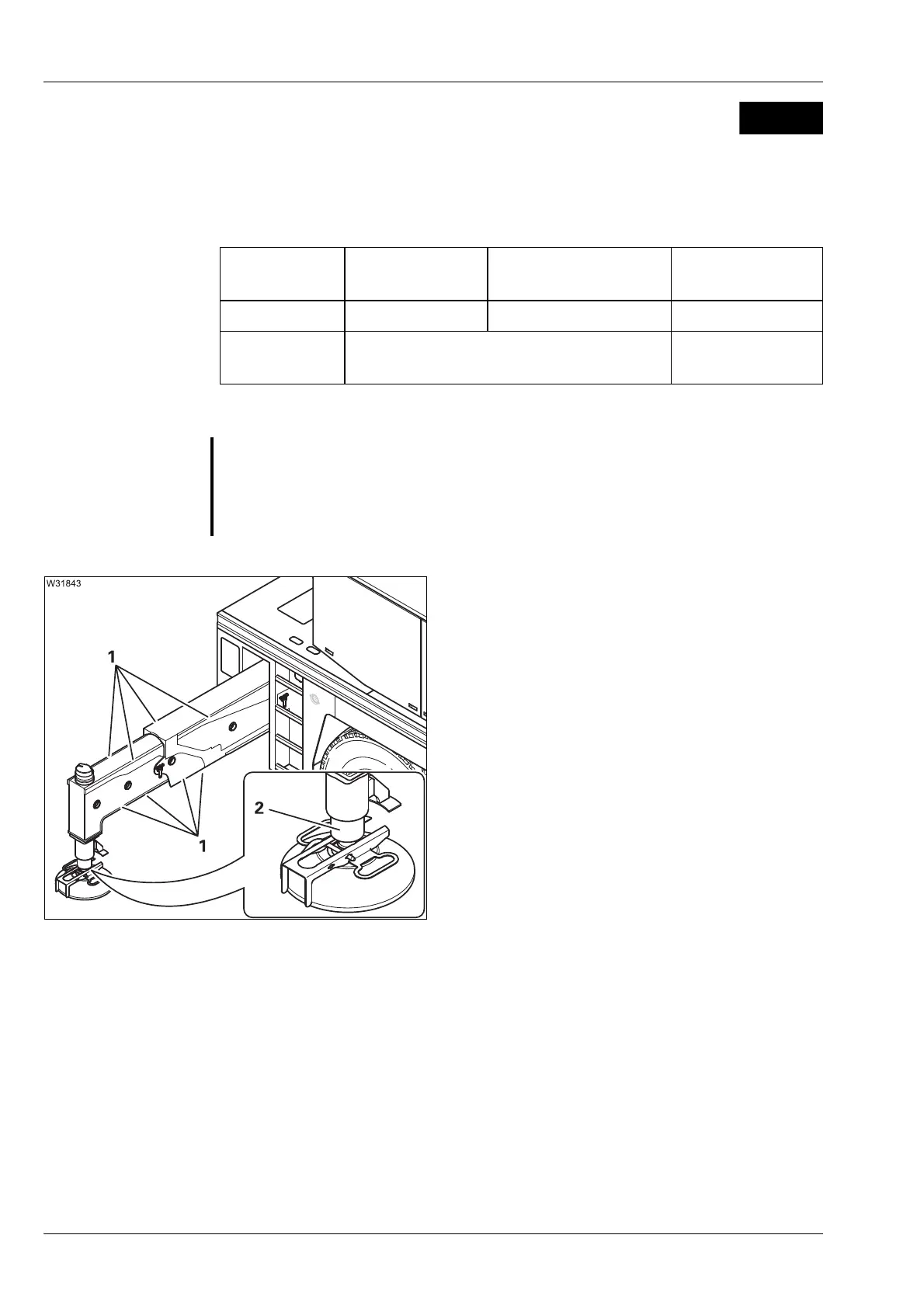

• Apply the grease to both sides of the slide
faces (1) on all the outrigger beams.
• Extend and retract the outrigger beams
several times.
• Remove any excess grease.
• Clean the uncovered end (2) of the outrigger
cylinder and bearing surfaces on the
outrigger pad by removing old grease, dirt
particles and rust.
• Spray the uncovered end (2), making sure
the grease coating is evenly distributed.
After every high-pressure cleaning operation on the truck crane
• Lubricate the outrigger beams.
M 1
Lubricating
grease
Designation
to DIN 51502
Specification
classification
GROVE part no.
Grease KP - 1K - 50 DIN 51825 03233369
Spray Spray on Berulub; 0.5 litres
(spray-on)
01929824
G
Danger of crushing by extending outrigger beams.
Ensure that there is sufficient room around the crane. Warn any persons
nearby before exten
ding the outrigger beams.
Observe the safety instructions in the operating manual.
