Manitowoc Grove GMK 4100L-1 - Lubricating the Connecting and Socket Pins

Maintenance work on the carrier
7.20 Other maintenance work
7 - 142 3 302 364 en Maintenance manual
GMK 4100L-1
25.11.2016

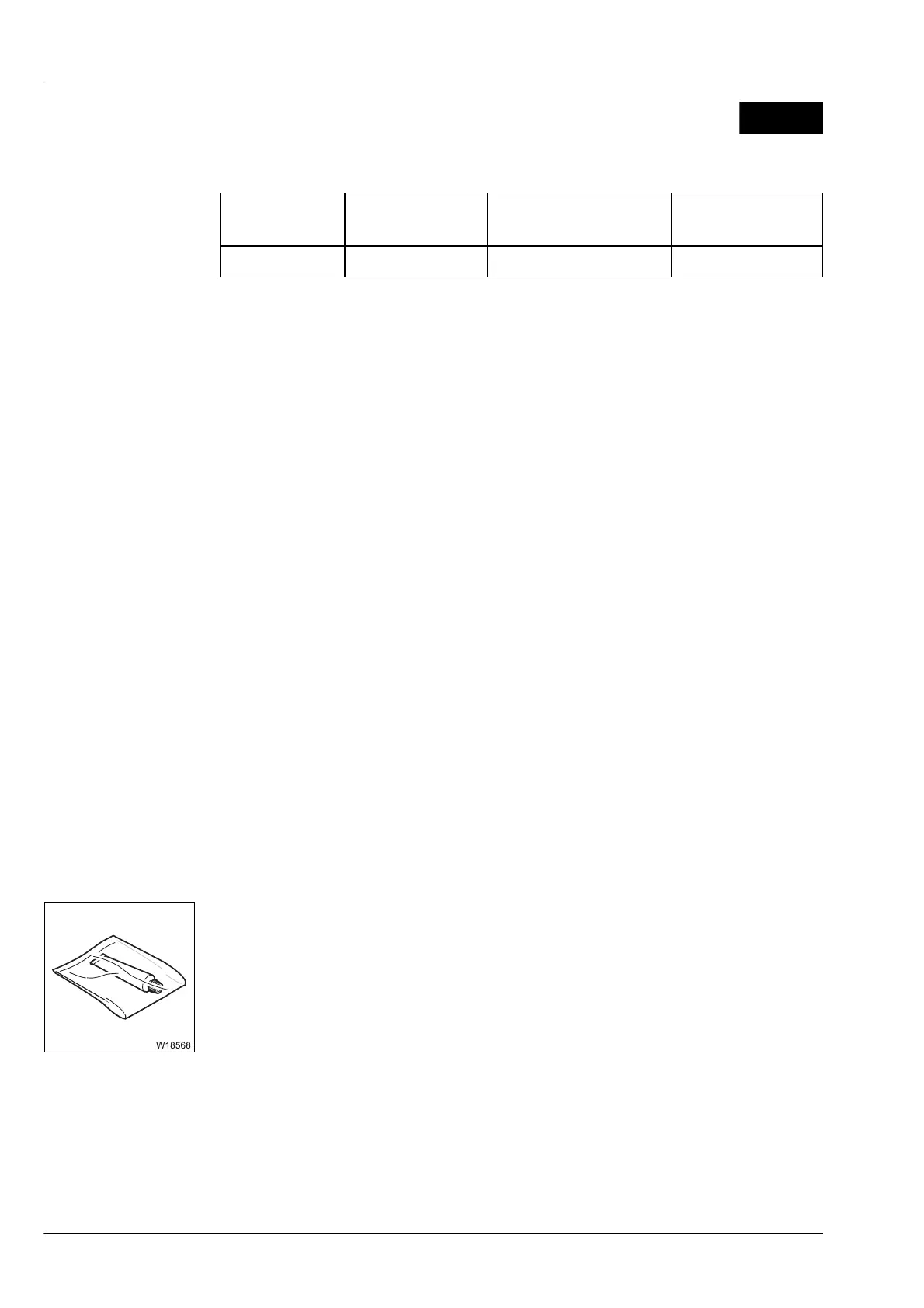

7.20.5 Lubricating the connecting and socket pins
Grease, tools
–Brush.
Checking Depending on the equipment, there are various connecting and socket pins
on the carrier su
ch as:
– Fastenings to hold the hook block on the bumper while driving on the
road
– Clamps for ladders on the carrier
– Hinged warning panels under the bumper,
– Fastenings for the outrigger pads and socket pins on the outrigger,
– Locks on the removable covers,
– Hinges on the doors and covers of the storage box.
• Check the pins for wear such as rust, deformation, broken clips, chains
and pin-type keepers.
• If the pins are damaged, have them replaced by Manitowoc Crane Care
or an authorised GROVE dealer or your qualified repair crew.
• Use only authentic replacement pins.
Lubricating
• Clean the pins.
• Lubricate the pins with a brush.
M 12
Lubricating
grease
Designation
to DIN 51502
Specification
classification
GROVE part no.
Grease KP - 1K - 50 DIN 51825 03233369
