7.1.2 Tilting and lowering the driver's cab
• Check whether the truck crane GMK 4100L-1 is fitted with driver's cab that
can be tilted (additional equipment).
A driver's cab that can be tilted makes it easier to access the front of the
motor and maintenance work can be performed more conveniently.
Safety
instructions

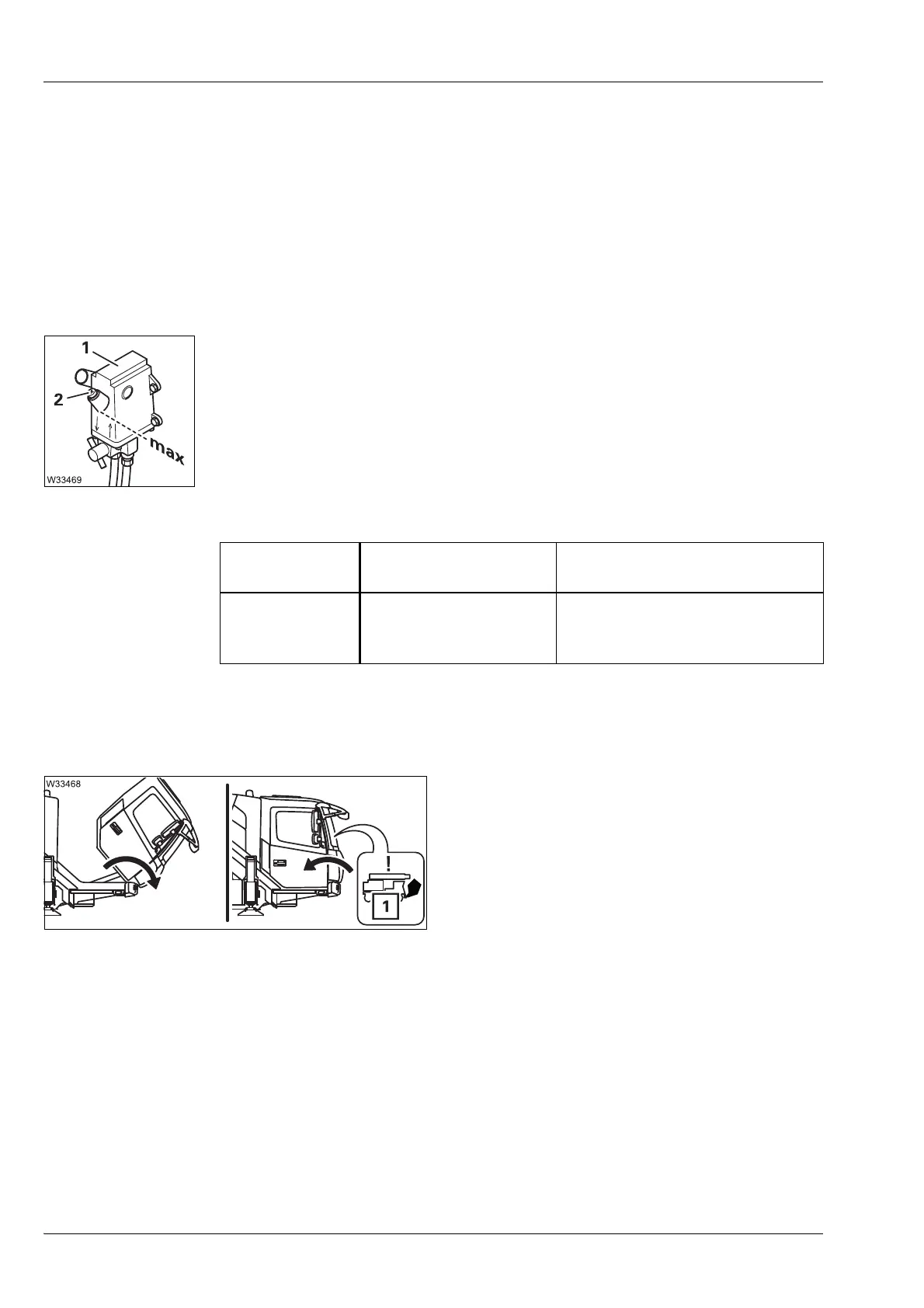

The driver's cab is tilted using a hydraulic hand pump (1).
• You can find information on how to operate the hand pump in the
operating manual. Make sure you observe the safety instructions
mentioned there;
à Operating Instructions; Tilting and lowering the driver's
cab
.
Oil, tools
– Oil level: Lower edge of opening (2). Check
every 12 months.
– Refilling: When required via opening (2).
– Lever for hand pump (1) fro
m the toolbox.
Before maintenance work
• Tilt the driver's cab; à Operating
Instructions
.
After maintenance work
• Lower the driver's cab; à Operating
Instructions
.
• Check that the lamp (1) on the CCS control unit has gone out – the driver's
cab is then locked.
Hydraulic oil
in litres (gal)
Designation
as per DIN 51502
GROVE part no.
1 (0.26) HVLP 04177395
Shell Tellus
S2 VX 15
