Maintenance work on the carrier
7.7 Transfer case
7 - 46 3 302 364 en Maintenance manual
GMK 4100L-1
25.11.2016

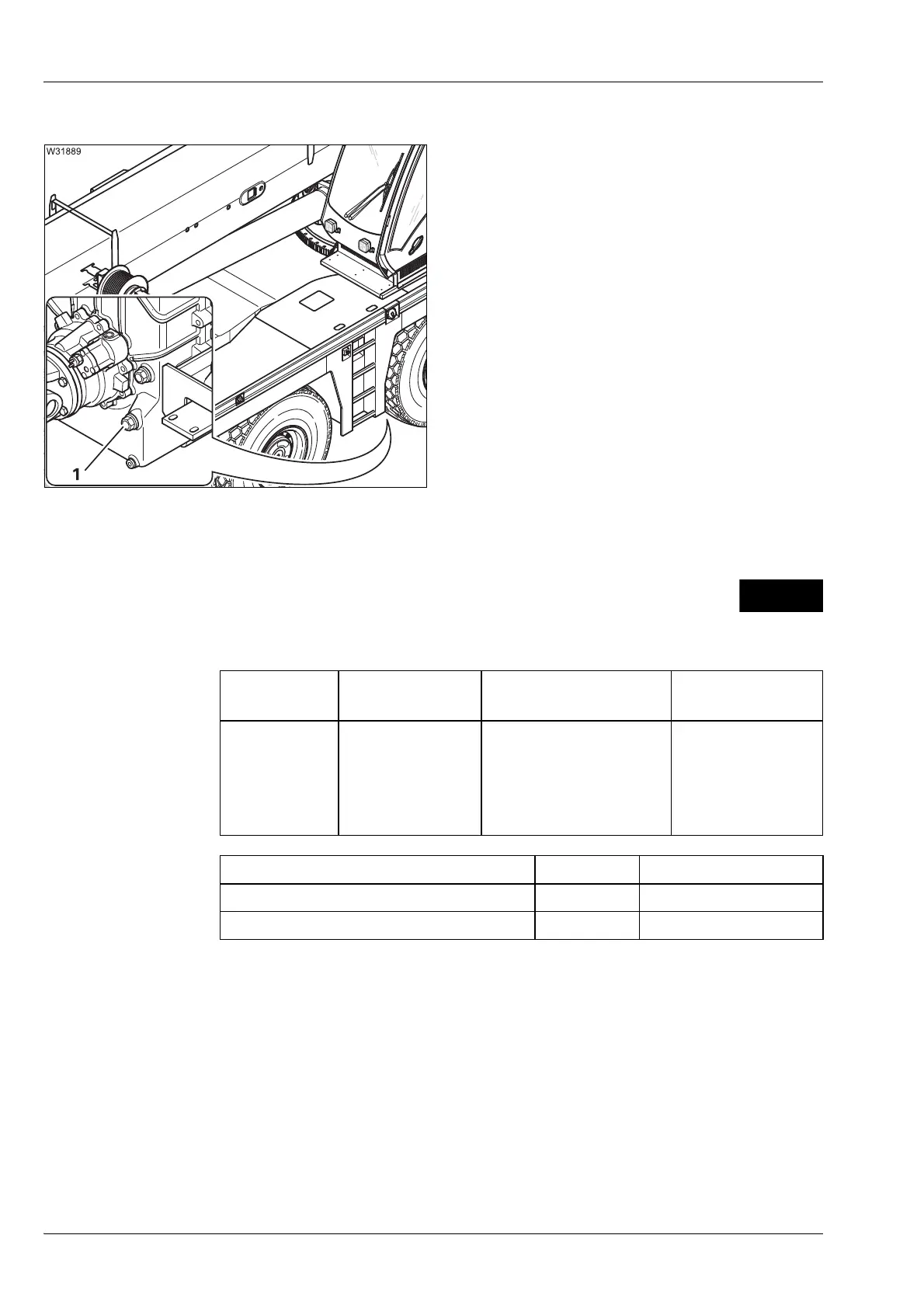

Checking
• Remove the drain plug (1).
• Check that the oil reaches the lower edge of
the opening.
• Fit a new gasket and tighten the screw.
If the oil level is too low
• Top up the oil; à p. 7 - 47.
7.7.3 Changing the oil
Oil, spare parts,
tools
– Receptacle, approx. 15 ltr (4.0 gal);
à p. 2 - 4.
Prerequisites – The truck crane must be raised on outriggers or parked over an
inspection
pit.
– The engine must be switched off and secured against unauthorised use;
à p. 2 - 3.
M 6
Gear oil
in litres (gal)
Designation
to DIN 51502
Specification
classification
GROVE part no.
14 (3.7)
with oil
cooler
C - LPF MIL-L 2
105 B
API-GL-5
Viscosity:
Hyp SAE
90
ISO - VG 220
00552891
Designation Quantity GROVE part no.
Gasket 16 x 20 Cu DIN 7603 1 00117134
Gasket 30 x 36 Cu DIN 7603 1 00117151
